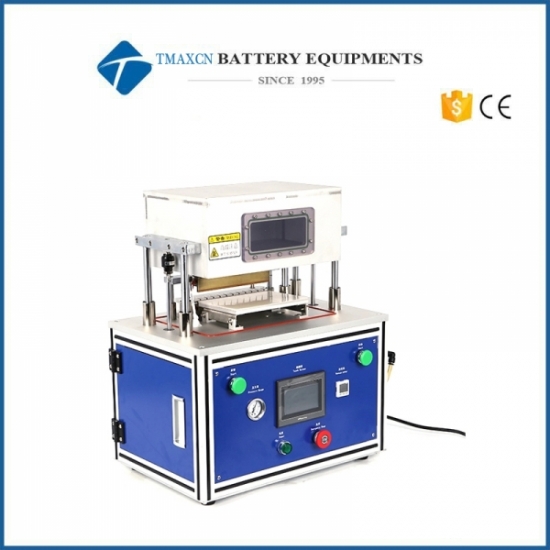

Lab Vacuum Hot Secondary Sealer Sealing Machine With Automatic Puncture Function
Model Number:
TMAX-FS200Type:
Heating Sealing MachineDimension(L*W*H):
L500mm*W500mm*H700mmNet Weight:
56kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

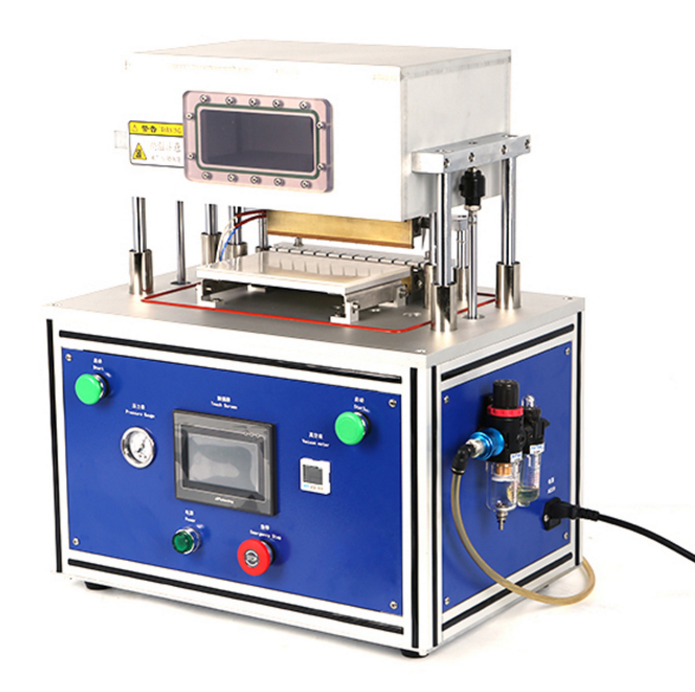

Lab Vacuum Hot Secondary Sealer Sealing Machine With Automatic Puncture Function
TMAX-FS200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.
Main feature
1.Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.
2.The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.
3.Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements
4.With automatic puncturing function, waste recovery unit.
5.Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements
6.Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.
7.Easy to operate, beautiful appearance, small size, light weight.

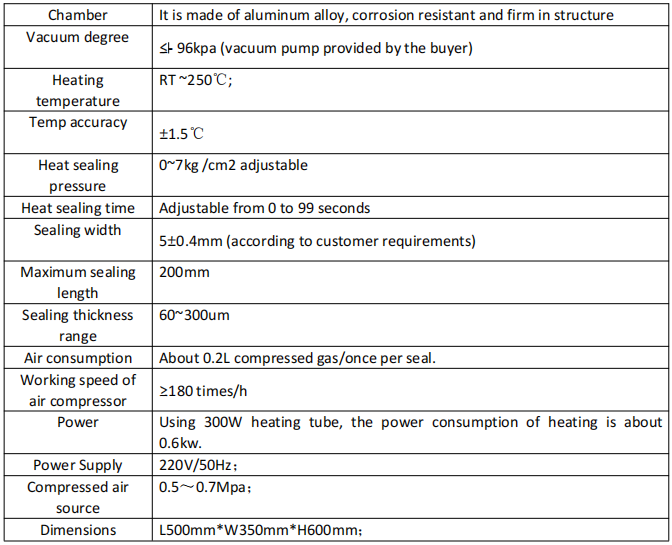

Specification
