Laboratory 100T Automatic Programmable Control Powder Press Machine

  • Model Number:

    TMAX-100T
  • Net Weight:

    About 240kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

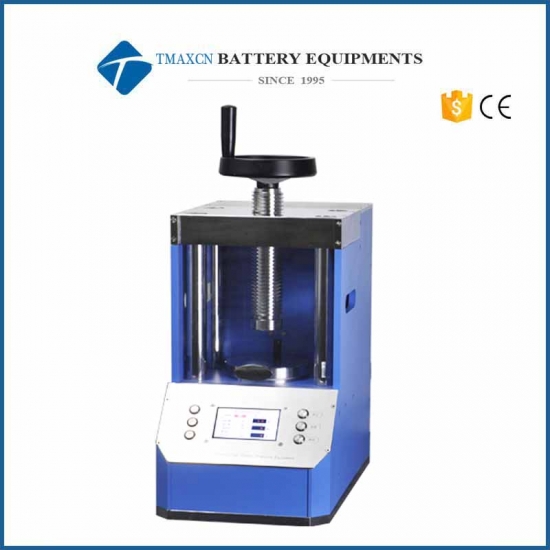

Laboratory 100T Automatic Programmable Control Powder Press Machine



Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


Advantages

1.Small size, light weight,No oil linkage, easy to carry.

2.High speed steel imported from Japan

3.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

4.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

5.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

6.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

7.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

8.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

9.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage

Automatic Press Machine

Technical Parameter

Product Name

Automatic Pressing Machine

Model No.

TMAX-100T

Pressing range

0~100t

Pressing method

Programmable control

Pressure keeping time

0~999s

Pressure exchange

Programmable automatic change

Panel

4.3”LCD Touch Panel

Limit switch

Oil tank reach limited height Pressure will relief automatically

Oil tank distance

50mm

Space dimension

185*250mm

Outer dimension

330*580*620mm

Power supply

AC220V 50Hz

Gross weight

240Kg



Pressure conversion

Actual pressure

System pressure

Double display pressure gauge

0.2[Tons]

1.25[MPa]



0.4[Tons]

2.51[MPa]

0.6[Tons]

3.77[MPa]

0.8[Tons]

5.03[MPa]

1[Tons]

6.28[MPa]

2[Tons]

12.5[MPa]

3[Tons]

18.8[MPa]

4[Tons]

25.1[MPa]

5[Tons]

31.4[MPa]

It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.


Press Machine Structure


Packaging of Product
