Laboratory 15T Manual Roller Press Machine for Powder Hydraulic Pressing

  • Model Number:

    TMAX-15T
  • Net Weight:

    About 35kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

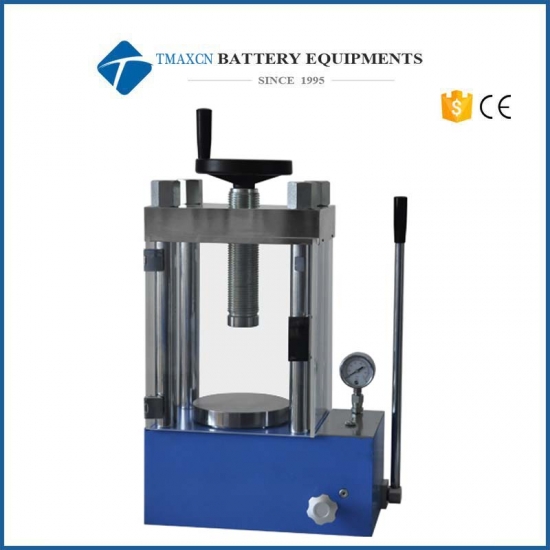

Laboratory 15T Manual Roller Press Machine for Powder Hydraulic Pressing


Product Application

Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


Small hydraulic press

Model No.

TMAX-15T

Press Range

0~15T

Piston Diameter

O.D 80mmm

Main Structure

All in one structure,don't have leak point

Pressure gauge

Pointer Pressure gauge

Max Piston distance

30mm

Protective

Organic glass

Pressure stability

< 1MPa/min

Working table diameter

O.D90mm

Column

 4 columns

Column gap distance

140*150mm

Outer dimension

245*175*390mm

Gross weight

38Kg

Manual Press Machine

Main Features

1.Small size, light weight,No oil linkage, easy to carry.
2.High speed steel imported from Japan
3.Digital display pressure gauge0.1MPa,Pressure control is more accurate.
4.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
5.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
6.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
7.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
8.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
9.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

Hydraulic Press Mold

Main Features

Working table with protective organic glass.

Machine Parts

Adjustable piston screw


Main Features

Working table with pressing die and pointer gauge
