Laboratory Battery Burning Tester Flame Resistance Test Machine For Lithium Battery Safety Testing
Model Number:
TMAX-RSSYCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

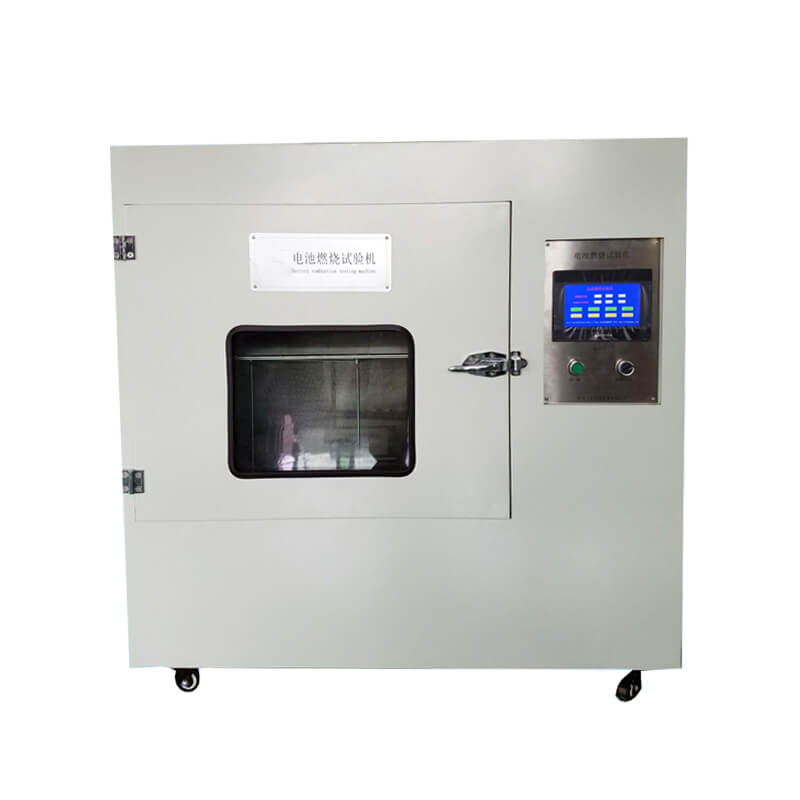

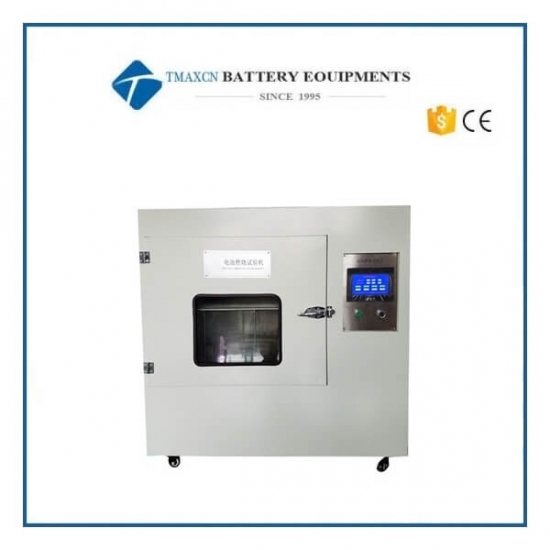

Laboratory Battery Burning Tester Flame Resistance Test Machine For Lithium Battery Safety Testing
Introduction
This machine is suitable for battery flame resistance test and is manufactured according to UL2054 and other test standards.
Specification
|
Burner |
Bunsen burner, the inner diameter of the tube mouth is 9.5mm and the length is about 100 mm |
|
Flame application time |
0~ 999.9 seconds ± 0.1 seconds |
|
Test hole surface diameter |
102mm |
|
Test cover width |
24 "(610mm), octagonal |
|
Test cover height |
12 "(305mm) |
|
Accessories |
Including burner and support frame, test table, standard metal mesh cover, standard metal mesh |
|
Equipment power supply |
1φ220V, 50/60HZ, 10A |
|
Other |
Automatic ignition, automatic control of the test process. |
If you customize more than six machines, you can integrate the machines into a comprehensive console
