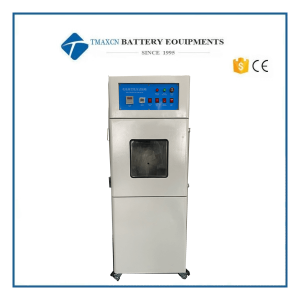

Laboratory Battery Simulation Low Voltage High Altitude Tester Chamber Machine For Lithium Battery Safety Testing

Model Number:
TMAX-GKDYSY
Compliance:
CE certificate
Warranty:
One Year limited warranty with lifetime support
Place of Origin:
China
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Laboratory Battery Simulation Low Voltage High Altitude Tester Chamber Machine For Lithium Battery Safety Testing

Introduction

Battery low voltage (high altitude) simulation test, all tested samples are tested under negative pressure of 11.6kPa (1.68psi). The final result of the test requires that the battery cannot explode or catch fire.

Features

The box inside the box is made of high-quality SUS201# stainless steel plate material,

The front door of the test box adopts a strengthened design. The left side of the door is equipped with an exposed hinge, and the right side is equipped with a strong door lock, which effectively blocks the door. The hinge and lock use strengthened equipment special standard parts.

The bottom is equipped with 4 casters, which is convenient to move and fix.

This machine adopts PID control system, which is convenient and intuitive, and can easily control each input test parameter.

Explosion-proof glass window with explosion-proof film, double protection;

A rubber sealing ring is installed between the working room and the glass door to ensure a high degree of vacuum in the box;

The vacuum value can be automatically set, and the vacuum can be automatically supplemented.

Technical parameter

Product name	Low pressure
Model number	TMAX-GKDYSY
Temperature range	Normal temperature (The requirements must be met by controlling the internal temperature of the laboratory, that is, the temperature of the laboratory must reach this range (20℃+5℃) to ensure that the temperature in the low-temperature box is within this range)
Display method	PID display
Vacuum degree	133Pa
Accuracy	0.1KPa
Adjustment range	-5 ~ -100Kpa (negative pressure gauge)
Unit	KPa
Time range	99H59M59S (can be set)
Inner box size	W400D400H400 mm
Inner box material	High-quality SUS201# stainless steel plate material, thickness 3MM
Outer dimension	W650D550H1300 mm
Outer material	SECC steel plate, fine powder baking varnish treatment, thickness of 1.5mm
Box door	Single door, open observation window, cold handle door lock
Accessibility	Safe explosion-proof: The door is equipped with 10mm thick tempered explosion-proof glass; Reinforced ribs are welded inside the door to make the door stronger and increase its strength The external link hinge door lock adopts high-strength standard accessories. It is safe and easy to install and replace
Window size	300*300 mm(10mm thick tempered explosion-proof glass)
Power supply	AC 220V ± 10%, 50Hz
Power	1KW
Weight	About 200kg

If you customize more than six machines, you can integrate the machines into a comprehensive console
