Laboratory Electric Vacuum Mixer with Water Cold Tank

  • Model Number:

    TMAX-JB
  • Compliance:

    CE certificate
  • Warranty:

    two years warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

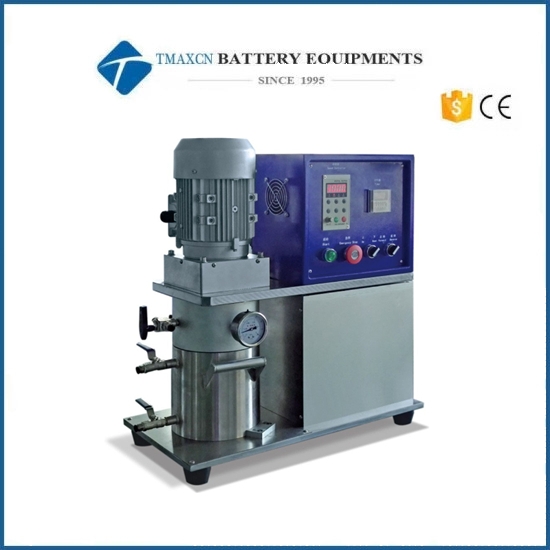

Laboratory Electric Vacuum Mixer with Water Cold Tank

This product is a high-efficiency equipment which integrates vacuum mixing and dispersion. It is suitable for the mixing process of anode and cathode slurry in battery experiment, as well as the mixing of powdery materials and various ceramics. The time, speed and rotation direction can be set by the programmable controller.


Main features

*Adopting industry leading soft sealing technology, it can keep - 0.098mpa for more than 24 hours;

*Using precision guide pillar support, cylinder automatically push can body open and close, humanized design, precision and high efficiency;

*Double-layer stainless steel container, the barrel body is refined with high-quality 304 stainless steel, after finishing by lathe, it is polished by precision automatic polishing machine to ensure high precision;

*The speed range is 0 ~ 2800rpm, and the time, speed and rotation direction are set by controller.

*The mixing motor adopts the gearbox frequency conversion adjustment, and can select different speed and torque according to different process and viscosity;

*The double dispersing paddle design makes the material churn up and down and around, and makes the slurry mix quickly and evenly;

*Small size can save space;


Specifications

Model

TMAX-JB-1

TMAX-JB-2

Effective volume of container

1L

2L

Container size

I.D.Φ100mm×O.D.Φ160mm×H140mm

I.D.Φ125mm×O.D.Φ175mm×H170mm

Rated power

0.75KW220V/110V

Mixing speed

02800rpm adjustable

Vacuum degree

Max. -98KPa(vacuum pump is not included)

Container material

Double-layer stainless steel container implemented with water cooling jacket

Container opening and closing mode

The cylinder drives the upper cover up and down

Time control

With timing function, the time can be set arbitrarily from 0 to 99hour

Machine weight

90kg

100kg



vacuum mixer



 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.





1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
