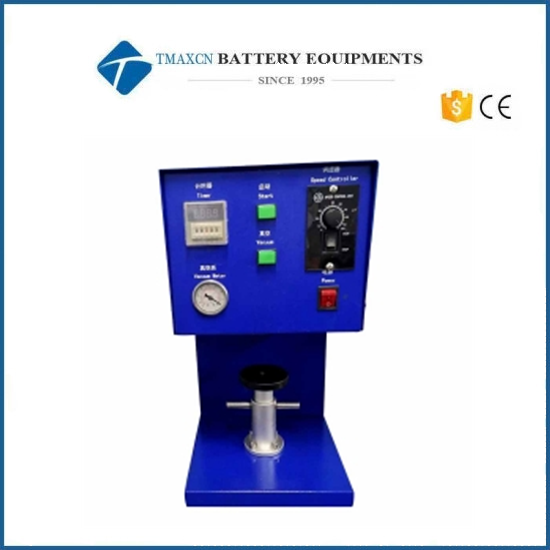

150 - 500 ML Vacuum Mixer Machine for Lithium Battery Research
Model Number:
TMAX-ZKJBDimension(L*W*H):
330 mm x310 mm x 510 mmNet Weight:
20kgCompliance:
CE CertificateWarranty:
Two year limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
150 - 500 ML Vacuum Mixer Machine for Lithium Battery Research
TMAX-ZKJB is designed to produce coating slurry by mixing the small batch of chemical and compound (500 ml Max., up to 30000mPa.s) under vacuum to remove gas bubble and protect the sample from oxidation. It has a built-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed @ 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab.
SPECIFICATIONS:
|
Voltage Input |
110V or 220V AC Power plug |
|
Power |
150W |
|
Rotary Speed |
320 rpm |
|
Mixing Container |
1. Optional 150ml to 500ml stainless steel containers. |
|
Vacuum pump & Vacuum Level |
Built-in single stage vacuum pump |
|
Mixing Time |
0~9999 Minutes Adjustable |
|
Dimensions |
330 mm x 310 mm × 510 mm |
|
Compliance |
CE Certified |
|
Warranty |
Two years limited warranty with lifetime technical support |
|
Net Weight |
20kg |
