Laboratory Stainless Steel Vacuum Glove Box With Vacuum Flange & Gauge

  • Model Number:

    TMAX-GBV
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

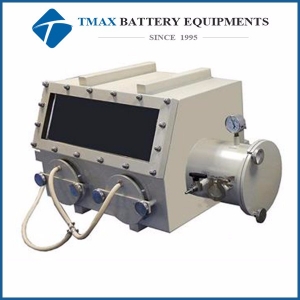

Laboratory Stainless Steel Vacuum Glove Box With Vacuum Flange & Gauge


The stainless steel vacuum glove box is a laboratory equipment that achieves vacuum environment by repeatedly vacuuming/filling high-purity inert gas into the tank. Also known as glove boxes, inert gas protection boxes, drying ovens, etc.


1) The whole box is made of stainless steel and reinforced, so it is strong and corrosion resistant and easy to clean;

2) The operation box is made of tempered glass with a wide viewing angle and no dead angle;

3) The lighting and the porous socket in the box can be locally heated or humidified by electric furnace;

4) The operating gloves are sealed and durable with thick latex gloves;

5) The sealing device has novel design, reliable sealing and convenient opening;

6) The two doors of the transition chamber solve the problem of repeated vacuuming of the main tank.

7) After the vacuum is exhausted, a high-purity inert gas can be charged into the chamber.


Specifications

Model

TMAX-GBV-3

                   Box material

Stainless steel 304

Box material thickness

6mm

Box size(mm)

1200*700*950

Numbers of gloves(p)

2

Inside  rack

On the back of the box, double layer, can be moved up and down

        Diameter of glove mouth

196mm

Glove mouth cover material

Stainless steel

Working side

Single

Front-panel

Tempered glass panel 19mm

Light

Super bright white LED fluorescent strip

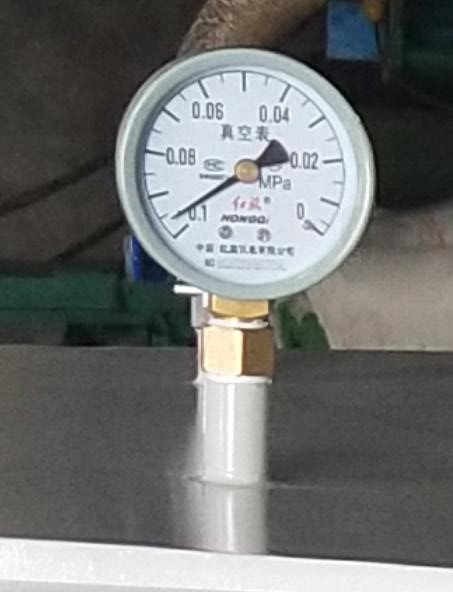

Vacuum gauge

0MPa~-0.1Mpa  (2.5 vacuum gauge)

 Acceptable gas pressure

-0.1mpa

Material of transition cabinet

Stainless steel 304

Transition cabinet thickness

3mm

Transition cabinet feeding mode

Slide tray feeding, removable

Transition cabinet size

¢350*400mm

Leakage rate

<0.05VOL%/h

Door opening on left (optional)

450*600

Universal support (optional)

900mm

Vacuum pump (optional)

4L/s


Other sizes:

Transition chamber Vacuum degree

Box Vacuum degree

Excessive room rule Unit: mm

Case size Unit: mm

Hold time

Gas purity usage (99.95% or more)

 Glove diameter Unit: mm

100pa

100pa

φ200×280

600×500×500

12 hours or more

Nitrogen gas

φ145

100pa

100pa

φ280×350

800×650×650

φ145
