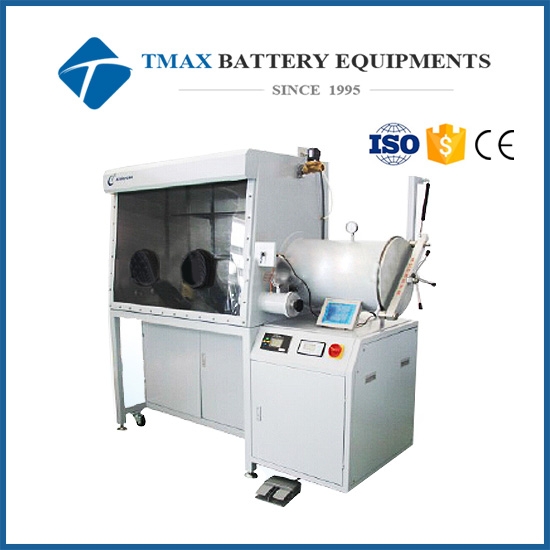

Laboratory Vacuum Glove Box With Gas Purification System for Lithium Polymer Battery Producing
Model Number:
TMAX-GB800SDimension(L*W*H):
1200*800*930mmCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Laboratory Vacuum Glove Box With Gas Purification System for Lithium Polymer Battery Producing
1 Glove box is a kind of equipment with anhydrous and anaerobic environment.
2 The device is mainly composed of display system, transfer chamber, vacuum system,
control system, box, circulation purification regeneration system components.
|
Main technical parameters |
TMAX-GB800S |
|
Type |
Single section single station |
|
Dimension(L*W*H) |
SUS304 stainless steel plate, 1200*800*930mm |
|
Total dimension(L*W*H) |
SUS304 stainless steel plate, 1915*830*1830mm |
|
Big transitive cabin |
SUS304 stainless steel, DN385*588mm |
|
Small transitive cabin |
SUS304 stainless steel, DN150*350mm |
|
Gloves |
2 pcs, butyl material, thickness : 0.4mm |
|
Gloves port |
DN215mm, Acid and alkali resistant material PPS |
|
Purification system |
Single purifying column, With the remove of water, oxygen function |
|
Control system |
6 inch color touch screen, SIEMENS |
|
Vacuum pump |
4L/S |
|
Pressure sensor |
-2500~2500Pa, Touch screen |
|
H2O probe |
0~1000ppm,Touch screen, MICHELL |
|
O2 transmitter |
0~1000ppm,Touch screen, America AII |
|
Organic solvent filter |
21 L |
|
Working gas |
N2,Ar,He |
|
Source voltage |
220V, 50HZ, 3000W |
