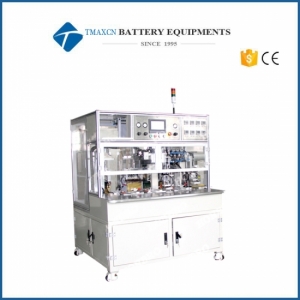

Large Four Station Battery Heat Sealing Machine
Model Number:
TMAX-A-012Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

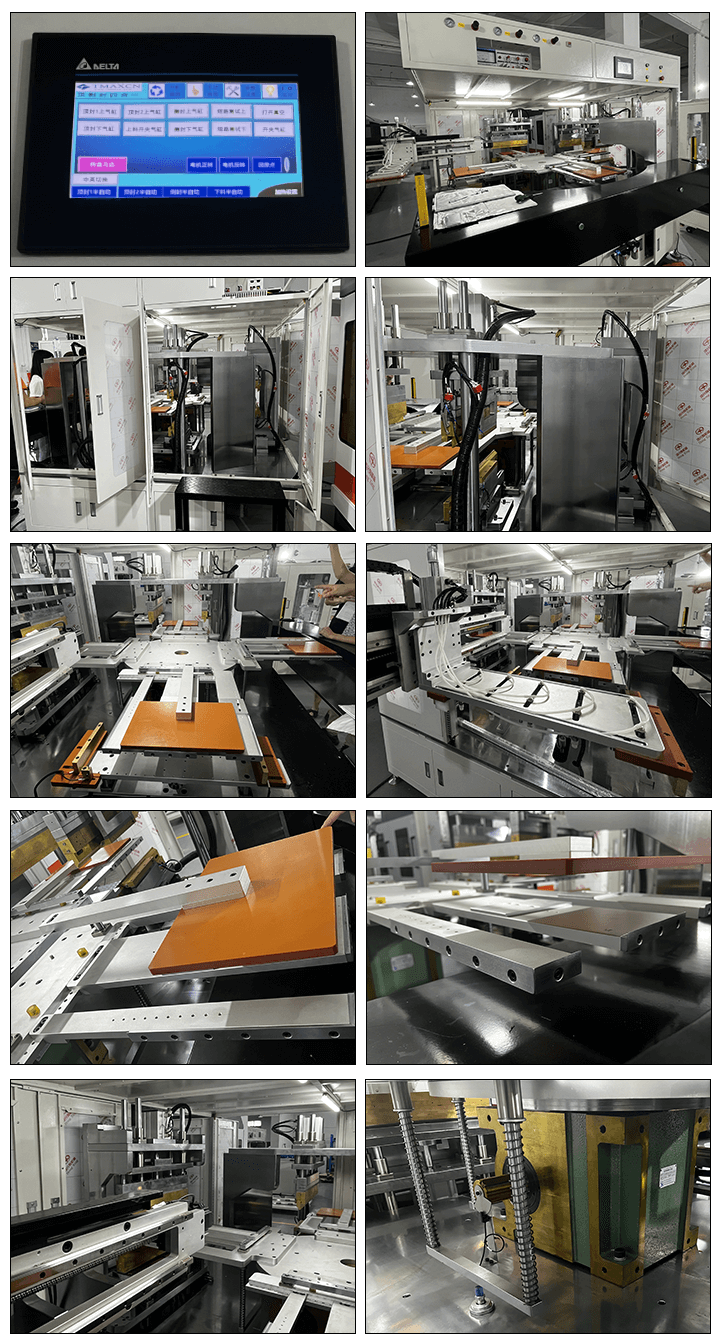

Large Four Station Battery Heat Sealing Machine
Functions
● This equipment is suitable for the flexible packaging lithium batteries semi-automatic packaging. Mainly included the top sealing, lateral sealing, Angle sealing, insulation test, fine exactly the side sealing, and other functions.
Features
● Transfer jig, servo drive;
● Under the top sealing, side seal head is fixed, the seal is more stable;
● Insulation test can be adjusted independently;
● Top sealing, lateral sealing head can auto correct;
● Battery secondary positioning, exact edge sealing side;
● Batteries transfer, electric driving.
Technical Parameters(for reference)：
|
ITEM |
DCF150 |
DCF200 |
|
Measure |
1300*1650*1580mm(L*W*H) |
1350*1850*1580mm(L*W*H) |
|
Weight |
About 1T |
About 1T |
|
Power |
AC220V/50HZ, 3.5KW |
AC220V/50HZ, 3.5KW |
|
Air source |
≧0.6Mpa,100L/Min |
≧0.6Mpa,100L/Min |
|
Applicable range |
Top seal65-150mm, side seal50-145mm |
Top seal80-190mm, side seal60-180mm |
|
Capacity |
100-300EA/H |
100-300EA/H |
|
Action |
≧99% |
≧99% |
