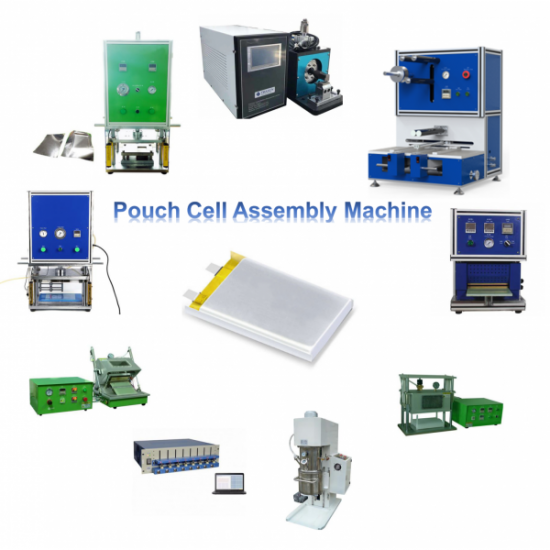

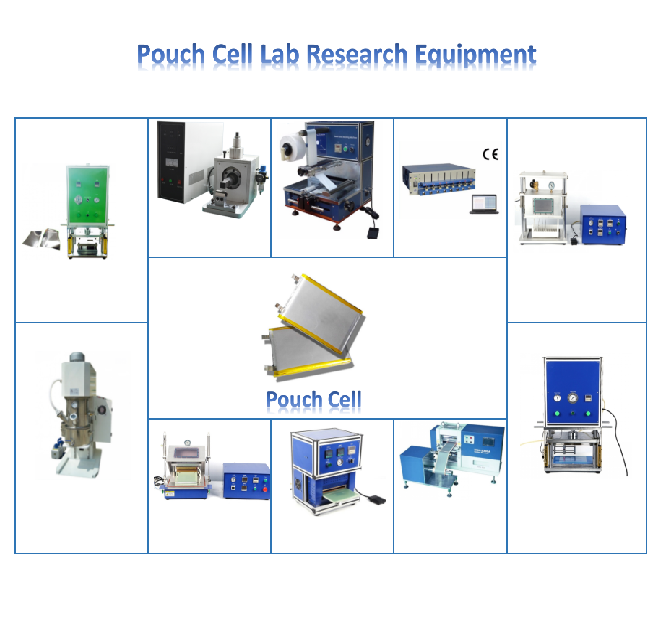

Lithium Ion Pouch Cell Research Lab Assembly Machine Line for Pouch Battery Fabrication

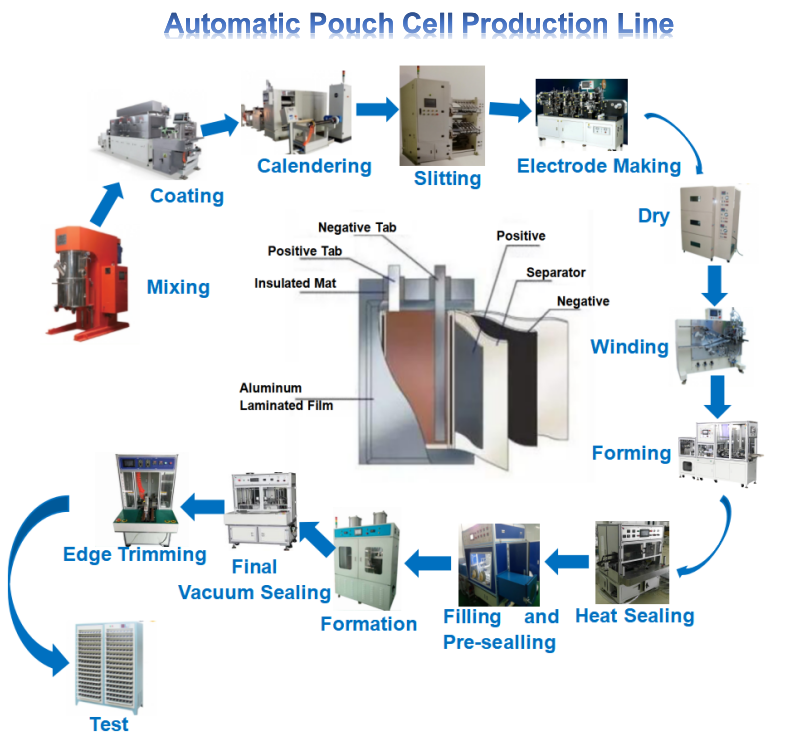

Process

Item

Product Name

Description

Web address

Powder processing

Furnace

Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...

https://www.battery-equipments.com/lab-furnaces_c24.html

Slurry vacuum mixing

Mixer

Compact Vacuum Mixer With Vibration Stage & Two Containers (150 & 500ml)

With 150ml and 500ml container, Rotary Speed:320rpm

https://www.battery-equipments.com/Liquid-Materials-Vacuum-Mixer-Machine-with-Vibration-Stage-Two-Containers-50-150ml-_p95.html

Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container

Dual-Shaft, 500ml container, Rotary Speed:600rpm

https://www.battery-equipments.com/Lab-Planetary-Vacuum-Mixer-Machine-For-Battery-Lab-Research_p96.html

Electrode coating

Coater

Laboratory Electric Heat Film Coating Machine For Electrode Coater With Dryer

Effective coating area:100*250mm

https://www.battery-equipments.com/Compact-Tape-Casting-Coater-with-Vacuum-Chuck-Selectable-Heating-Functions_p520.html

200*300mm

250*550mm

250*800mm

Micrometer Adjustable Film Applicator With Digital Display-100mm Width

With digital gauge,coating width:100mm

https://www.battery-equipments.com/100-mm-width-Battery-Micrometer-Adjustable-Blade-Film-Applicator_p346.html

Lab Compact Film Vacuum Coating Machine with 300mm Width Doctor Blade

Bar coating, coating width:100mm

https://www.battery-equipments.com/Lab-Wire-Bar-Coater-Coating-Machine_p970.html

Electrode pressing

Press Machine

Electric Roller Press Machine With Variable Speed

100*100(dia*width,mm),electric,with heating function

https://www.battery-equipments.com/100mm-400mm-width-lithium-battery-hot-roller-for-lab-research_p14.html

100*200

100*300

100*400

Lab Small Pressing Calender Rolling Machine

100*100(dia*width,mm),maual,without heating function

https://www.battery-equipments.com/200MM-Width-Lab-Small-Manual-Rolling-Calendering-Machine_p1016.html

100*200

100*300

Electrode cutting

Die cutter

Lab Electrode Die Cutter For Pouch Cell Electrodes Cutting

Suitable for small size electrode cutting
Max. customized size:140mm L x 80mm W
Including one customized cutting die
190USD per extra cutting die

https://www.battery-equipments.com/Pneumatic-Electrode-Die-Cutter-Machine-with-A-Pair-Die-for-Pouch-Battery-Research-MSK-180S_p161.html

Lab Electrode Die Cutter For Pouch Cell Electrode Sheet With Two Size Range Optional

Suitable for various size range electrode cutting
Max. customized size:200mm(L) * 300mm(W)
Including one customized cutting die
190USD per extra cutting die

https://www.battery-equipments.com/Pouch-Cell-Electrode-Die-Cutter-Machine-for-battery-lab_p122.html

Electrode stacking

Stacker

Laboratory Electrode Stacking Machine For Pouch Cell Production Line

Suitable for various electrode size stacking, manual

https://www.battery-equipments.com/Semi-auto-Battery-Electrode-Stacker-Machine-For-Pouch-Cell-Electrodes_p156.html

Semi-Automatic Stacking Machine For Pouch Cell Electrodes

Max suitable electrode size:200mm*200mm

https://www.battery-equipments.com/Semi-automatic-Electrode-Stacking-Machine-for-Pouch-Cell-Making_p104.html

Tab Welding

Ultrasonic spot welder

Al Tab Ni Tag Ultrasonic Welding Machine

2000W, 40kHz, max.40 Layers

https://www.battery-equipments.com/Au-Fe-Ni-Ag-Ultrasonic-Metal-Spot-Welder-With-Touch-Screen-Controller-For-Pouch-Cell_p826.html

3000W,  40kHz, max.60 Layers

Case forming

Forming machine

Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films

Including one customized forming die
1010USD per extra forming die Max customized size：80mm*80mm

https://www.battery-equipments.com/pouch-forming-machine_c11.html

Including one customized forming die
1120USD per extra forming die Max customized size：120mm*120mm

Top&side welding

Hot sealing machine

Compact Heating Sealer For Sealing Laminated Aluminum Case Of Pouch Cells

With rubber sealing blade, suitable for sealing with tab, sealing length:200mm

https://www.battery-equipments.com/200-400mm-Width-Pouch-Cell-Heat-Sealer-Machine-for-Pouch-Cell-Top-and-Side-Sealing_p59.html

Sealing length:300mm

Electrolyte injection

Electrolyte filing machine

Bottletop Electrolyte Digital Dispenser With 32oz Boston Round Glass Bottle: 1- 10 Ml Adjustable

Manual operation, digital display

https://www.battery-equipments.com/10ML-Bottle-Top-Dispenser-Dispensette-With-32oz-Boston-Round-Glass-Bottle_p1017.html
