Split-able Pouch Cell Testing Equipment with Optional Size for Lab Research

  • Model Number:

    Tmax-EQ-SPC
  • Dimension(L*W*H):

    89 mm H x 75 mm W x 53 mm Thick
  • Net Weight:

    3 kg
  • Compliance:

    CE certificate
  • Warranty:

    1 Year with lifetime support
  • Delivery Time:

    20 days
contact now
DESCRIPTION

Split-able Pouch Cell Testing Equipment with Optional Size for Lab Research

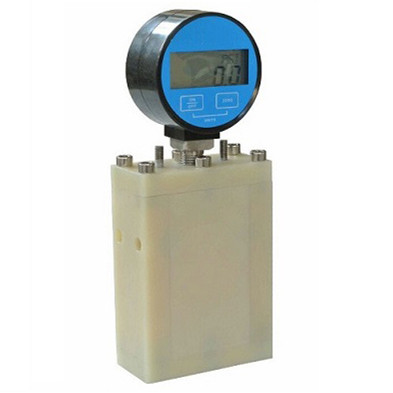

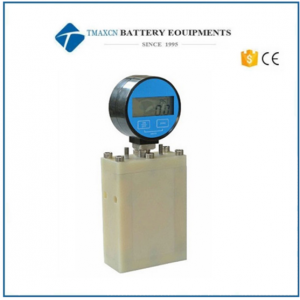

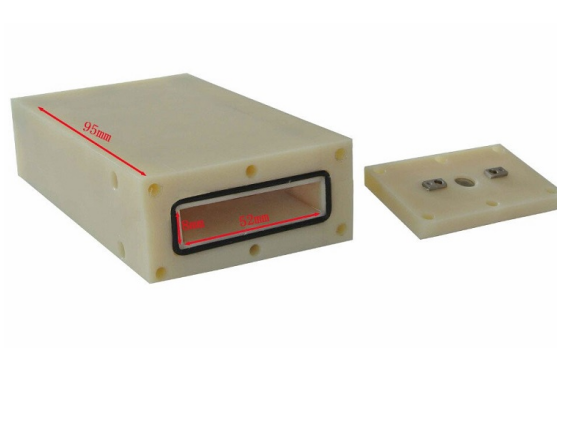

EQ-SPC-Series are splittable pouch cells made of Nylon or Peek, which are designed for testing pouch cell with max electrode dimension of different size. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost effectively.

Specification

Design Fearture

1. Easy assembling by only four cap mounting screws

2. Easy to separate after test for microstructure analysis

3. Space saving, compact design allows you put it into the glove box

Material
(Please select at options bar)

1. Nylon or PEEK (Poly Ether Ether Ketone) selectable from product options bar

2. Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC  and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

3. Body: PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings

Model

EQ-SPC-654519

EQ-SPC-804019

EQ-SPC-955208

EQ-SPC-30529525

Inside chamber Dimensions

65mm H  x  45mm W x19 mm Thick



80 mm H  x 40mmW x 19 mm Thick



95 mm H  x  52mm W x 8 mm Thick



305 mm H  x  295.5 mm W x 25.4 mm Thick

Suggested Max. electrode area

60mm H x 40 mm



75 mm H x 35 mm



80mm H x 50mm



300mm H x 395mm



Outside Case Dimensions

89 mm H x 75 mm W x 53 mm Thick



93 mm H x 85 mm W x  55 mm Thick

120mm H x 85 mm W x 40mm Thick



317.5 mm H x 323 mm W x 86 mm Thick



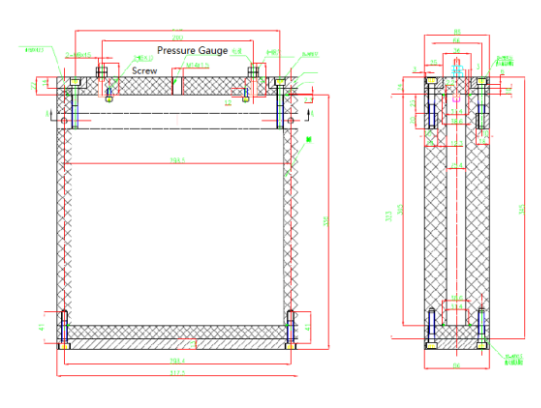

Structure

1.One digital pressure gauge installed on top to monitor pressure.  You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell

2.Two stainless steel contacts to connect anode and cathode by the screw.

3.Max. working temperature:  80°C.for Nylon, and 120oC for PEEK

4.Max.workingPresssure: 36psi (0.25MPa) for Nylon and 60psi (0.4Mpa) for PEEK

Application Note

1.In order to make metal air pouch cell, you can drill holes in the case. We can help you do that at extra cost

2.You may use TMAX die cutter to prepare electrode via layer by layer or make winding type pouch cell electrode

3.You may need an ultrasonic welder to welding electrode tape  to connect to the split cell, you can find this machine in our website.
