Microporous Filter Materials Pure Titanium Foam Sheet
Model Number:
Tmax-Ti-1Compliance:
CE certificatePlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

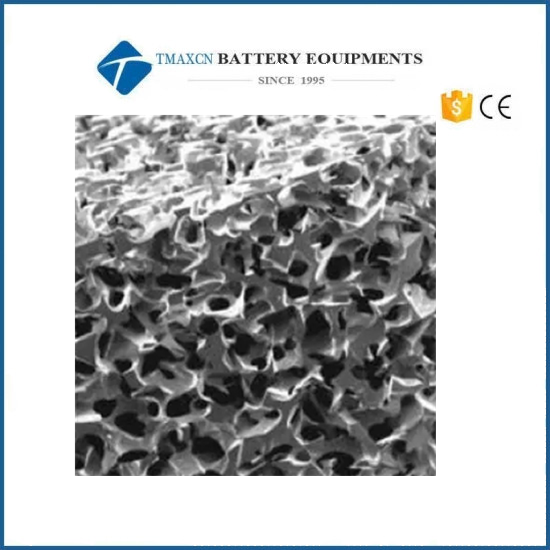

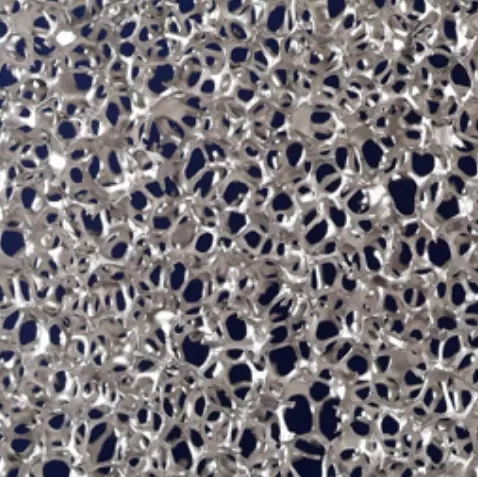

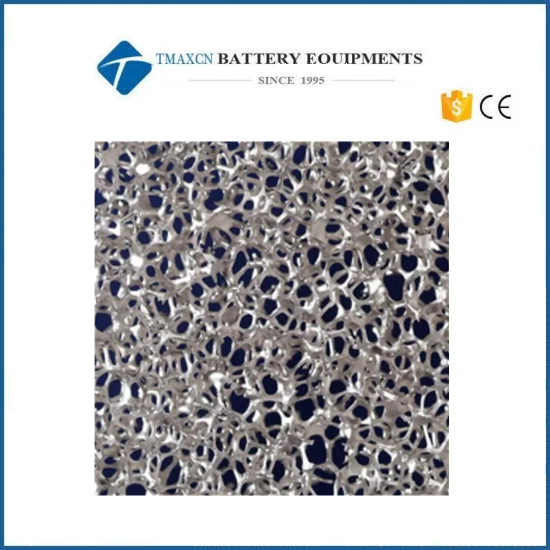

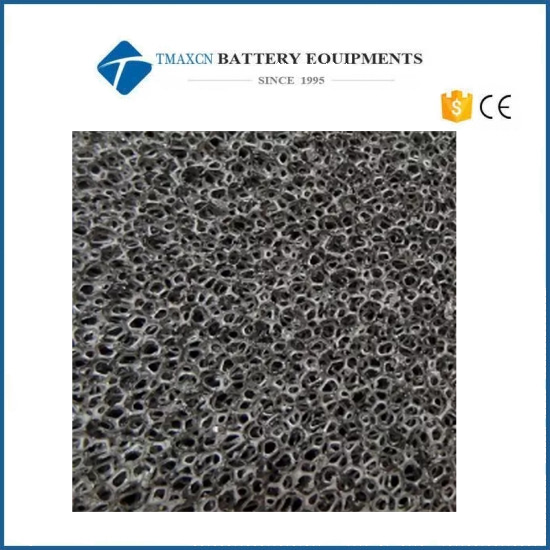

Microporous Filter Materials Pure Titanium Foam Sheet
Application area
Applicable to used as electrolytic electrode, it can maximum limit the increase of electrolytic area and increase the speed of gas evolution.
Features
1. Uniform structure, narrow pore size distribution and high separation efficiency.
2. High porosity, low filtration resistance and high permeability.
3. High temperature resistance, generally can be used below 280 degrees.
4. It has good chemical stability, acid and alkali corrosion resistance and antioxidant properties.
5. No particulate peeling, no secondary contamination of raw liquor, which meets the requirements of food hygiene and pharmaceutical GMP.
6. It has good mechanical properties, can be filtered by pressure and can be filtered by suction, and is easy to operate.
7. Low pressure difference, small area and large flow.
8. It has strong antimicrobial ability and does not interact with microorganisms.
9. The forming process is good. The whole length without welding can reach 1000 mm.
10. On-line regeneration, easy cleaning and long service life (usually several times as long as the membrane filter element)
Specifications
Foil Dimension |

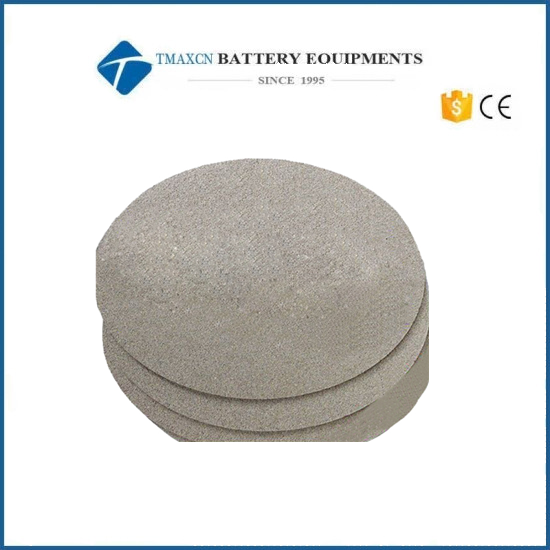

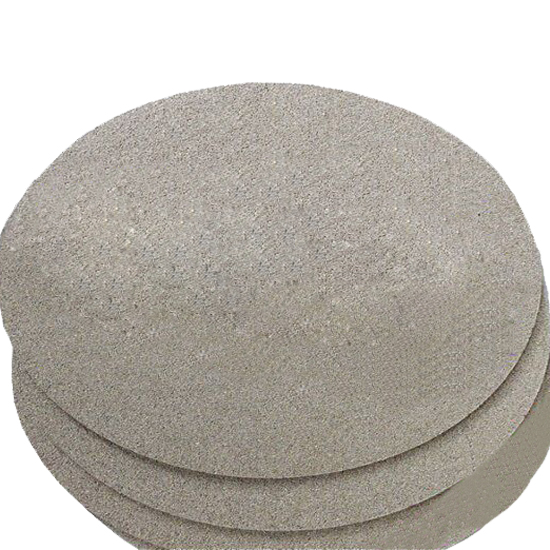

Diameter 100mm round sheet or customized as request |
Temperature resistance |
800℃ |
Color |
Light grey |
Excessive precision (The aperture) |
20um-100um |
Used in pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry and gas purification fields. Is one kind has broad prospects for development of new materials. |
