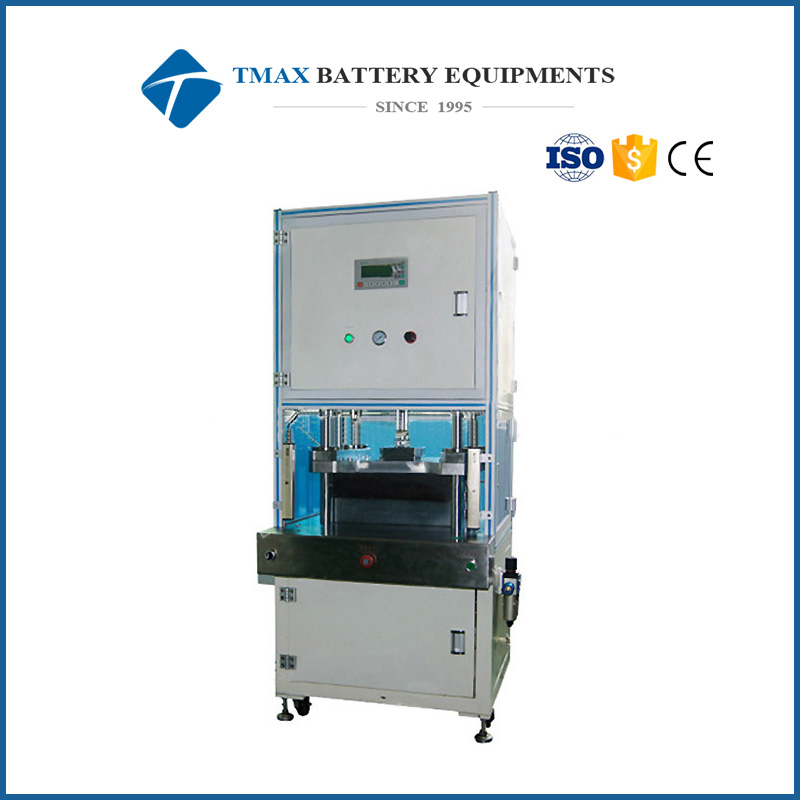

Pouch Cell Case/Cup Forming Machine for Aluminum Laminated Film Forming

  • Model Number:

    TMAX-YXY-SMP
  • Type:

    Punch Forming Machine
  • Dimension(L*W*H):

    150mm (L) x 120mm (W) x 6mm (H)
  • Net Weight:

    120 kg (265 lbs)
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
Email:David@battery-equipments.com
Wechat:13506084915
DESCRIPTION

Pouch Cell Case/Cup Forming Machine for Aluminum Laminated Film Forming



Aluminum Laminated Film Forming Machine

1.for prepare polymer cases in making pouch cell
2.die size 85mm(L) x 50mm(W) x 3/4/5/


Aluminum Laminated Film Forming Machine for Pouch Cell Case making


Aluminum Laminated Film Forming Machine introduction:

TMAX-YXY-SMP is a CE Certified cup forming machine used in the production line of making pouch cell batteries. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, standard die size 85mm(L) x 50mm(W) x 3/4/5/6 mm adjustable depth (spacers is included in standard package) to directly match the electrodes cut by the electrode cutting machine.


Aluminum Laminated Film Forming Machine spec:

Working Voltage

110 - 240V AC, single phase

Max. Power Consumption

200 W

Air Pressure Requirement

0.4 - 0.6 MPa (Air Compressor is not included.)

Standard Die Size

85mm (L) x 50mm (W) x 3/4/5/6 mm(H), which perfectly fits the electrodes cut by GN-MSK-180

Customized Die Size

Note that the max. die size is 150mm (L) x 120mm (W) x 6mm (H)

Max. Cup Depth to Punch

< 6.0 mm

Max. Punching Pressure

5 metric tons

Stroke Frequency

< 8 seconds per trial

Aluminum Laminated Film Thickness

0.11 - 0.20 mm

Product Dimensions

460mm(L) x 320mm(W) x 925mm(H)

Warranty

One Year limited warranty with lifetime support

Net Weight

120 kg (265 lbs)
