Pouch Cell Case Punching/Forming Machine for Aluminum-Laminated Films EQ-MSK-PN120

  • Model Number:

    EQ-MSK-PN120
  • Type:

    Pouch Forming Machine
  • Dimension(L*W*H):

    62mm (L) x 46mm (W) x 3/4/5/6 mm(H)
  • Net Weight:

    45kg
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

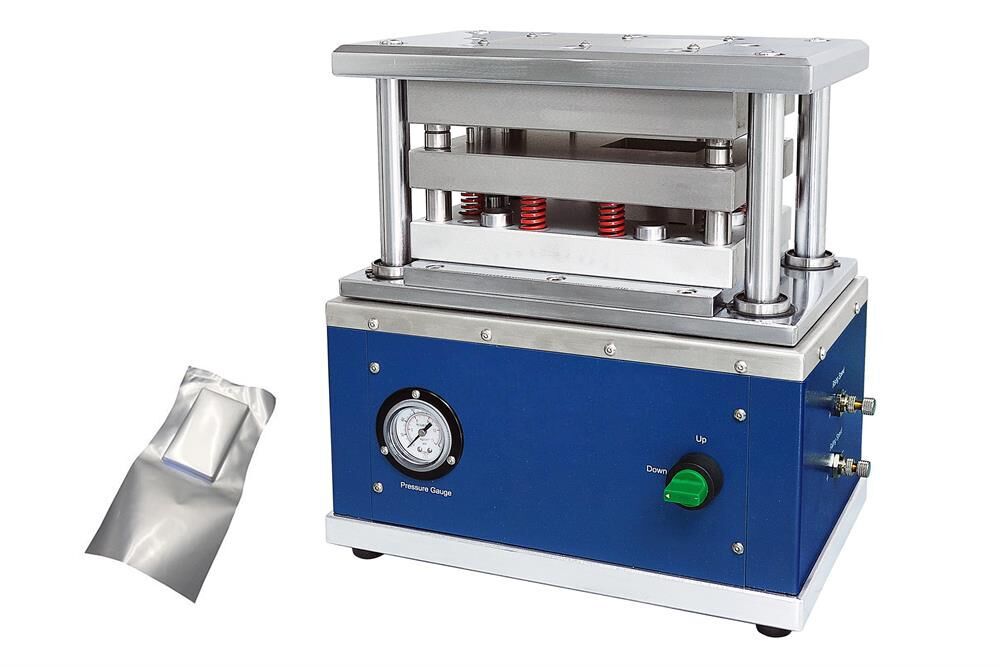

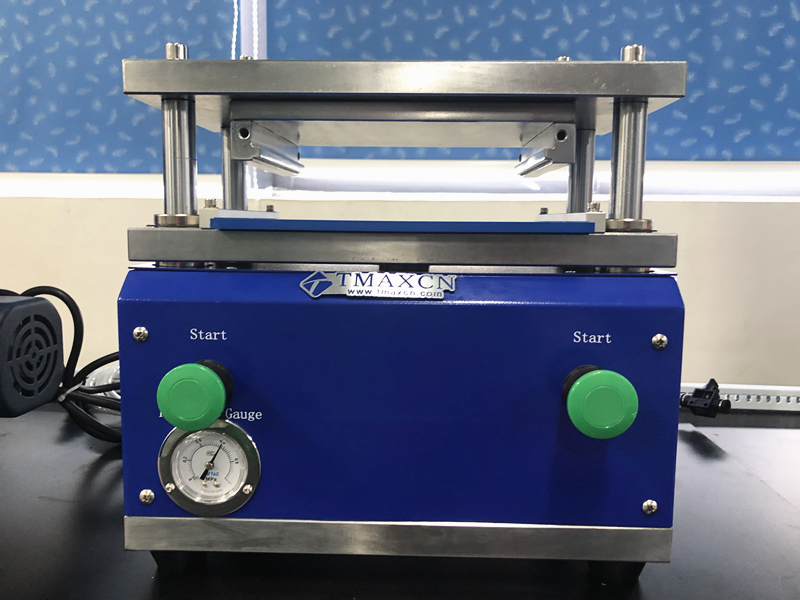

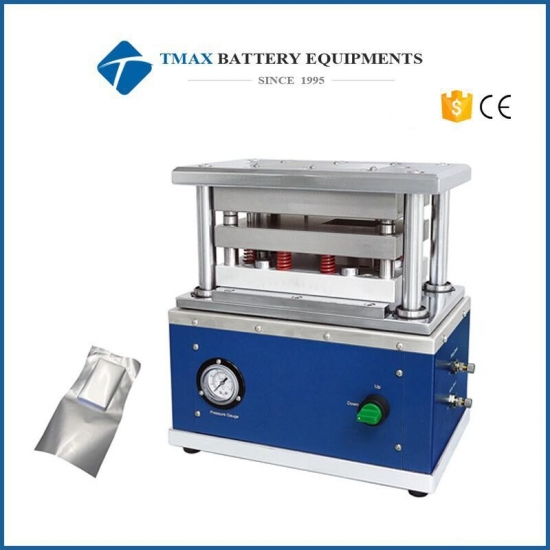

Pouch Cell Case Punching/Forming Machine for Aluminum-Laminated Films EQ-MSK-PN120


MSK-PN120 is a compact gas-driven Aluminum Laminated Films pouch case forming machine for pouch cell fabrication laboratory. To ensure continuity and compatibility for customer's research, MSK-PN120 fits the electrodes cut by  electrode cutting machine. The adjustable depth (spacers set is included in standard package) allows the formed case to fit electrode stacked in different height.


SPECIFICATIONS:

Features

Pure pneumatic press with adjustable press speed and pressure.
No electrical parts.

Standard Die Size

One standard die is included:
62mm (L) x 46mm (W) x 3/4/5/6 mm(H), which perfectly fits the electrodes cut by

Customized Die Size

It can be Customized die

Air Pressure Requirement

0.8 - 1 MPa
Air Compressor is not included

Max. Cup Depth to Punch

< 6.0 mm
Precision: ±0.05mm

Max. Punching Pressure

1 metric tons

AL Laminated Film

  • Thickness of Aluminum Laminated Film:  0.10 - 0.20 mm acceptable
  • Please click the picture to the left to order Aluminum Laminated Film.

Warranty

  • Two Year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Product Dimensions

370mm(L) x 245mm(W) x 336mm(H)

Net Weight

45kg

Die Installation Warning

  • The tolerance of precision die is very little; Misalignment will result die damage. Following operation manual when installing the die.


  Punch Forming Machine

forming machine

pouch cell assembly machine




 battery equipment
