Pouch Cell Electrolyte Diffusion & Degassing Chamber

  • Model Number:

    TMAX-JZ200
  • Type:

    Electrolyte Diffusion
  • Dimension(L*W*H):

    500 x 400 x 700mm It can be customized
  • Net Weight:

    65Kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    14 days
contact now
DESCRIPTION

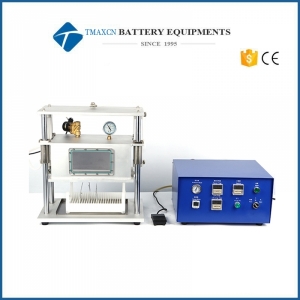

Pouch Cell Electrolyte Diffusion & Degassing Chamber


TMAX-JZ200 electrolyte diffusion & degassing chamber is specifically designed for professional Pouch Cell Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries(especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

SPECIFICATIONS:

Inner Chamber Size

L350mm*W250mm*H200mm

Product Dimensions

        Vacuum Box: 500mm(L) x 350mm(W) x 650mm(H)

        Control Unit: 500mm(L) x 200mm(W) x 350mm(H)

Power Supply

110-240 V, Single Phase 50/60Hz

Max. Power

100W

Compressed Air

0.5-0.8Mpa

Chamber Body

12mm thick Aluminum case with observation window

Gas Filling Rate

<= 5 psi

Air Pressure Range

0 - 1 Mpa (0 - 99 psi) Adjustable

Vacuum Level

       1. Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently

       2. Vacuum mode (once or twice) can be selected

       3.Easy program setting for specific vacuum condition

       4.-0.9 - 0 kPa adjustable

Air Inflation Time

0 - 99.99 sec

Vacuum Condition Hold Time

0 - 99.99 sec

Operation Temperature

-20 to 40

Warranty

Two Year limited warranty with lifetime support

Net Weight

65KG

Application Notes

1. KF25 Feedthrough is included to allow operation inside TMAX Glove box.
2. Such a Feedthrough ensures air-tightness of glove box.


Electrolyte Diffusion

Electrolyte Diffusion

 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
