Precise Micro Spot Welding Machine/ Battery Tab Welder for Cylindrical Cell

  • Model Number:

    TMAX-APR30
  • Dimension(L*W*H):

    L800×W600×H130mm
  • Net Weight:

    30kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Year limited warranty with lifetime support
  • Place of Origin:

    China
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

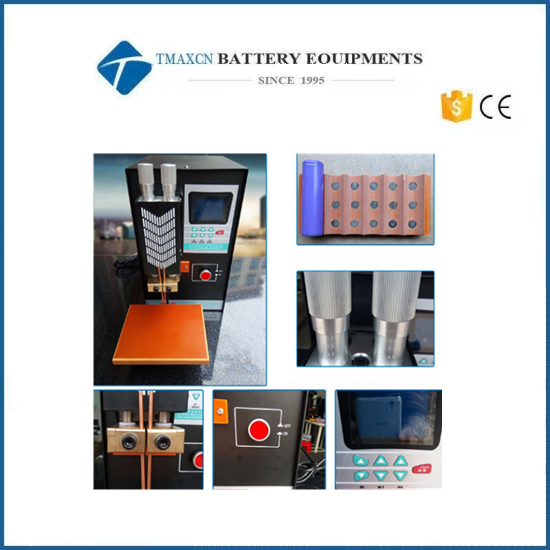

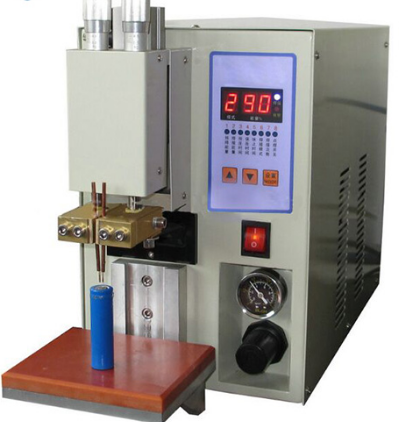

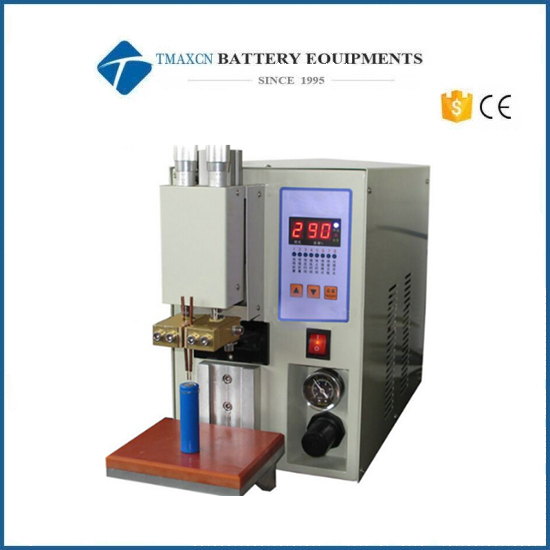

Precise Micro Spot Welding Machine/ Battery Tab Welder for Cylindrical Cell


Features:

1. This pneumatic spot welding machine is mainly used for 18650 cylinder cell pack welding, it can weld nickel tab thickness from 0.03-0.25mm with good welding effect.
2. The Pneumatic model is with smaller volume and weight, easy for international shipping.

Double pulse welding:
Double pulse welding, the first pulse is used to remove the surface coating and oxide of the workpiece, while causing slight deformation at the contact point of the welding electrode, improving the effective contact surface, and the second pulse is used to lift the body metal. Soldering. It can effectively promote the quality of welding and reduce welding spatter. The pulse energy is adjustable, and the welding cycle number is adjustable. The grid voltage is automatically tracked and compensated, the welding current output is stable, the welding is firm, beautiful, less splashing, simple to operate, safe and reliable.




Advantages:

1 Microcomputer control, CNC current adjust
2 High precision welding power
3 Digital tube display, keyboard control, welding parameters flash storage.
4 Double pulse welding, make welding more firmly.
5 Small welding sparks, solder joint uniform appearance, the surface is clean
6 Welding times can be set
7 Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8 Large power, stable and reliable.
9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.



Specifications:

Power Supply

220-240V, Single Phase 50/60Hz

Max. Power

10KW

Air Pressure Range

0.1 - 0.7 Mpa ( air compressor is required)

Welding Current

2500A

Welding Thickness

0.03 - 0.25mm

Operation Temperature

-20 - 40℃

Controller

Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding

Pressure

The pressure applied on the welding needle can be adjusted independently and easy to operate

Design

1. Unique Photoelectric switch design

2. Good appearance, small size and light weight

3. Welding spot looks beautiful,free spark, stable welding current

Product Dimensions

L800×W600×H130mm

Net Weight

30kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support
