100V 10A Charge / 20A Discharge Battery Pack Aging Test Cabinet

Model Number:: TMAX-AG100
Input Power:: ≤1400W
Dimension(L*W*H):: 980x600x1820mm
Compliance:: CE Certified
Warranty:: Two Year Limited Warranty With Lifetime Support
Update:: Optional
Place of Origin:: China
Shipping Port:: Xiamen Port
Payment:: L/C D/A D/P T/T Western Union
Delivery Time:: 5 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

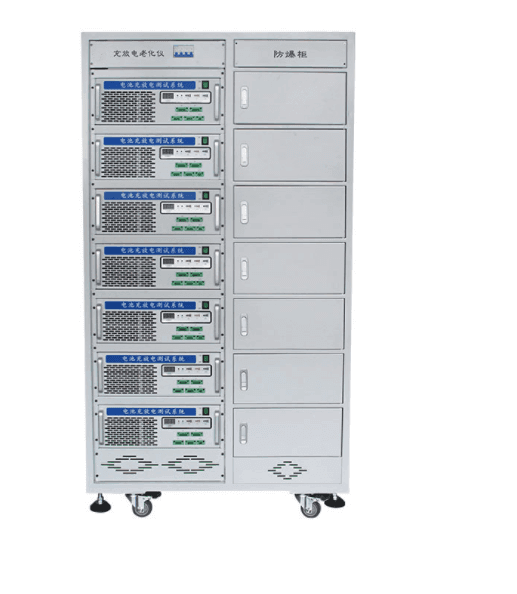

100V 10A Charge / 20A Discharge Battery Pack Aging Test Cabinet

1.Feature:

The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps. We also supply all kinds of Aging Machine for you!

2.Specification:

Technical Parameter
Input Power Supply	Measuring Range	10-100V
Input Power Supply	Accuracy	±(0.2% of reading +0.2% of range)
Current	Charging Range	50-10000mA
	Charging Accuracy	±(0.2% of reading +0.2% of range)
	Discharge Range	50-20000mA
	Discharge Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant Voltage Cut-off Current	Minimum 50mA
Capacity	Accuracy	±1%
Power	Discharge Power	≤1400W
Time	Inspection Time	Real-time Collection<2S
Time	Timing Range	0-999h/step
Data Recording Interval	≥5S
Middle Machine Version	1:1 series
Number of Passages Per Cabinet	Seven channels, seven rows and one column
Charge	Charging Mode	Constant Current and Constant Voltage Charging
Charge	Cut-off condition	Voltage, Current, Relative Time, Overcharge Protection
Discharge	Discharge mode	Constant current discharge
	Cut-off condition	Voltage, Relative Time and Over-discharge Protection
Loop	Cyclic measurement range	1-999 times
Loop	Single cycle step number	100
Voltage and Current Detection Sampling	Four-wire sampling
Data Base	Using SQL database to manage test data
Upper computer communication mode	Based on TCP/IP Protocol/Serial Port
Data Output Mode	EXCEL/TXT/Chart
Communication Interface	Mesh port
Chassis dimensions	450x450x170mm
Cabinet size	980x600x1820mm
Spatial Dimension of Discharge Battery	370x550x190mm

3.Selection of battery pack charge and discharge aging machine:

Model	Item	Specification	Remarks
TMAX-BCDS-30V1020	30V 10A 20A battery pack aging machine	Voltage:30V Charging:10A Discharge:20A	12 channels,4 rows and 3 columns
TMAX-BCDS-70V0510	70V 5A 10A battery pack aging machine	Voltage:70V Charging:5A Discharge:10A	12 channels,4 rows and 3 columns
TMAX-BCDS-70V1020	70V 10A20A battery pack aging machine	Voltage:70V Charging:10A Discharge:20A	7 channels,7 rows and 1 columns
TMAX-BCDS-85V1020	85V 10A20A battery pack aging machine	Voltage:85V Charging:10A Discharge:20A	7 channels,7 rows and 1 columns
TMAX-BCDS-100V1020	100V 10A20A battery pack aging machine	Voltage:100V Charging:10A Discharge:20A	7 channels,7 rows and 1 columns
TMAX-BCDS-100V2040	100V 20A40A battery pack aging machine	Voltage:100V Charging:20A Discharge:40A	1 channel
TMAX-TG8000-60V20A	Energy regenerative type 60V 20A battery pack aging machine	Voltage:60V Charging:20A Discharge:20A	36 channels,9 rows and 4 columns
TMAX-TG8000-100V20A	Energy regenerative type 100V 20A battery pack aging machine	Voltage:100V Charging:20A Discharge:20A	36 channels,9 rows and 4 columns
TMAX-TG8000-100V30A	Energy regenerative type 100V 30A battery pack aging machine	Voltage:100V Charging:30A Discharge:30A	12 channels,6 rows and 2 columns
TMAX-TG8000-20V50A	Energy regenerative type 20V 50A battery pack aging machine	Voltage:20V Charging:50A Discharge:50A	12 channels,6 rows and 2 columns
TMAX-TG8000-60V50A	Energy regenerative type 60V 50A battery pack aging machine	Voltage:60V Charging:50A Discharge:50A	12 channels,6 rows and 2 columns
TMAX-TG8000-100V50A	Energy regenerative type 100V 50A battery pack aging machine	Voltage:100V Charging:50A Discharge:50A	12 channels,6 rows and 2 columns
