50-500mL Lab Planetary Ball Mill Machine with four Jars & Lock Clamps

Model Number:: TMAX-DSP-LT01
Type:: Planetary Ball Mill Machine
Dimension(L*W*H):: 50-500mL*4 It can be customized
Net Weight:: 70kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

50-500mL Lab Planetary Ball Mill Machine with four Jars & Lock Clamps

SPECIFICATION

1 Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

2 the Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).

3 It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.

4 It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.

Model	Planetary Ball Mill Machine TMAX-DSP-LT01
Grinding tank volume (L)	0.1L*4 It can be customized

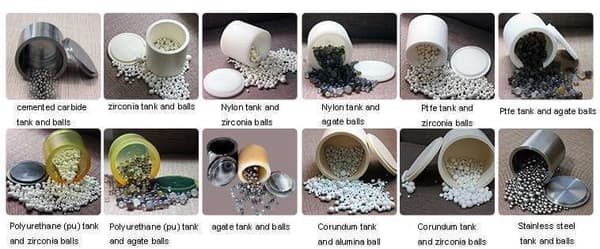

Grinding tank material	According to requirements
Grinding media	According to requirements
Maximum loading per tank	Material and grinding medium does not exceed two-thirds of the volume
Feeding material size	Soil material ≤ 10 mm, other materials ≤ 3 mm
Discharge material size	Min 0.1um
Rotating speed	Revolution 340r/min , Rotation 680 r/min
Speed ration (revolution: rotation)	1:2
Speed mode	Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse
Transfer method	Gear drive
Working Voltage	110V/220V
Motor power and variable frequency power	0.8Kw
Way of working	Two or four jars work at the same time
Maximum continuous operating time	72hours
