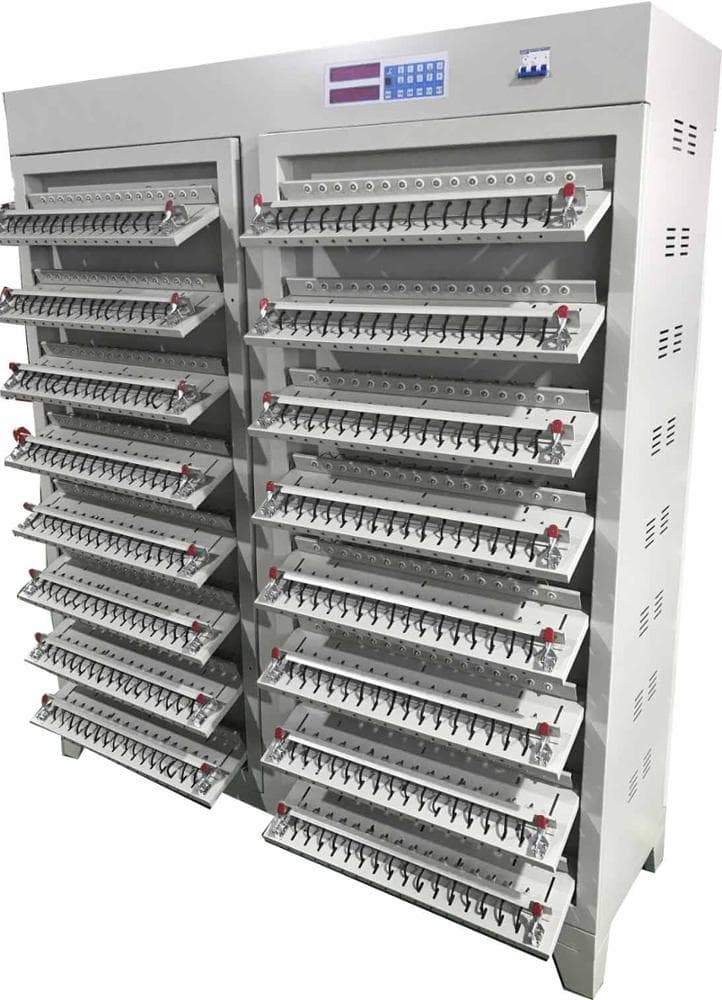

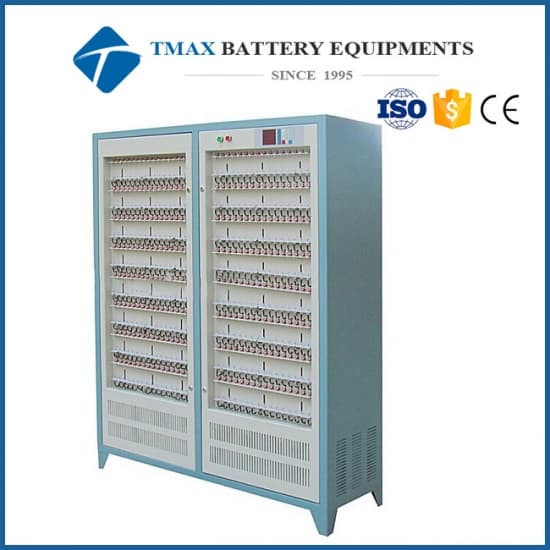

512 Channel Pouch Cell Capacity Tester Analyzer For Polymer Battery

Model Number:: TMAX-512-C
Type:: Tester Analyzer
Dimension(L*W*H):: 1500*1200*2000(mm)
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

512 Channel Pouch Cell Capacity Tester Analyzer For Polymer Battery

SPECIFICATION

1.This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet. The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit,the main control CPU, data memory, microcontroller programming and control panel.

TMAX-512-C Battery forming and grading machine,with 512 channels

Project index	Parameter index
Model	Tester Analyzer TMAX-512-C
Demension	15009001900(mm)
Working power supply	AC 220V ±5% 50HZ
Max Power Dissipation	7000w
Channel no	512
Support battery height range	10-96mm( stepless adjustment)
Clamp spacing	35mm
Voltage measurement range	DC100-4500mV
Voltage accuracy	±0.1%FS ±0.1%RD
Voltage measurement range	DC100-4500mV
Voltage resolution	1mV
Constant voltage range	DC2000~4500mV
Minimum discharge voltage	2000mV
Charge discharge current range	DC5~2000
Current accuracy	±0.1%FS ±0.1%RD
Current resolution	1mV
Time measurement range	999min/step
Time measurement error	±0.1%
Working temperature	0~40 ℃
Relative humidity	≤85%
