Lab Split Type Test Cell For 26650 Cylindrical Cell

Model Number:: EQ-SC-26650
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

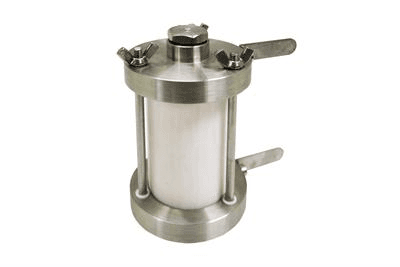

Lab Split Type Test Cell For 26650 Cylindrical Cell

EQ-SC-26650 Split Type Testing Cell is designed for testing 26650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrode easily and quickly.

specifications
Dimensions (Dia. x Height)	1 ID of PTFE Body: 26mm 2 Height of PTFE Body: 65mm
Material	1 Caps: Full Stainless steel end caps 2 Body: Eletrolyte corrosive-proof PTFE body can sustain with temperature up to 250ºC 3 O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

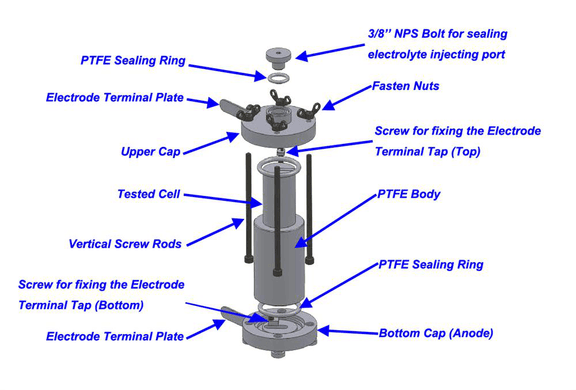

Design	1 Easy assembling by only four cap mounting screws 2 Easy to separate after test for cleaning 3 Space saving, compact design allows you put it into the glove box 4 Click the image left for the detailed illustration of this cell
Option	1 Anti-corrosive Au coating on the top & bottom stainless steel caps is an option. Surcharge will apply.
