Split Test Cell for Lithium Air Battery Research

Model Number:: EQ-STC-LI-AIR
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

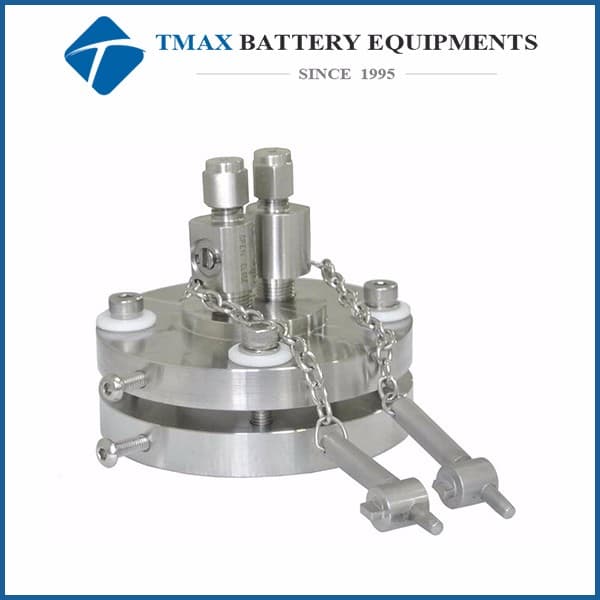

Split Test Cell for Lithium Air Battery Research

SPECIFICATION

The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy.

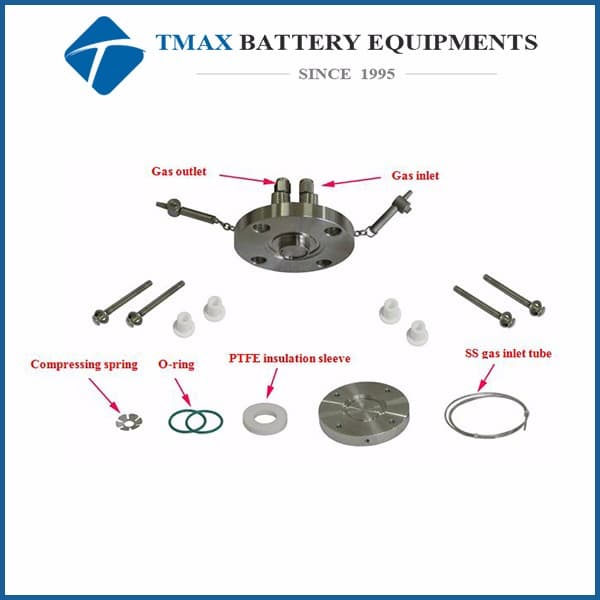

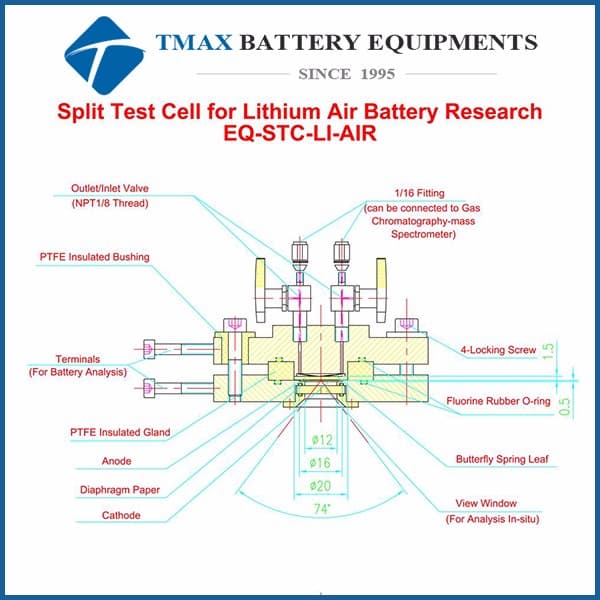

Structure	1Stainless Steel Structure with internal Silver-Clad surface treatment better electrical conductivity and good corrosion protection 2 Two electrodes design 3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings 4 Compact design fits in any table top glove boxes
Cell Thickness	1~3mm (cathode +separator +anode)
Bottom Recess Area	16mm Dia. (The recess area can acceptance electrodes with size up to 16mm dia.)
Max. Working Temperature	250℃
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Warranty	One Year limited warranty with lifetime support

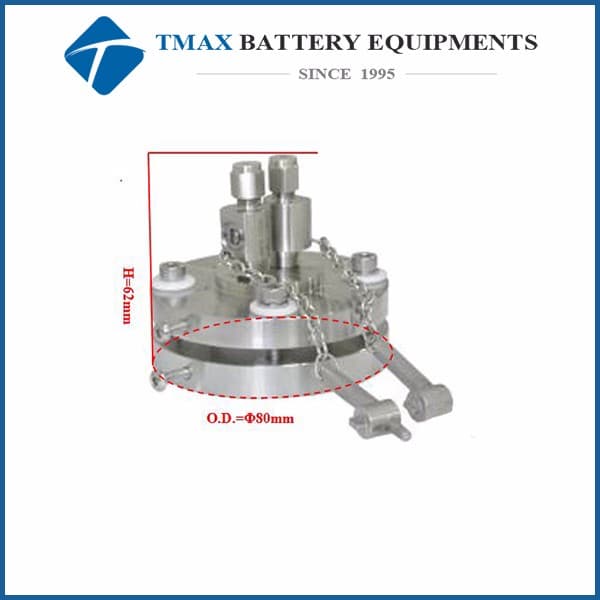

Dimensions	φ80*62mm
