Lithium polymer battery aluminum film punch cell case forming machine

Model Number:: TMAX-JK-CXJ
Type:: Punch Forming Machine
Dimension(L*W*H):: Max. die size is 160mm (L) x 120mm (W) x 6mm (H)
Net Weight:: 150kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

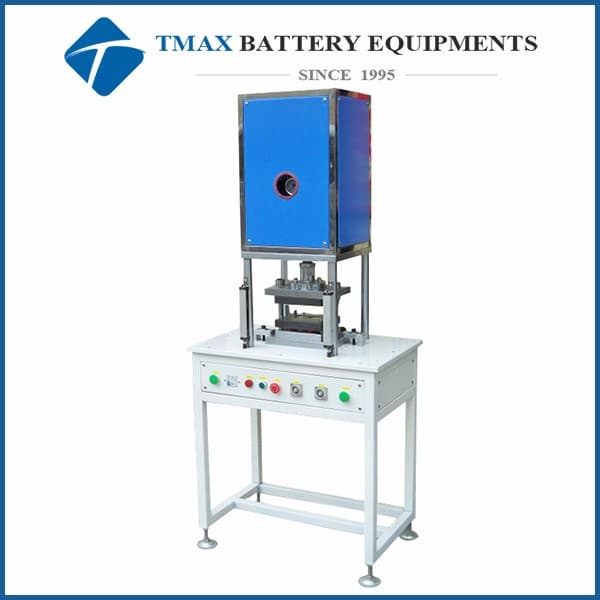

Lithium polymer battery aluminum film punch cell case forming machine

TMAX-JK-CXJ is a CE Certified cup forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.

SPECIFICATIONS:

Customized Die Size	Max. die size is 160mm (L) x 120mm (W) x 3/4/5/6mm (H)
Air Pressure Requirement	0.6MPa~0.8MPa
Max. Distance between Top and Bottom Die	75mm
Working Voltage	110 - 240V AC, single phase
Max. Power Consumption	100W
Max. Cup Depth to Punch	< 6.0 mm
Max. Punching Pressure	10 metric tons
Stroke Frequency	< 8 seconds per trial
AL Laminated Film	Thickness of Aluminum Laminated Film: 0.11 - 0.20 mm acceptable
Acessories	All necessary accessories are included for immediateuse
Net Weight	150kg
Product Dimensions	800x500x1850mm
Compliance	CE Certificate
Warranty	Two Year limited warranty with lifetime support
