Pneumatic Electrode Die Cutter Cutting Machine For Battery Case Notching

Model Number:: MSK-180S
Type:: Pneumatic Die Cutter
Dimension(L*W*H):: Max.300mm(L) x 250mm(W)
Net Weight:: 35kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

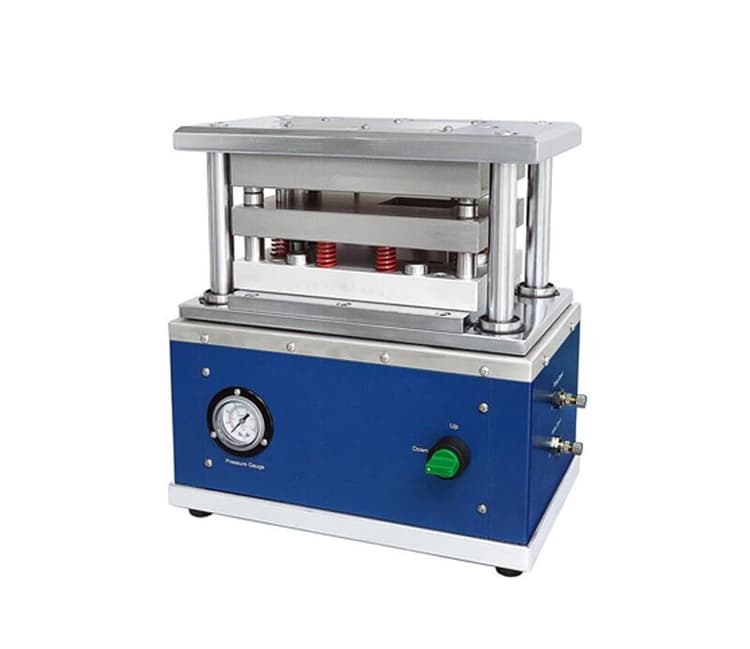

Pneumatic Electrode Die Cutter Cutting Machine For Battery Case Notching

Introduction

MSK-180SP is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut.

Specification

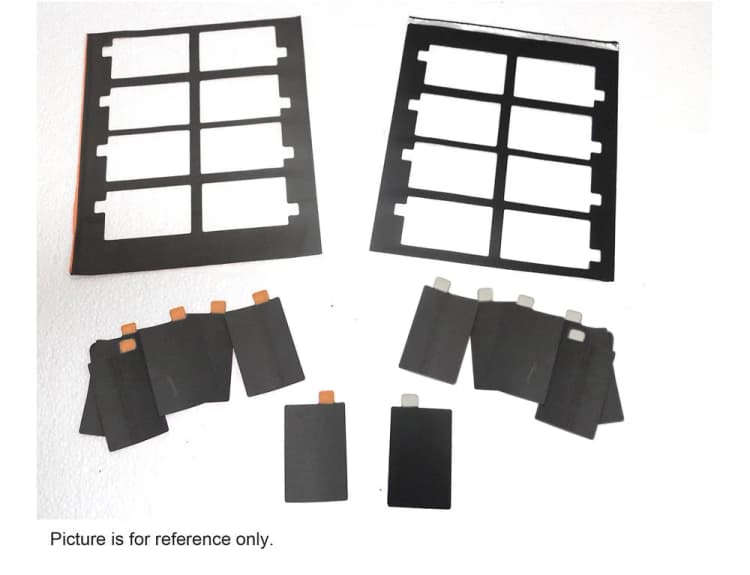

Die Set Dimensions	Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use. Cathode Die: 56mm (L) x 43mm (W). With 10mm (L) x 10mm (W) protrude current collector. Anode Die: 58mm (L) x 45mm (W). With 10mm (L) x 10mm (W) protrude current collector Customized dies with Max. area 140mm L x 80mm W,
Plate Pad	Use the plate pad to hold the electrode and minimize permanent markings on the base
Cutting Depth	Max. 0.5mm (tested with aluminum laminated film)
Cutting Accuracy	±0.1mm
Cutting Pressure Force	Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)
Gas Pressure	0.5~1.0Mpa (0.7Mpa is recommended) For the use of inside the glove box, please use compressed inert gas such as Ar. For the use of outside the glove box, you may use the air compressor, 60 psi recommended. Compressor is not included, please click the image on the left to order
Feeding	Manually
Stroke Length	12mm
Cutting Die Life Span	~30000 strokes
Compliance	CE Certified
Warranty	Two years limited warranty with lifetime support
Product Dimensions	380mm(L) x 260mm(W) x 250mm(H)
Net Weight	35kg
Shipping Weight & Dimensions	200 lbs; 23" x 19" x 19"
