Semi-Automatic Cylindrical Cell Slitting Slitter Machine For Cylinder Battery Production

Model Number:: TMAX-MQ350A
Type:: Electrode Slitting Machine
Dimension(L*W*H):: 20-500mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Semi-Automatic Cylindrical Cell Slitting Slitter Machine For Cylinder Battery Production

Features

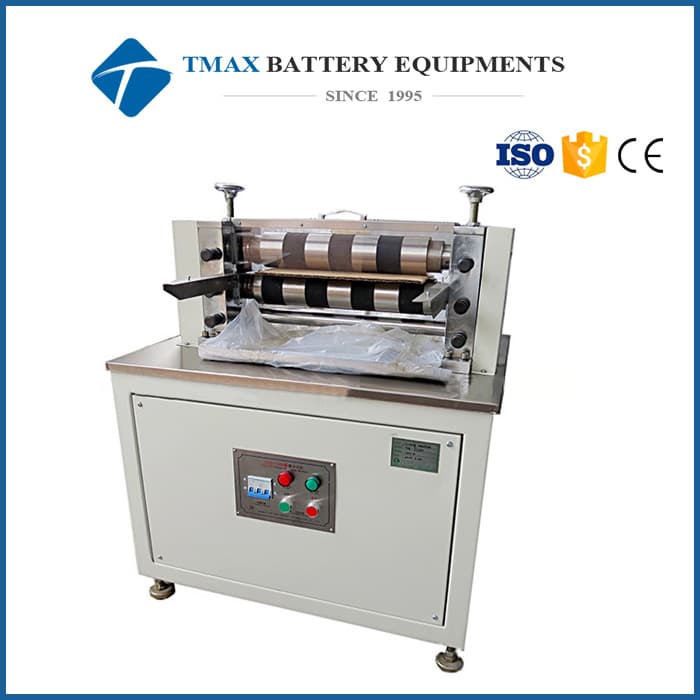

1.TMAX-MQ350A model Battery Electrode Slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.

2 .The slitting machine can slit electrode with width up to 400mm, and with finished slitting width from 20mm to 400mm with different model cutter blade.

3 .This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.

Specification

Model	Battery Electrode Slitting Machine
Source voltage	AC 110V-220V, Customized, 50HZ
Power	800W
Warranty	Two years limited warranty and lifetime support

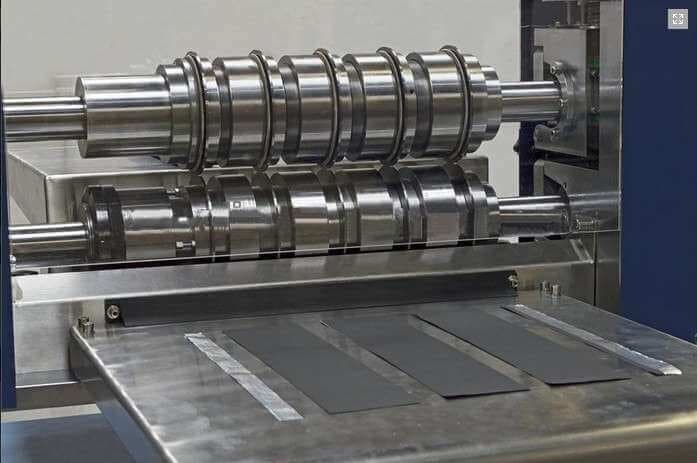

Slitting mode	Single knife hobbing
Knife type	Upper and lower round knife
Slitting width	20-500mm
Slitting thickness	100-300um
Hob diameter	Φ80 mm
Slitting speed	10m/min, Adjustable
Dimension(LWH)	6106101100mm
Weight	200kg

Related Machine for Cylindrical Cell Making

Process	Electrode Rolling	Ultrasonic Welding	Electrode Winding	Spot Welding	Grooving	Sealing	Testing
Specfication	Roller Size:optional (100100)mm (100200,100250)mm (100300)mm (100*400)mm	Welding Power:optional 80-6500W	Manual or semi-sutomatic optional	Single welding needle or double welding needles optional	Lab cylindrical cell grooving machine	Manual Sealing or Pneumatic Sealing Machine	5V 3A or 5V 6A 8 Channel Battery Tester
Machine	Rolling Press Machine	Ultrasonic Spot Welding Machine	Winding Machine	Spot Welding Machine	Grooving Machine	Sealing Machine	Battery Tester
