Small Roll to Roll Continuous Coater Coating Machine for Battery Electrode
Model Number:
TMAX-TMJ-180CCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

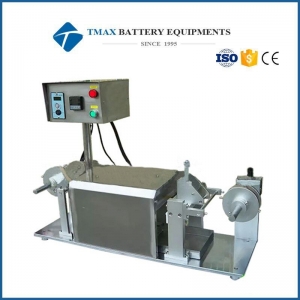

Small Roll to Roll Continuous Coater Coating Machine for Battery Electrode
The TMAX-TMJ-180C desktop continuous coating machine is a small roll to roll coating machine （Roll to Roll Coater）for lab research, it is assembled by high precision coating device, suitable for institutions, university and factory pilot scale battery research work.
Specifications
|
Model |
Roll to Roll Continuous Coating Machine TMAX-TMJ-180C |
|
Source voltage |
AC 220V/110V, 50HZ/60HZ |
|
Power |
400W |
|
Suitable material thickness |
Aluminum foil : 0.01-0.03mm Copper foil : 0.006-0.020mm |
|
Max electrode width |
50-180mm |
|
Coating speed |
0-2m/min, adjustable |
|
Max. drying temperature |
100℃ ,PID control mode |
|
Oven length |
400mm/800mm/1100mm or customized length upon request |
|
Coating thickness |
0.01mm-2mm |
|
Coating thickness accuracy |
0.01mm |
|
Film applicator |
One standard film applicator is included as below: *Analog film applicator with fix coating width *0~3mm gap/coating thickness adjustable *Coating accuracy: ±0.01mm Optional parts: Digital micrometer Adjustable width Different gap/coating thickness |
|
Warranty |
One Year limited warranty with lifetime support |
