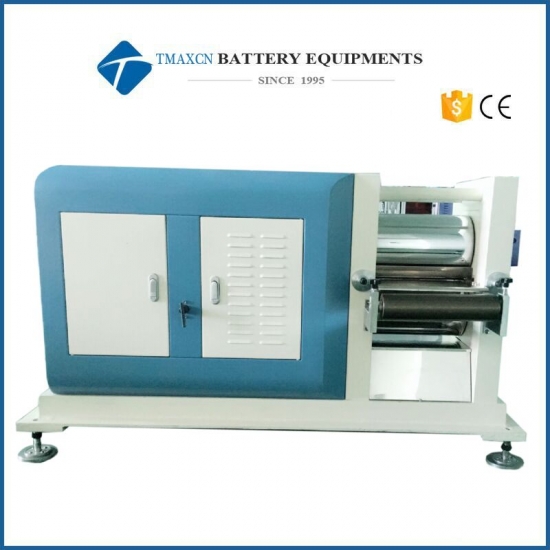

Roll To Roll System Pressure Controlled Hydraulic Electrode Rolling Press Machine

  • Model Number:

    TMAX-YY-300
  • Dimension(L*W*H):

    300mm(W)
  • Net Weight:

    850 kg
  • Warranty:

    Two years warranty,one stop service,provide full solutions
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Roll To Roll System Pressure Controlled Hydraulic Electrode Rolling Press Machine


1 TMAX-YY-300 Hydraulic Roller pressure machine is an Automatic Electrode Rolling Press System with precision digital pressure control . The pressure can be adjusted easily by touch screen. It biggest roller press width is 300mm.

2 It is with tension controlled feeding and winding devices with the electric rolling press machine, which can roll to roll system continuous Electrode calendering, suitable for battery electrode roll to roll calendering for pilot scale research work.


SPECIFICATIONS

Model

Roll to Roll Pressure Controlled Hydraulic Roll Press Machine

TMAX-YY-300

Function

Roll electrode

Calender Thickness

0.01-3.2mm adjusted

Calender Width

Max 300mm

Calender Pressure

Max 20KN

Speed

1-3m/min

Working Roller

Diameter 200mm, 9Cr3Mo materials

Roller Width

320mm

Calender Model

Hydraulic press

Accuracy

0.003mm

Rolling Press Machine Power

3.5KW

Winding and Unwinding power

0.55KW

Tension Control

Absolute value photoelectric encoder with floating guide roller

Rolling Press Machine Size

About L1300mm*W600mm*H1300mm

Total Installation Dimension

L3000mm*W1200mm*H1300mm

Power Supply

110-380V 3.5KW

Electric control

With tension display, rolling speed display function

Electric motor revolution and connter revolution
