Semi-Automatic Supercapacitor Cylinder Assembly Pilot Line Equipment

Semi-Automatic Supercapacitor Cylinder Assembly Pilot Line Equipment

Ⅰ、Introduction

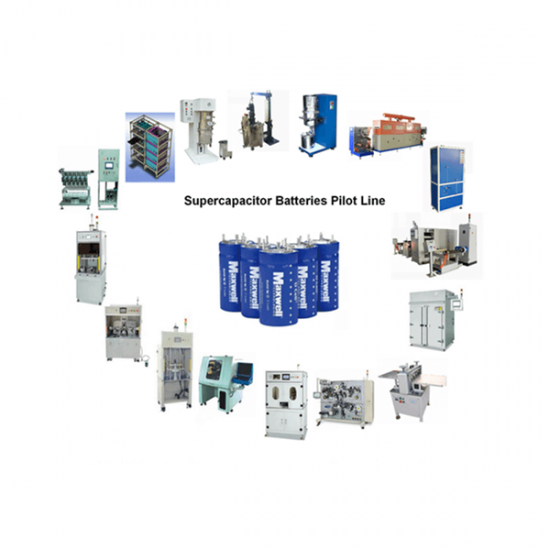

This line is suitable for cylindrical supercapacitor equipment such as 60138, it's a semi-automatic assembly line, and can also be customized as fully automatic equipment according to customer requirements.

Ⅱ、Process
1. Raw material baking-remove moisture from the material
2. Mixing the cathode and anode materials
3. Slurry viscosity testing
4. Magnetic de-Ironing filtration
5. Electrode coating
6. Waste gas treatment
7. Electrode pressing
8. Electrode slitting
9. Electrode winding
10. Super capacitor core shaping
11. Welding of current collector
12. Welding of upper collector and upper cover
13. Shell feeding (shell feeding machine)
14. Grooving and pre-sealing for supercapacitor
15. Supercapacitor final sealing
16. Positive connection (laser welding machine)
17. Baking (vacuum baking system)
18. Put electrolyte filling machine into glove box
19. Electrolyte filling
20. Rubber plug sealing
21. Press aluminum plug
22. Injection port welding
23. Aging and testing

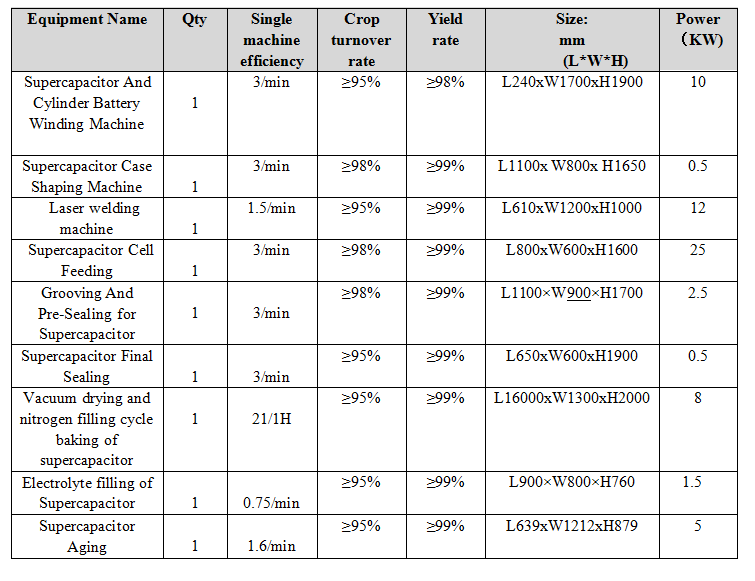

Ⅲ、Equipment components:
