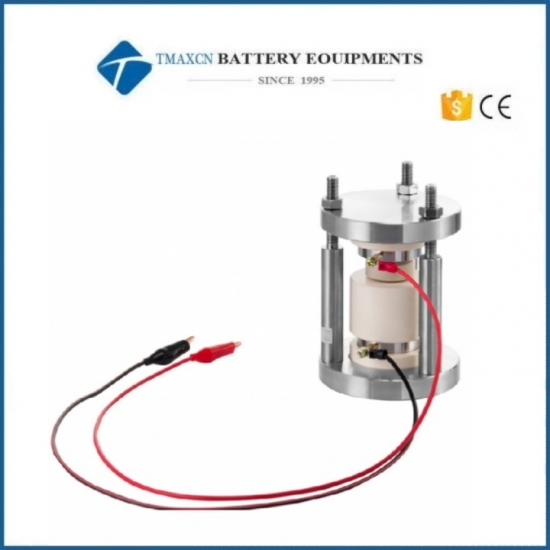

Stainless Steel 304 Outer Frame PEEK Material Small Pressure Control Battery Fixture with Optional Mold Size
Model Number:
TMAX-PMN-JADimension(L*W*H):
Max. Tablet Diameter(mm): 100mmNet Weight:
1kgCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Stainless Steel 304 Outer Frame PEEK Material Small Pressure Control Battery Fixture with Optional Mold Size
Application Fields
We are a professional manufacturer of powder tablet presses and molds. Our tablet presses are small in size but have high pressure and high pressure control accuracy. They have been applied in various industries such as research, teaching, testing, pharmaceuticals, catalysis, and chemical engineering. In addition, this product can be used in conjunction with Fourier infrared spectrometers and fluorescence spectrometers for sample preparation, and can replace similar imported products.
Mold Operation Diagram
Operating Steps
Product Parameter
|
Instrument model |
TMAX-PMN-JA |
|
Sample shape |
|
|
Displayed pressure range |
0-5000kg |
|
Frame material |
304 stainless steel |
|
Mold material |
PEEK insulating material |
|
Head material |
3Cr13 stainless steel |
|
Sample size |
Φ10，Φ12，Φ12.7，Φ13，Φ20mm (d) |
|
Mold size |
Φ50x90mm(M X L) |
|
Overall dimensions |
Φ88 × 130 mm (D XH) |
|
Input power |
AA batteries(4 pcs) |
|
Mold weight |
1.5kg |
|
Dimension illustration |
|
