UV LED Point Light Curing System With Touch Screen

Model Number:
TMAX-CM-DGY
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

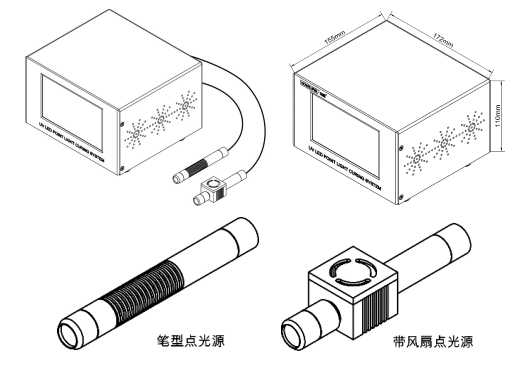

UV LED Point Light Curing System With Touch Screen

Specification

Model	TMAX-CM-DGY	Irradiation method	Manual, automatic, foot operated
Input current	100-240V, 50/60Hz	Parameter settings	Password: 1234
Accessible irradiation head	Standard 1-4PCS, customizable	Operating temperature	0-35C
Emitting wavelength	365nm/385nm/ 395nm/405nm/420nm	Ambient temperature	30%-80% RH
Cooling method		Product attachments	Host, irradiation head, electronic manual, Taiwan Mingwei DC adapter

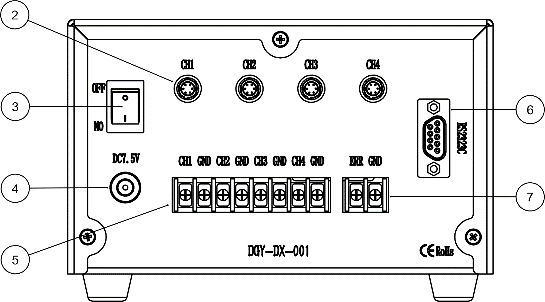

Controller Overview

1. Touch screen 2, irradiation head interface 3, power switch 4, DC input 5, foot pedal and control terminal 6, RS232 interface DB9 7, light source alarm input

Introduction to the irradiation head

1. The wavelengths of UV LED irradiation heads are 365nm, 385nm, 395m, 405m, and 420nm, which can be customized according to requirements. The regular stock is 365nm

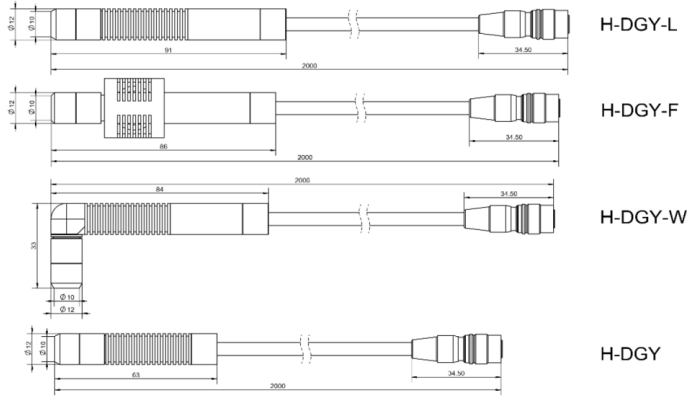

2. Length of irradiation head

Spot lens specifications

Circular spot irradiation head model	Cable length	Standard configuration of 2m, can be customized for 3m and 5m
	Lens diameter	Optimum distance	Maximum radiation intensity	Wavelength
	Φ1.5mm	7mm	9000mW	365nm
	Φ3mm	9mm	6700mW	365nm
	Φ4mm	14mm	5000mW	365nm
	Φ5mm	16mm	4100mW	365nm
	Φ6mm	17mm	3600mW	365nm
	Φ8mm	27mm	1800mW	365nm
	Φ10mm	25mm	1300mW	365nm
	Φ12mm	25mm	1000mW	365nm
	Φ16mm	38mm	750mW	365nm
	Φ20mm	20mm	600mW	365nm
