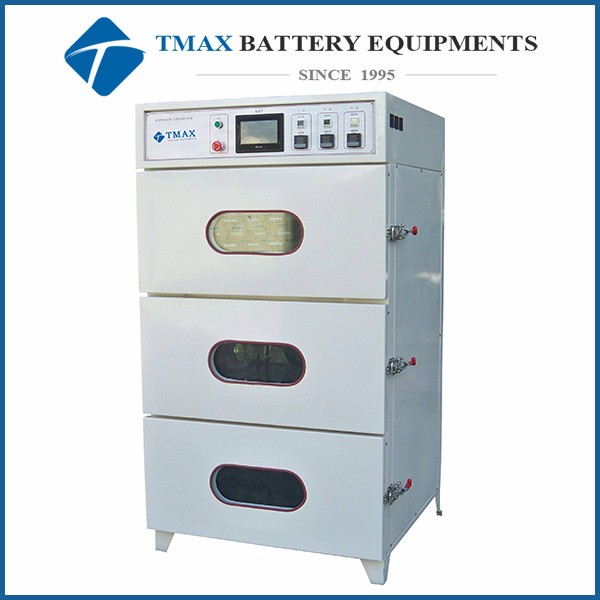

Three Layers Electrode Vacuum Drying Oven
Model Number:
TMAX-JK-ZKHX-A3Type:
Vacuum Drying OvenDimension(L*W*H):
(300*800*600 mm)*3Compliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

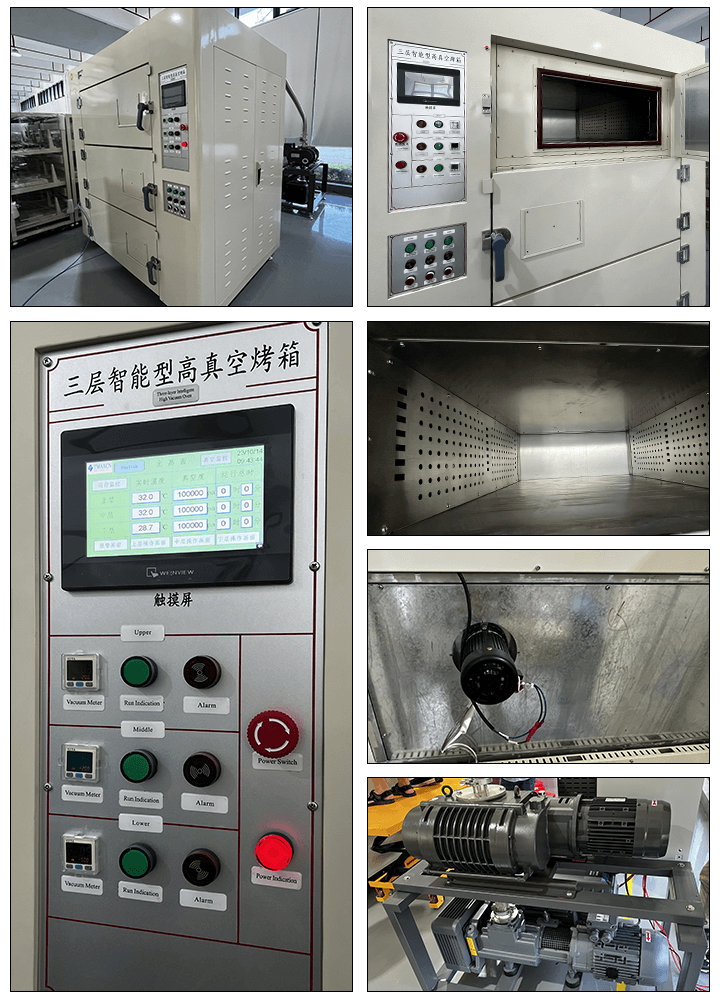

Three Layers Electrode Vacuum Drying Oven
Specifications
1 For battery electrode and materials baking
2 Can be individually, separately add nitrogen
Main technical parameters |
Performance |
Workroom size(H*W*D) |
(300*800*600mm)*3 |
Max working temperature |
200°C |
Heating power |
4.5KW*3 |
Source voltage |
380V |
Temperature instrumentation |
Digital temperature controller |
Temperature accuracy |
±1°C |
Temperature uniformity |
±2°C |
Vacuum degree |
100Pa |
Gas leakage |
≤1kPa/h |
Measure deviation |
<±1% |
