1100℃ Laboratory Mini Muffle Furnace Box Furnace

  • Model Number:

    TMAX-KF1100-I
  • Compliance:

    CE certificate
  • Warranty:

    One year limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

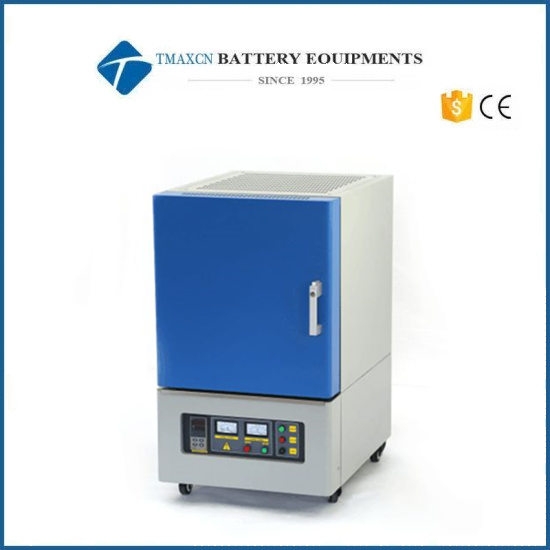

1100℃ Laboratory Mini Muffle Furnace Box Furnace


Box type resistance furnace, also known as muffle furnace, is the basic heating equipment in laboratory. It is widely used in industrial and mining enterprises, aviation and aerospace systems, scientific research institutes, colleges and universities and other laboratories. It is a necessary instrument for material sintering, melting, heat treatment, volatilization and other experiments


Specification

Model

KF1100-I

Power

1200W

Chamber size

(DXWXH, mm)

100X100X100(LXWXH)

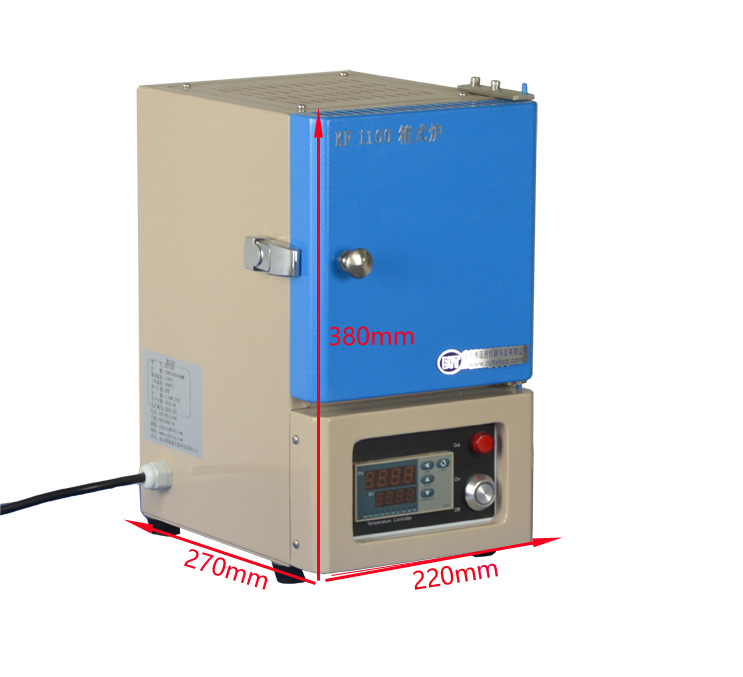

Dimensions (WXDXH)

muffle furnace220X270X380mm(LXWXH)


Voltage

220V

Phase

Single phase

Heating element

Sweden Kanthal A1 imported resistance wire (resistance wire can be guaranteed for 2 years)

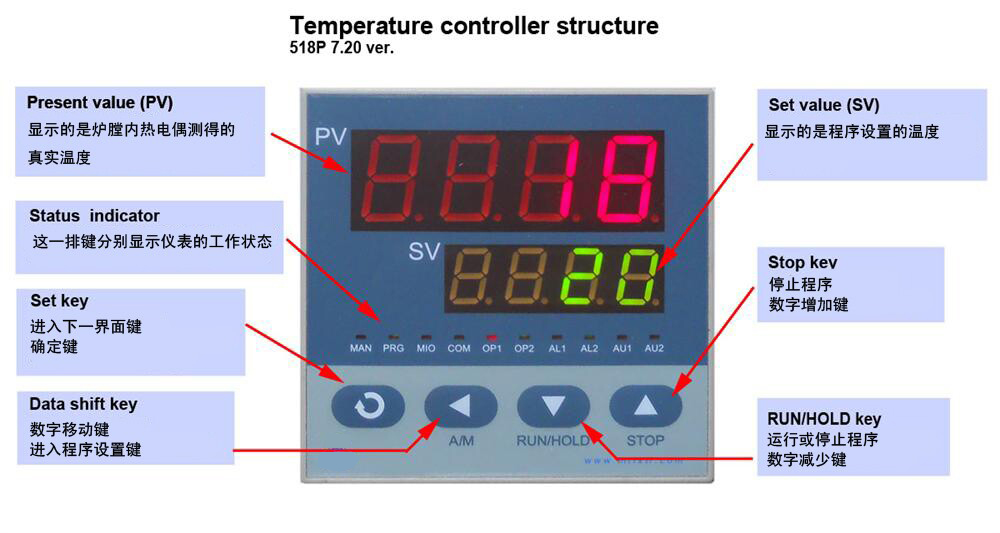

Controller

30-segment program temperature control

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

 muffle furnace


Temperature control mode

Intelligent PID

Over temperature protection

Yes

Overcurrent protection

Yes

Burnout protection and display

Yes

Furnace volume

1L

Furnace material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

control accuracy

+/- 1 ℃

maximum temperature

1100 ℃

Rated temperature

1000 ℃

Thermocouple model

K Type

Thyristor

Triac

surface temperature

≤45℃

Warranty

One year warranty, lifetime technical support

Especially, the consumables such as heating element and sample crucible are not covered by the warranty

Damage caused by the use of corrosive gases is not covered by the warranty

Note

1. For safety, please put the stove in a ventilated place.

2. In order to improve the service life of the furnace, we recommend that the heating rate should not exceed 10°C/min. The cooling rate does not exceed 5°C/min.

3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gases

4. It is forbidden to put the materials directly on the bricks at the bottom of the furnace, please put the materials in the special crucible.

5. When heating, the materials and crucible should not touch the heating element and thermocouple

6. When not in use for a long time, please use the oven again.

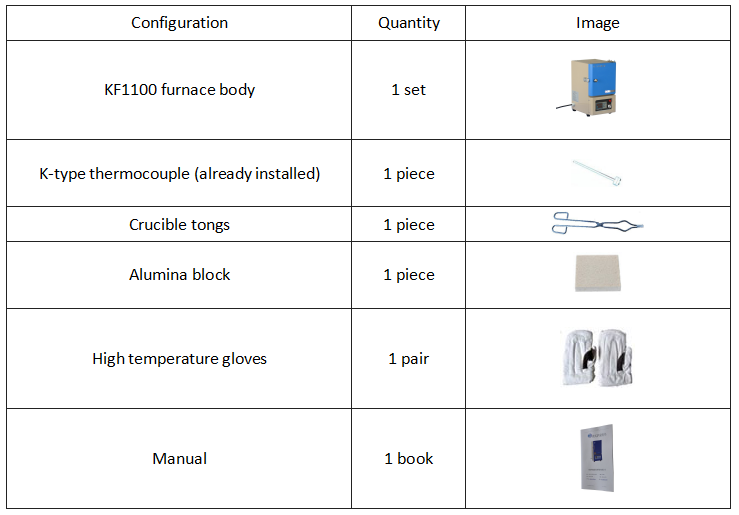

Configurations
