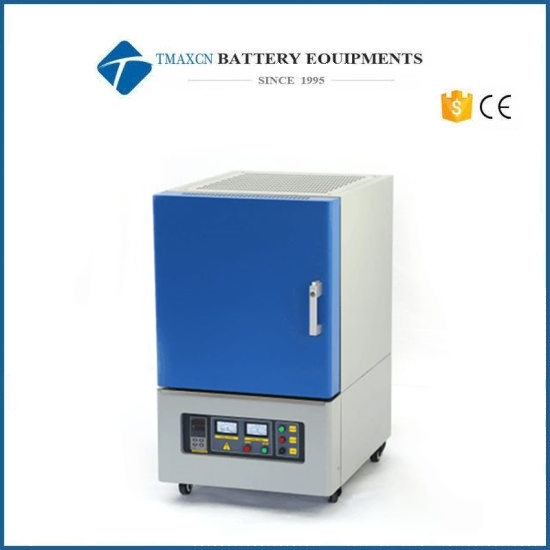

1200℃ Six-Sided Heating Muffle Furnace

Model

KF1200-6

Power

15KW

Chamber size

(DXWXH, mm)

500X400X400mm

Effective heating zone size

450X350X350mm

Heating surface

Six-sided heating, the furnace cavity is covered with heating wires up and down, left and right, the rear and the furnace door, the effective heating zone size is larger, and the temperature field is more balanced

Dimensions (WXDXH)

800X1000X1160mm

Voltage

380V

Phase

Three phase

Heating element

Domestic high-quality resistance wire (optional Sweden Kanthal A1 imported resistance wire)

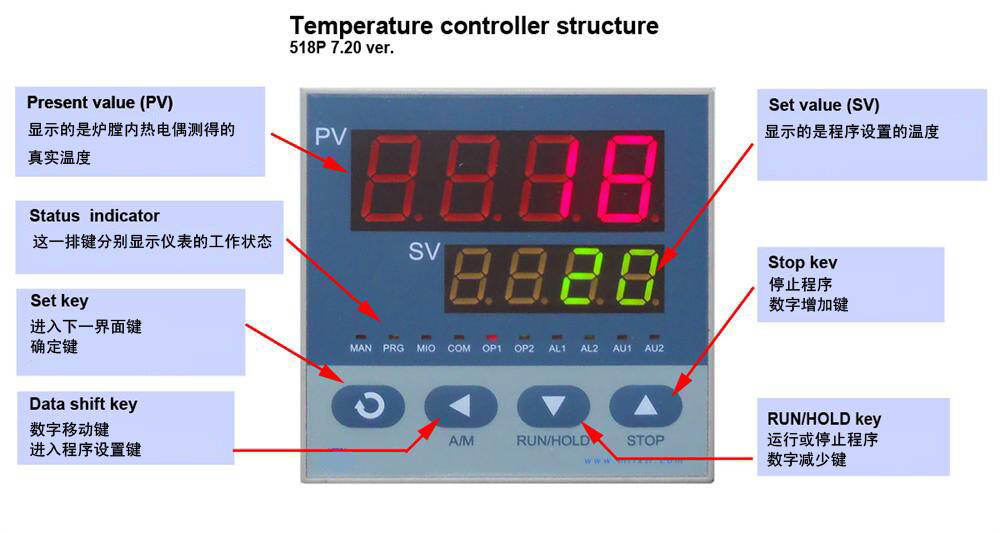

Controller

YUDIAN controller (standard, domestic brand)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. With 485 communication interface (standard when purchasing software)

4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. The meter has the function of temperature self-tuning

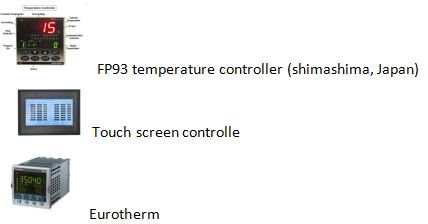

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace material

1. High-quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded with Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

4. Adopt 4-sided heating (left, right, up, down, four sides), the temperature field is more balanced

control accuracy

+/- 1 ℃

maximum temperature

1200 ℃

Rated temperature

1150 ℃

Thermocouple model

K Type

Trigger

Phase shift trigger

surface temperature

≤35℃

Heating rate

≤30 ℃/ Min

Recommended heating rate

15℃/ Min

Safety protection system

The furnace is equipped with safety and air switch. When the current exceeds the rated current of the air switch, the empty meeting will automatically trip, effectively protecting the electric stove.

Door opening protection system

This furnace is equipped with a travel switch. When the furnace door is opened and taken out, the main electric furnace of the electric furnace will automatically power off

Controlled  silicon

106/16E simenkang, Germany

Warranty

One year warranty, lifetime technical support

Especially, the consumables such as heating element and sample crucible are not covered by the warranty

Damage caused by the use of corrosive gases is not covered by the warranty

Note

1. For safety, please put the stove in a ventilated place.

2. In order to improve the service life of the furnace, we recommend that the heating rate should not exceed 10°C/min. The cooling rate does not exceed 5°C/min.

3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gases

4. It is forbidden to put the materials directly on the bricks at the bottom of the furnace, please put the materials in the special crucible.

5. When heating, the materials and crucible should not touch the heating element and thermocouple

6. When not in use for a long time, please use the oven again.
