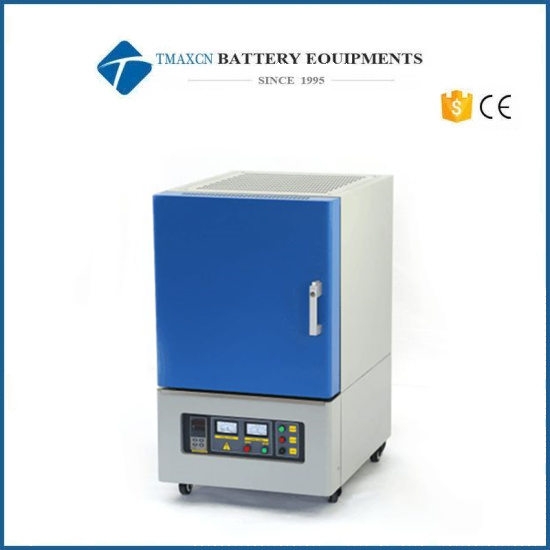

1700℃ Vacuum Muffle Furnace With Water Cooler
Model Number:
TMAX-VF1700ICompliance:
CE certificateWarranty:
One year limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
1700℃ Vacuum Muffle Furnace With Water Cooler
VF1700 vacuum furnace uses molybdenum wire as heating element, adopts double-layer shell structure and Shimadden’s 40-stage temperature control system, phase-shifting trigger, thyristor control, furnace chamber adopts soft and hard carbon fiber materials, which can quickly rise and fall in temperature . The shell is sealed as a whole, the cover plate and the furnace door are sealed with high-temperature silica gel O-rings, and the furnace door is equipped with a water cooling system. The furnace must be sintered under vacuum. The furnace has a DN150MM flange joint connected to the diffusion pump on the side, and a vacuum pump is connected after the diffusion pump, and is equipped with a vacuum valve, a compound vacuum gauge, etc. The furnace has a small volume and a balanced temperature field. , The surface temperature is low, the temperature rises and falls quickly, the price is favorable, energy-saving, etc. It is an ideal product for vacuum sintering in universities, research institutes, and industrial and mining enterprises.
Specification
Model |
VF1700-I |
VF1700-II |
Power |
8KW |
16KW |
Chamber size (DXWXH, mm) |
300X200X200 |
400X300X300 |
Machine dimensions |
600X 610X860 |
700X 710X1355 |
voltage |
220V |
380V |
Phase |
Single phase |
Single phase |
Heating element |
1800 molybdenum wire |
|

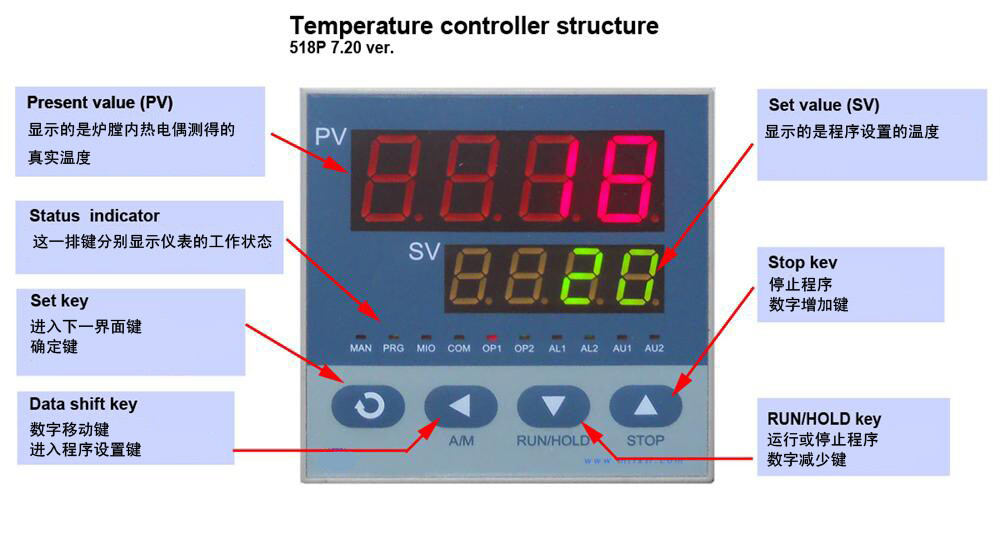

Controller |
Adopt Yudian program temperature control instrument (standard) 1. 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3. With 485 communication interface (standard when purchasing software) 4. With power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5. The meter has the function of temperature self-tuning

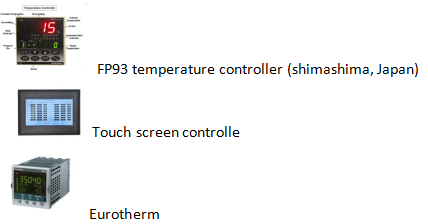

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.
|
|
Heating rate |
≤20 ℃/ Min (can be modified as required) |
|
Recommended heating rate |
10℃/ Min |
|
Furnace material |
Carbon fiber hearth 1. The carbon fiber furnace has extremely low oxygen content, and no oxygen-containing gas will be released at high temperatures. The alumina furnace has high oxygen content and releases oxygen-containing gas at high temperature. 2. The carbon fiber furnace contains less moisture, and the vacuum degree is high when vacuuming, which can reach 0.008Pa. The alumina fiber furnace has high moisture content, and the moisture is not easy to clean, and the vacuum degree is low when vacuuming. 3. The carbon fiber furnace is resistant to acid and alkali. The alumina fiber furnace has poor resistance to acid and alkali. 4. The carbon fiber furnace has strong resistance to various erosions and can resist carbon erosion very well. It is an ideal product for silicon carbide materials and carbide materials. The alumina fiber furnace is easily corroded by carbon. |
|
control accuracy |
+/- 1 ℃ |
|
maximum temperature |
1700 ℃ |
|
Rated temperature |
1650 ℃ |
|
Max. Vacuum temperature |
1500℃ |
|
Vacuum degree in cold state |
≤10Pa |
|
Surrounding surface temperature |
≤45 ℃ |
|
Thermocouple model |
B Type |
|
Vacuum pump |
2XZ-15D |
|
Diffusion pump |
TK150 or TK200 |
|

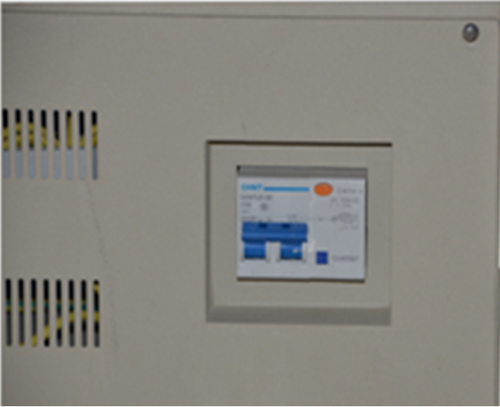

Air switch |
Air switch on the furnace body |
|

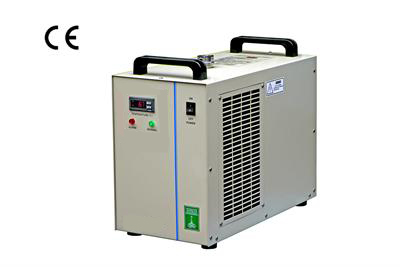

Water cooler |
The flow rate is 16L/min, with over-temperature, under-temperature alarm and under-voltage alarm functions. |
|
Ultimate vacuum in cold state |
≤ 0.008Pa |
|
Trigger |
Phase shift trigger (with soft start and current limit function) Current limiting function: No matter how you adjust the heating time, the secondary current of our electric furnace after passing through the transformer is limited to less than 160A, which protects the equipment limitedly, no matter how you operate it, it will not burn the equipment. Soft start function: The current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element |
|
Electrical appliances |
Zhejiang Chint |
|
Controlled silicon |
106/16E simenkang, Germany |
|
Warranty |
One year warranty, lifetime technical support Especially, the consumables such as heating element and sample crucible are not covered by the warranty Damage caused by the use of corrosive gases is not covered by the warranty |
|
Note |
1. For safety, please put the stove in a ventilated place. 2. In order to improve the service life of the furnace, we recommend that the heating rate should not exceed 10°C/min. The cooling rate does not exceed 5°C/min. 3. The furnace has no vacuum tightness, and it is forbidden to pass toxic or explosive gases 4. It is forbidden to put the materials directly on the bricks at the bottom of the furnace, please put the materials in the special crucible. 5. When heating, the materials and crucible should not touch the heating element and thermocouple 6. When not in use for a long time, please use the oven again. |
