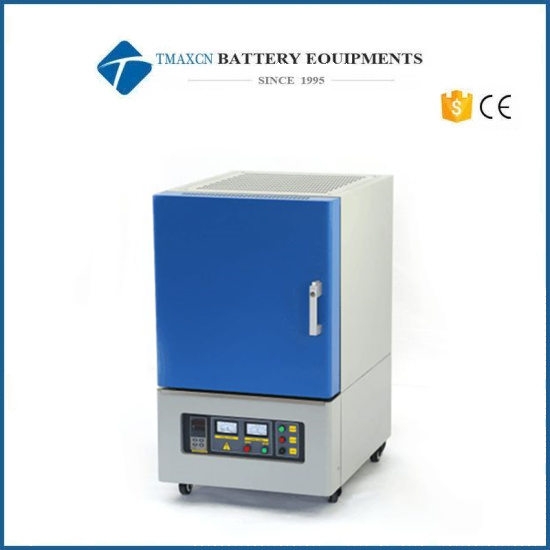

1200℃ Laboratory High Temperature Muffle Furnaces for Sintering Ceramic Metal Powder Chemicals

  • Model Number:

    TMAX-1200DD
  • Compliance:

    CE certificate
  • Warranty:

    One year limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

1200℃ Laboratory High Temperature Muffle Furnaces for Sintering Ceramic Metal Powder Chemicals



Chractristics:

·        1. SECC steel plate with fine powder paint processing outside and high temperature ceramic silicon carbide

·        inside.

·        2. Top heating element,long working life.

·        3. Imported PID digital thermometer, accurate temperature control, simple operation.

·        4. Fast heating and cooling, economica and quick.

·        5. Over-temperature protection, over load automatic power-off system.

·        6. Cyclic system: thermal radiation automatic power-off system.


Main features of our furnaces:

o   Excellent temperature uniformity.

o   30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.

o   One Year Limited Warranty on All Electronic Parts.

o   Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.

o   All models use Ceramic fiber board lining to ensure energy efficiency.

o   Safety feature includes a safety interlock system to shut off power when furnace door open.


Main application

Used in the general laboratory, industrial and mining enterprises, scientific research units for element analysis and determination, as well as general small steel parts quenching, annealing and tempering.

 According to the customers’ craft, it can be mounted to the protective atmosphere and heat resistant steel muffle tank and silicon carbide bladder, mainly use for bright heat treatment of all kinds of mould and small batch hardware products.

This product adopts the high efficiency and energy saving of fire-resistant insulation materials, heating up fast, furnace temperature uniformity is good, can meet different process requiremen


Product number

TMAX-1200DD

Type

Sintering muffle furnace

Max temperature

1200c

Working temperature

1100c

Chamber size

200×150×150mm

Voltage

220V/ 380V

Hz

50Hz/60Hz

Power supply

Single phase/Three phase

Heating element

High quality resistance wire

Temperature control

30 segments programmable and PID auto control

Heating rate

0-30 degree/min.

Temperature accuracy

±1 degree

Furnace structure

Double shell with fan cooling

Thermocouple

K type

Accessories

Gloves, clip,quartz boat,crucible



 Chamber size (DxWxH)

 12x8x8"

 16x12x12"

 Usable chamber space (DxWxH)

 10x7x7"

 14x11x11"

 Chamber capacity (cu ft)

 0.44

 1.33

 Maximum output

 4 kW

 9 kW

 Furnace dimensions (LxWxH)

 22x25x34"

 26x29x39"

 Shipping dimensions (LxWxH)

 28x28x36"

 34x37x46"

 Unit/shipping weight (Lb)

 530/620

 600/700












Standard Package

Part description


Quantity


Part image


muffle furnace

 1 pc

 Type S thermocouple

 1 pc

 Stainless steel tongs

 1 pc

 Spare heating element

2 pcs

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set
