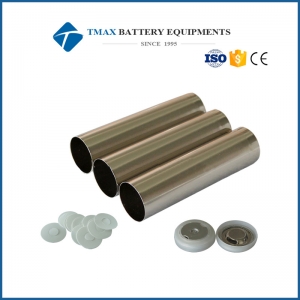

18650 Cell Case With Anti-Explosive Cap
Model Number:
TMAX-18650caseType:
Coin Cell Case/Spring/SpacerDimension(L*W*H):
18650 Cell CaseCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
18650 Cell Case With Anti-Explosive Cap
|
Specifications |
|
|
Cap |
Cap with Built-in PTC Thermistor for overcurrent protection |
|
Dimensions (Dia x Height) |
Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) Top Cap: 17.5mm(D) x 4.05mm(H) Top Insulator: 12.5mm(D) x 0.19mm(H) Bottom Insulator: 12.5mm(D) x 0.19mm(H) |
|
Materials |
Case and cap are made of Nicke plated A3 steel Seal O-ring and spacer are made of nylon Insulating gasket is made of PET |
|
Weight |
10 g/pcs |
|
Note |
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode) |
