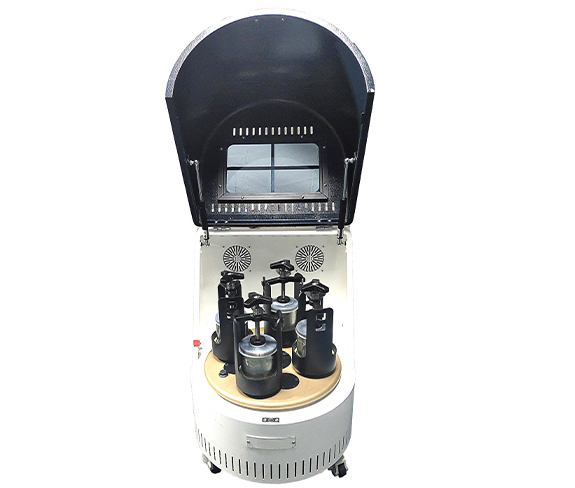

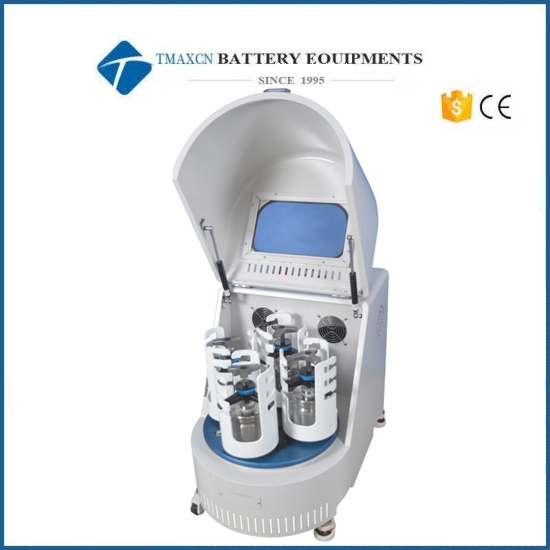

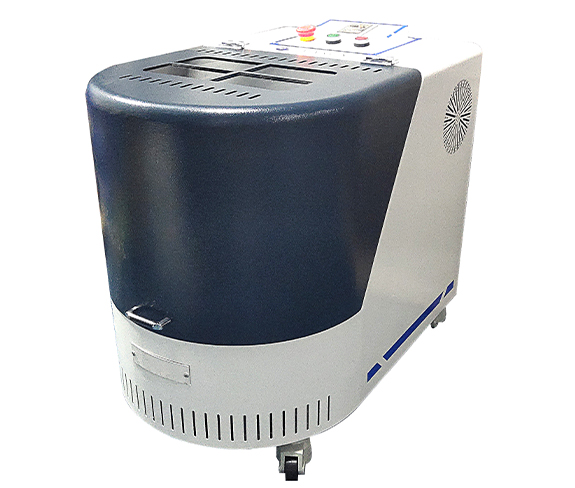

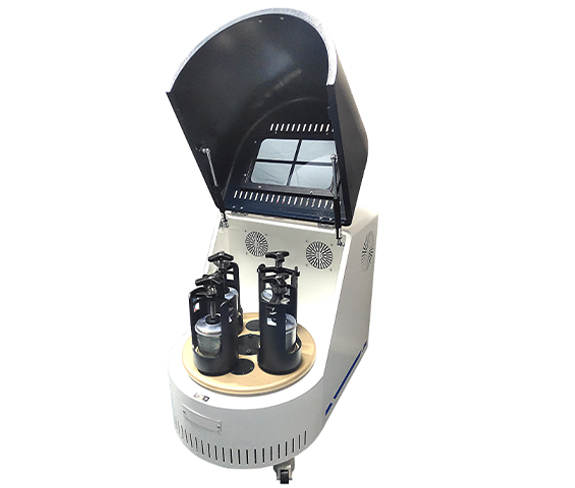

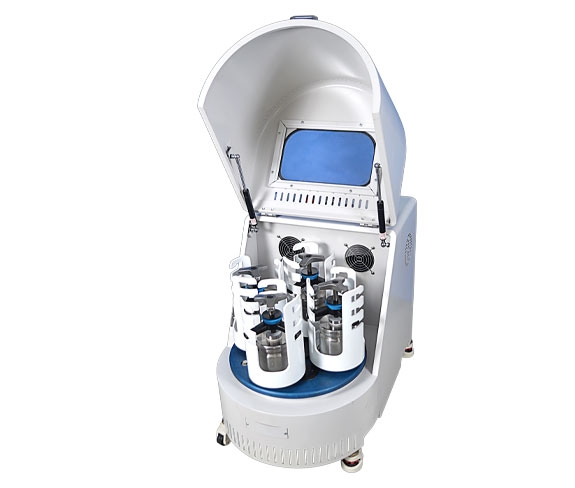

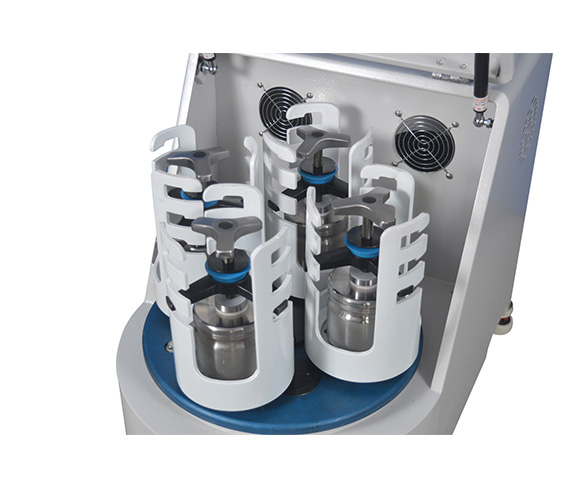

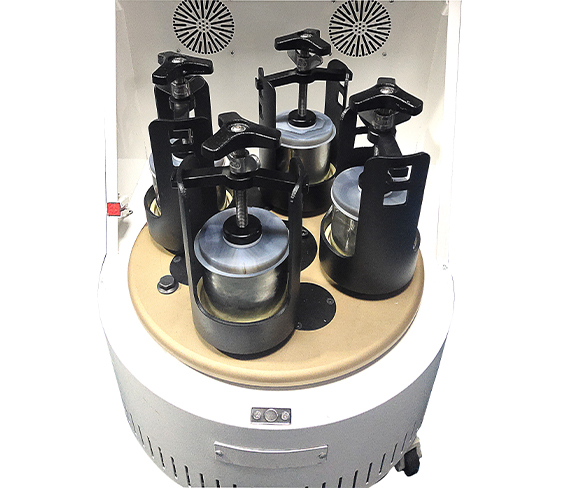

200ml-16L Vertical Semicircular Planetary Ball Mill With Standard Jar & Vacuum Jar
Model Number:
TMAX-PBMType:
Planetary Ball MillCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
200ml-16L Vertical Semicircular Planetary Ball Mill With Standard Jar & Vacuum Jar
Feature

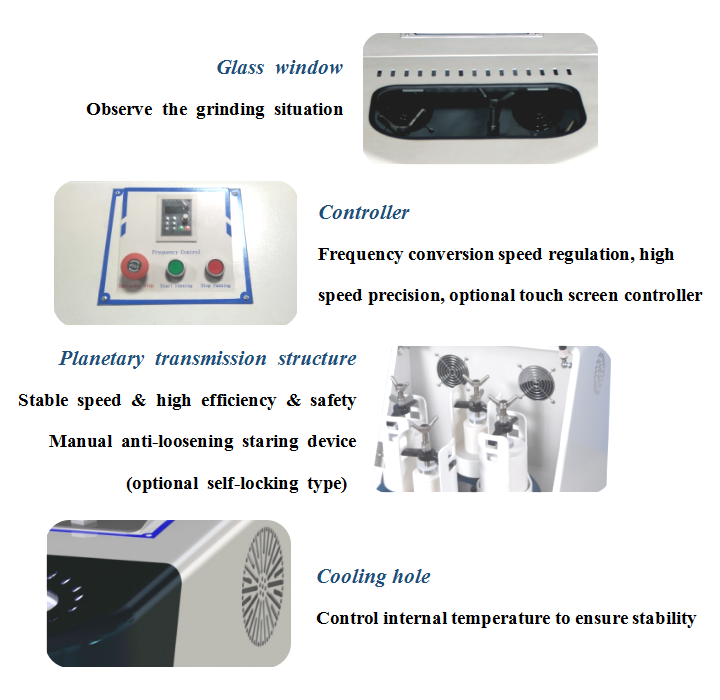

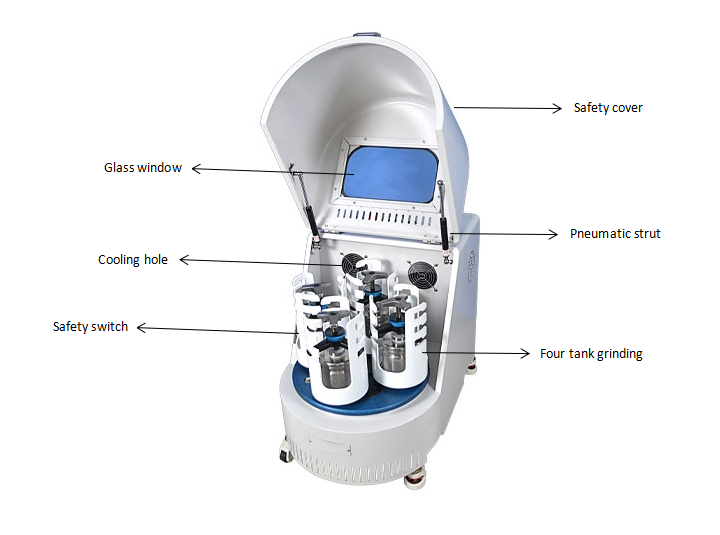

The equipment adopts professional appearance design, the shell is stamped and formed by high-precision molds, which are generous and exquisite, high-end and stable, the planetary disc is formed by integral processing, the structural components are processed by CNC processing technology, and the transmission gear is made of high temperature and wear resistant non-metal and metal combination precision The gear and the nitriding metal heat treatment process ensure that the rotating shaft is wear-resistant and prevent the shaft from breaking, and ensure that the equipment runs smoothly and quietly at high speed. The grinding pot watching device keeps a close eye on the grinding pot while simultaneously self-locking and preventing loosening, which is convenient, safe and reliable. , The outer shell carries out product color matching, gives the product new vitality, activates the new life of the product, conforms to the international and domestic aesthetic needs, and complies with ergonomics.
Product performance
Transfer method |
Gear drive |
Working method |
Two or four ball milling tanks work simultaneously |
Maximum sample volume |
Two-thirds of the volume of the ball mill |
Ball mill tank volume |
0.05L-4L per tank, total volume 0.2L-16L |
Feed size |
Soil material≤10mm, other materials≤3mm |
Discharge size |
The smallest can reach 0.1um |
Speed ratio (revolution: rotation) |
See the main parameters of planetary ball mill for details |
Speed (rotation) |
See the main parameters of planetary ball mill for details |
Speed mode |
Brand inverter stepless speed regulation |
Technical parameter
Model number |
Volume (L) |
Can be equipped with ball mill tank specifications |
Quantity (set) |
Matching ball mill tank |
Standard ball mill tank fixation and anti-loosening device |
PBM-0.2A |
0.2 |
10-50ml |
4 |
Can be equipped with 10ml vacuum ball mill tank |
Manual |
PBM-0.4A |
0.4 |
50-100ml |
4 |
Can be equipped with 50ml vacuum ball mill tank |
Manual |
PBM-1A |
1 |
50-250ml |
4 |
Can be equipped with 50ml-100ml vacuum ball mill tank |
Manual |
PBM-2A |
2 |
50-500ml |
4 |
Can be equipped with 50ml-250ml vacuum ball mill tank |
Manual |
PBM-4A |
4 |
250-1000ml |
4 |
Can be equipped with 50ml-1000ml vacuum ball mill tank |
Manual |
PBM-8A |
8 |
1-2L |
4 |
Can be equipped with 50ml-2000ml vacuum ball mill tank |
Manual |
PBM-10A |
10 |
1-2.5L |
4 |
Can be equipped with 1-2L vacuum ball mill tank |
Manual |
PBM-12A |
12 |
1-3L |
4 |
Can be equipped with 1-2L vacuum ball mill tank |
Manual |
PBM-16A |
16 |
2-4L |
4 |
Can be equipped with 1-3L vacuum ball mill tank |
Manual |
Model number |
Equipment power supply (single phase) |
Motor power (KW) |
Total running time (min) |
Positive and negative alternate running time (min) |
Adjustable speed revolution (rpm) |
Adjustable speed rotation (rpm) |
PBM-0.2A |
Single phase 220V-50Hz |
0.09 |
1-9999 |
1-999 |
60-580 |
120-930 |
PBM-0.4A |
Single phase 220V-50Hz |
0.25 |
1-9999 |
1-999 |
47-465 |
94-930 |
PBM-1A |
Single phase 220V-50Hz |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
PBM-2A |
Single phase 220V-50Hz |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
PBM-4A |
Single phase 220V-50Hz |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
PBM-8A |
Single phase 220V-50Hz |
1.5 |
1-9999 |
1-999 |
35-320 |
70-640 |
PBM-10A |
Single phase 220V-50Hz |
1.5 |
1-9999 |
1-999 |
35-320 |
70-640 |
PBM-12A |
Single phase 220V-50Hz |
2.2 |
1-9999 |
1-999 |
35-320 |
70-640 |
PBM-16A |
Three phases 380V-50Hz |
3 |
1-9999 |
1-999 |
32-255 |
70-510 |
Model number |
Standard panel (optional smart, touch screen) |
Lubrication method |
Speed mode |
Weight (kg) |
Dimensions (L*W*H, mm) |
Noise≤db |
PBM-0.2A |
Normal |
Grease |
Frequency |
18 |
430*250*270 |
50±5 |
PBM-0.4A |
Normal |
Lubricating oil |
Frequency |
26 |
520*300*420 |
55±5 |
PBM-1A |
Normal |
Grease |
Frequency |
74 |
740*470*600 |
60±5 |
PBM-2A |
Normal |
Grease |
Frequency |
74 |
740*470*600 |
60±5 |
PBM-4A |
Normal |
Grease |
Frequency |
80 |
740*470*600 |
60±5 |
PBM-8A |
Normal |
Grease |
Frequency |
132 |
870*560*680 |
60±5 |
PBM-10A |
Normal |
Grease |
Frequency |
138 |
870*560*680 |
60±5 |
PBM-12A |
Normal |
Grease |
Frequency |
140 |
870*560*680 |
60±5 |
PBM-16A |
Normal |
Grease |
Frequency |
200 |
940*600*710 |
65±5 |
