Lab Battery Filling Machine With Electrolyte Filling Pump
Model Number:
TMAX-SFMCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime support:
Xiamen PortPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

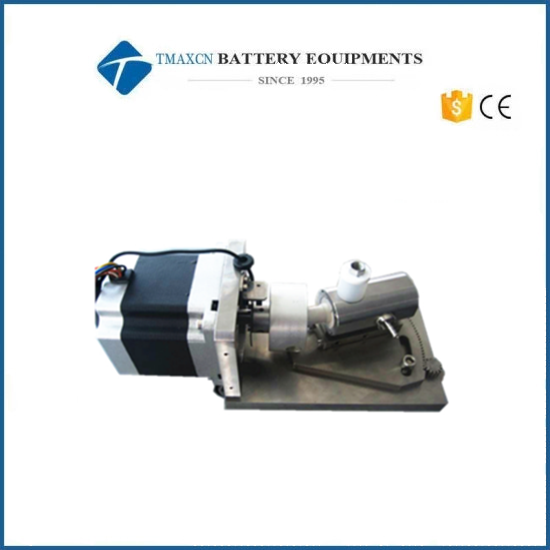

Lab Battery Filling Machine With Electrolyte Filling Pump
Features

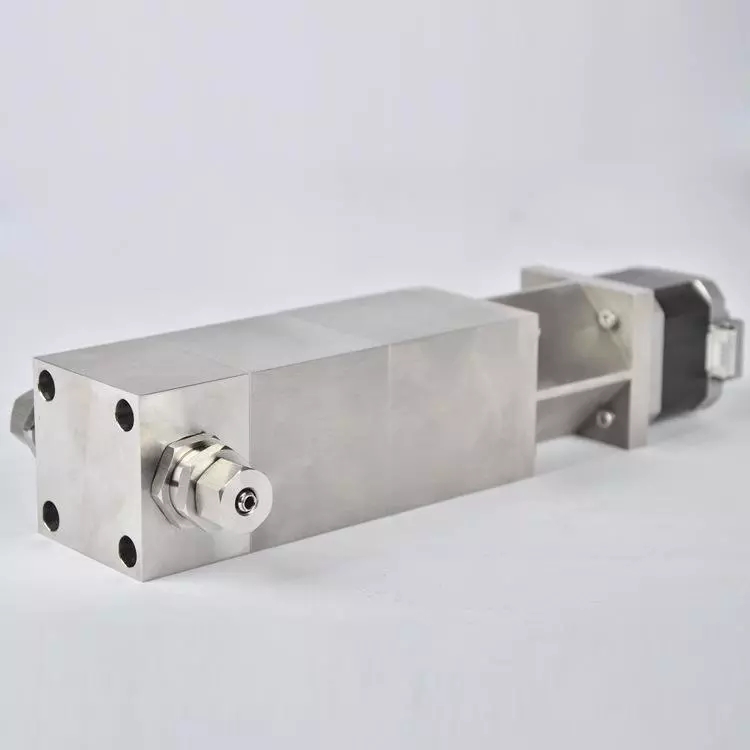

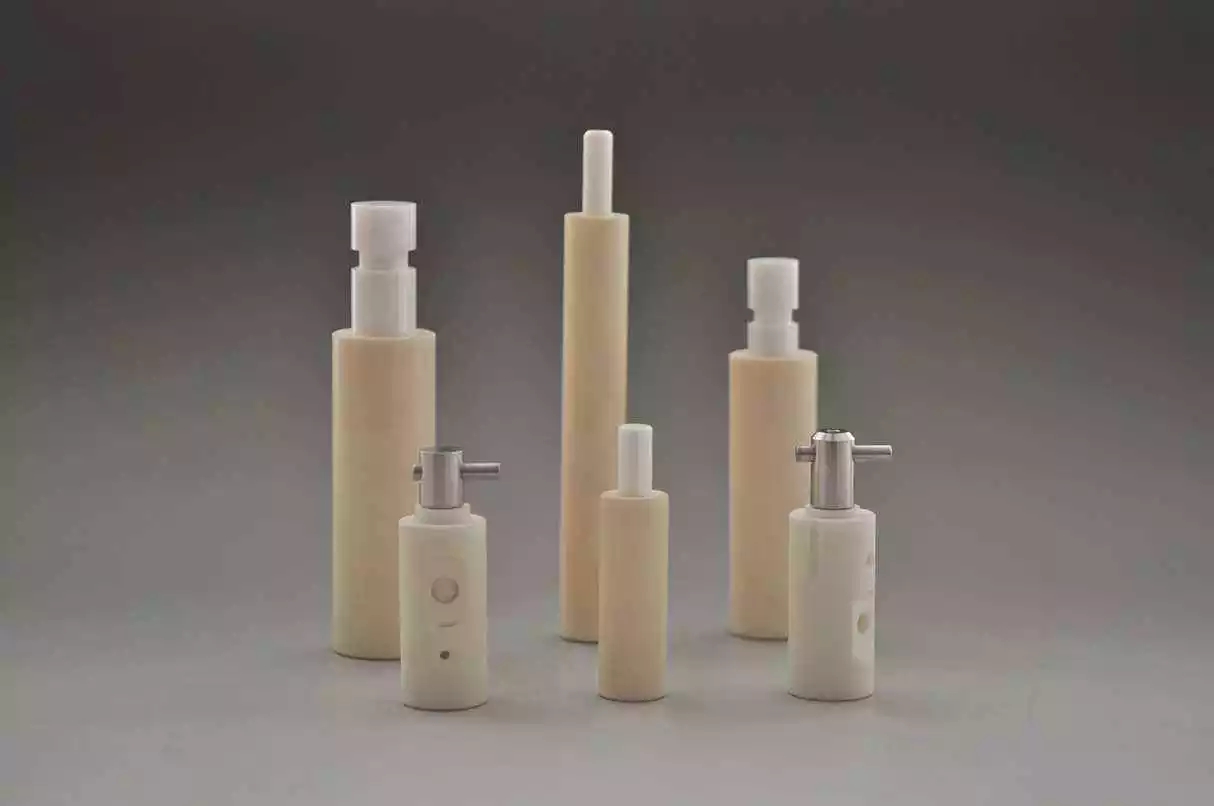

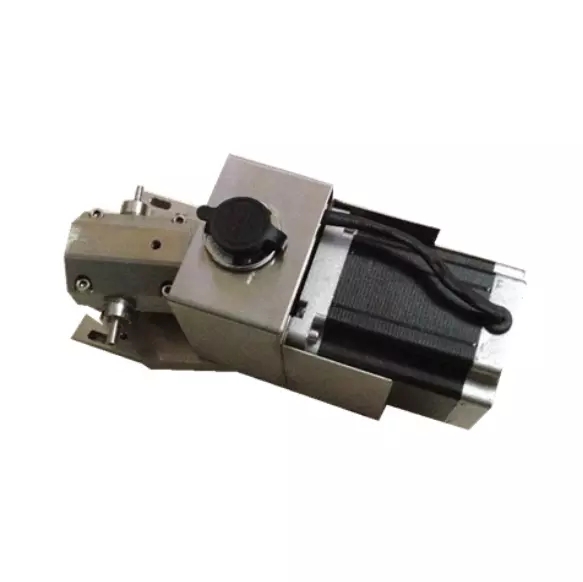

The liquid injection pump is composed of two parts: the electric control box and the pump body. The valve core of the pump body is carefully made of zirconia material, which has the characteristics of long wear-resistant service life. The structural part is made of 304 stainless steel, the key sealing part is made of Te-flon material, which does not need to use the sealing ring again, and has the characteristics of good sealing and strong corrosion resistance;
The electric control part adopts the brand products: leisai motor, Willem human-machine interface, PLC high-quality brand, etc. Through the human-computer interface to set the necessary parameters, the operation is simple and fast, and the function is strong.
Processing Action Sequence:
Load the battery into the battery tray (manual operation)
↓
Start the liquid injection procedure, and inject the electrolyte into the battery according to the amount (automatic)
↓
Liquid injection process after automatic program start
↓
First liquid injection
↓
Secondary liquid injection
Features
1.Anti corrosion, special high wear-resistant ceramic pump head long life design, key parts of imported materials, anti-corrosion, reliable and durable;
2.With counting function;
3.Easy to use, no sealing ring, good sealing performance, no influence on accuracy due to sealing ring problems;
4.Easy to maintain, relatively simple to maintain;
5.Control mode: external PLC can be used for automatic control or external foot switch for manual operation.
Technical Parameter
Voltage |
AC220V/50Hz |
Power
|
40W
|
Liquid inlet and outlet pipe |
8mm liquid inlet; 6mm for liquid outlet; PE pipe |
Equipment capacity
|
10000-15000pcs per shift for 10 hours (refer to battery model 18650, capacity 2200mAh), liquid injection speed can be set according to process requirements and actual situation on site; |
liquid injection accuracy |
± 0.3%g |
Maximum liquid injection volume per second |
10ml per second |
Single liquid injection range |
0.1-3g (the maximum single liquid injection is 5g, the minimum is 0.1g) |
Working modes |
Manual operation, continuous automatic operation and external drive signal operation |
Machine structure |
Rotary valve structure |
Suitable viscosity range |
<10000CPS~500000CPS |
