Lab Pouch/Polymer Battery Cup/Case Punching Aluminum-Laminated Films Forming Machine

  • Model Number:

    EQ-MSK-PN120
  • Type:

    Pouch Forming Machine
  • Dimension(L*W*H):

    L360mm*W230mm*H340mm
  • Net Weight:

    46kg
  • Compliance:

    CE certificate
  • Warranty:

    1 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

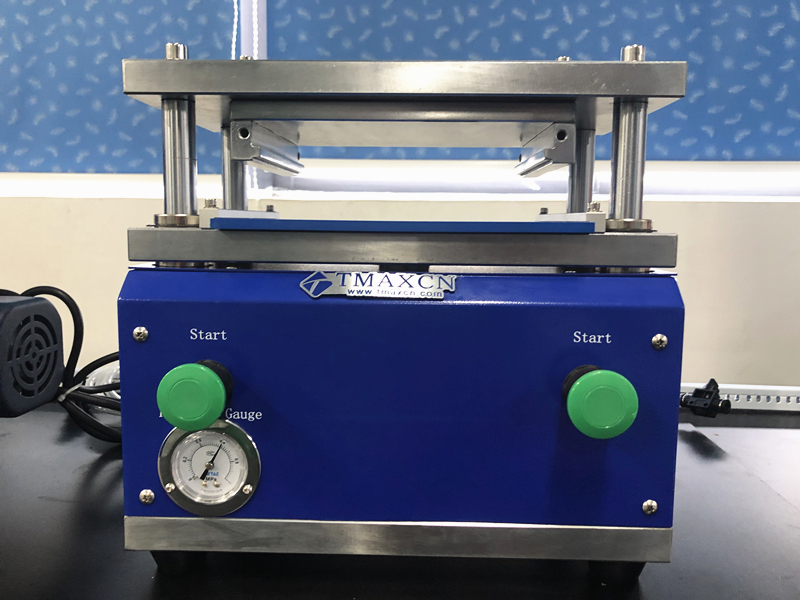

Lab Pouch/Polymer Battery Cup/Case Punching Aluminum-Laminated Films Forming Machine


MSK-PN120 is a compact gas-driven Aluminum Laminated Films pouch cell forming machine for pouch cell fabrication.


*It adopts double start button, which is safe and reliable.

*Four guide pillars are adopted to ensure smooth up and down sliding and high precision;

*It is simple and quick to change the die and adjust the drawing depth;

*Sheet aluminum plastic film molding, suitable for R & D and sample preparation applications;

*Cylinder driven, no need of electricity, forming pressure and forming speed can be adjusted;

*Compared with similar products, the same quality of aluminum-plastic film is deeper and more stable;

*Precise mold design, no crow's feet and collapse angle are found at all corners and around the products after molding;

*The mould material imported from Japan and high strength chromium steel are adopted, and the surface is treated by environmental protection electroplating and baking paint;

*The appearance is exquisite, and the sheet metal adopts solid geometry design, which is simple and beautiful;

*It is easy to operate, safe and reliable with small volume;


Specifications

Features

Pure pneumatic press with adjustable press speed and pressure.
No electrical parts.

Forming Die Size

Customized according to customer’s request, max. punching size: L65mm*W50mm

Air Pressure Requirement

0.5MPa
Air Compressor is not included

Max. Cup Depth to Punch

< 6.0 mm
Precision: ±0.05mm

Max. Punching Pressure

1 metric tons

AL Laminated Film

Thickness of Aluminum Laminated Film:  0.10 - 0.20 mm acceptable

Warranty

One Year limited warranty with lifetime support

Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Product Dimensions

L360mm*W230mm*H340mm;

Net Weight

46kg

pouch cell machine

             Punch Forming Machine

Pneumatic Forming Machine
