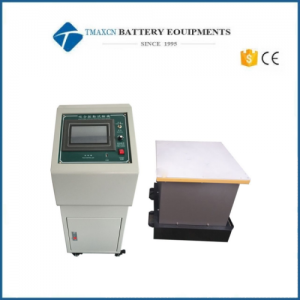

Laboratory Electromagnetic Vibration Tester Machine With Optional X/Y/Z Direction For Battery Safety Testing
Model Number:
TMAX-ZDTCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Laboratory Electromagnetic Vibration Tester Machine With Optional X/Y/Z Direction For Battery Safety Testing
Overview
This series of electromagnetic vibration table is specially designed for the test of false welding and false welding after the object under test of electronic products has been subjected to several vibrations and whether it can reach the ideal standard. , the various vibration environments encountered during the assembly, transportation and use execution stages are used to identify whether the product can withstand environmental vibrations. Development, quality control, manufacturing.
This equipment is a rare testing machine for you to improve product quality and reliability. It conducts low-frequency vibration tests, searches for resonance frequencies, and conducts vibration resistance and reliability tests in accordance with national standards and military standards. To assess the structural integrity and product quality reliability.
Product Features
1. Vibration frequency: 1~600HZ
2. Vibration mode: vertical + horizontal + front and rear
Equipment size
Table size: 500*500mm (customized)
Technical parameters
Vibration direction |
X/Y/Z |
Maximum load |
50 (KG) |
Vibration power |
3.6kw |
Amplitude range |
0~5mm |
Maximum acceleration |
20g |
Vibration waveform |
sine wave |
Time control |
minutes/hours |
Power supply voltage |
220 |
Maximum current |
30A |
