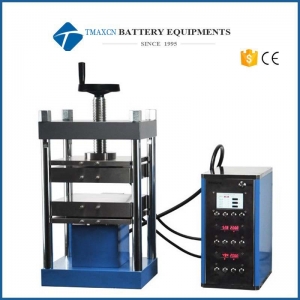

Laboratory Electronic Industry RT-300c Widen Flat Automatic Hot Pellet Press Machine
Model Number:
TMAX-RT-300cDimension(L*W*H):
700*400*600mmNet Weight:
About 52kgCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Laboratory Electronic Industry RT-300c Widen Flat Automatic Hot Pellet Press Machine
Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Advantages
a.Small size, light weight,No oil, easy to carry.
b.High speed steel imported from Japan
c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.
d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage
Technical Parameter
|
Product Name |
Lab Pressing Machine |
|
Type |
TMAX-RT-300c |
|
Pressure range |
0-40T |
|
Pressurization process |
Program Pressurized--Holding pressure--Pressure relief |
|
Holding pressure |
0-999s |
|
Thermostat temperature control |
RT-600℃ |
|
Abrasive heating temperature |
RT-300℃ |
|
Temperature control accuracy |
0.1℃ |
|
Insulation method |
Imported heating plate |
|
Cooling method |
Rapid cooling water |
|
Mold size |
Double flat 300*300mm(M*N) |
|
Main engine Size |
380*350*600mm(K*P*H) |
|
over dimension |
700*400*600mm(L*W*H) |
|
Power |
220V/3000W |
|
Main engine weight |
52kg |
|
picture |
|
Pressure conversion
|
Actual pressure |
System pressure |
Double display pressure gauge |
|
0.2[Tons] |
1.25[MPa] |
|
|
0.4[Tons] |
2.51[MPa] |
|
|
0.6[Tons] |
3.77[MPa] |
|
|
0.8[Tons] |
5.03[MPa] |
|
|
1[Tons] |
6.28[MPa] |
|
|
2[Tons] |
12.5[MPa] |
|
|
3[Tons] |
18.8[MPa] |
|
|
4[Tons] |
25.1[MPa] |
|
|
5[Tons] |
31.4[MPa] |
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
