Prismatic Cell Vacuum Electrolyte Injection Injector Machine For Electrolyte Filling and Absorption

1. Equipment Overview

This machine is suitable for the electrolyte filling and absorption process of prismatic cells.

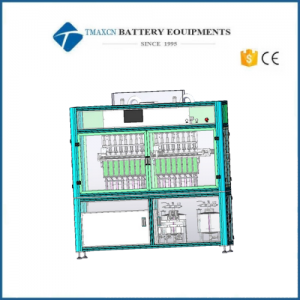

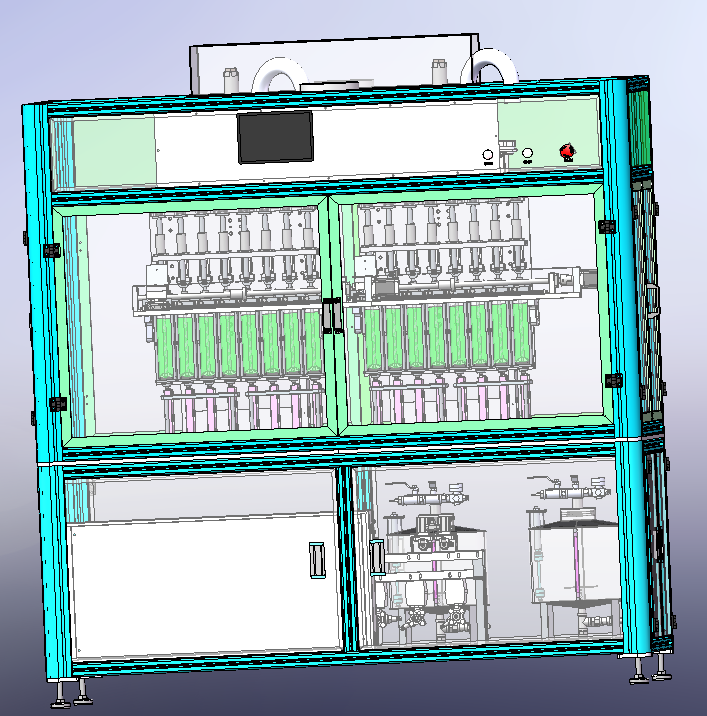

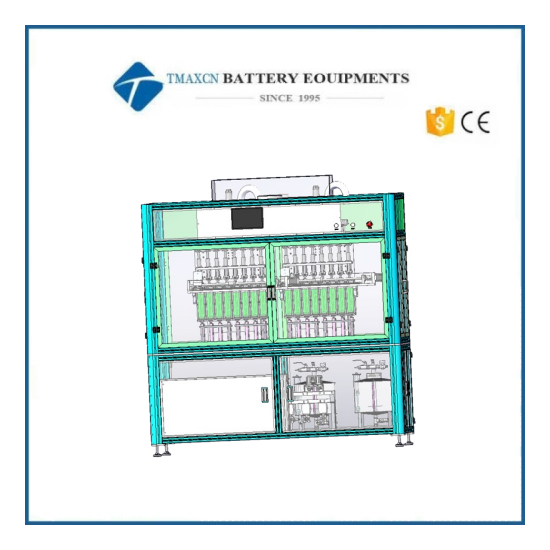

Equipment Image (for reference only)

2. Process Flow

1. Manually place the prismatic cell into the fixture.

2. Start the equipment.

3. The liquid storage cup presses down to contact the cell's filling nozzle.

4. The sealing rod opens and vacuuming begins simultaneously.

5. Once the vacuum is achieved, the sealing rod seals the cell.

6. The liquid storage cup starts the electrolyte filling process.

7. After filling, the sealing rod enters the cell to seal the filling port.

8. Alternately apply vacuum and nitrogen until all electrolyte in the storage cup is absorbed.

9. Open the absorption box.

10. The absorption box retracts.

11. Manually remove the cell after filling.

3. Technical Parameters

No.	Equipment Parameter	Specification	Remarks
1	Applicable Battery Range	Width: 148mm-173mm Height: 91mm-115mm Thickness: 26.5mm-45mm
2	Upper and Lower Storage Tanks	Volume: approximately 1.2L
3	Fixtures	Tray can hold 16 prismatic cells
4	Electric Pump	150g ceramic single-head electric pump, no dynamic seal	Adjustable output: 10-150ml per pump head
5	Single Pump Accuracy	Filling accuracy: ±0.75%	Filling pump
6	Single Pump Dimensions	480mm x 150mm x 160mm (approximate dimensions)	Subject to actual product
7	Production Efficiency	1ppm
8	Uptime Rate	≥97% (excluding faults caused by consumables)

4. Main Component Configuration

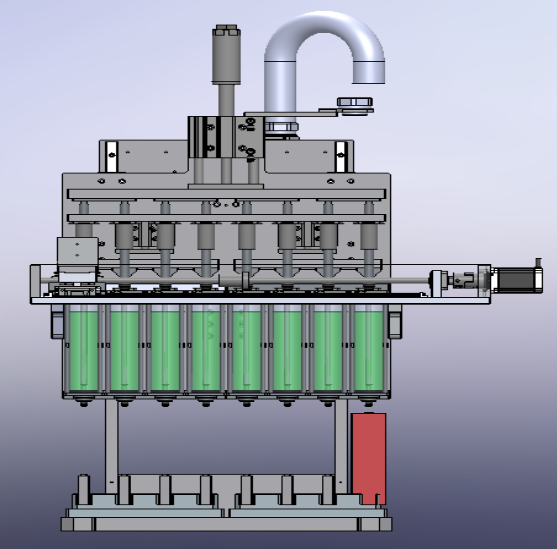

Electrolyte Absorption Structure Diagram

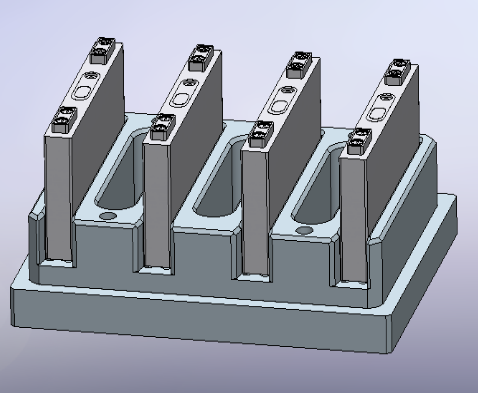

Battery Fixture Diagram

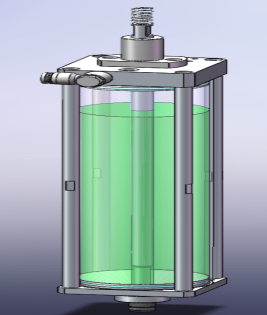

Liquid Storage Cup Diagram

5. Major Component Brands and Spare Parts

Main Component Configuration

No.	Name	Brand
1	PLC	Xinjie / Inovance / Panasonic or equivalent brands
2	Touch Screen	Xinjie / Weinview / Kinco or equivalent brands
3	Pressure Relief Valve	Airtac or equivalent brands
4	Solenoid Valve	Airtac or equivalent brands
5	Guide Rail Slider	Hiwin or equivalent brands

Spare Parts

No.	Name	Specification	Quantity
1	O-ring EPDM Sealing Ring	Line Diameter 2.0 O-ring (EPDM)	2
2	O-ring EPDM Sealing Ring	Line Diameter 2.0 O-ring (EPDM)	1
3	X-shaped Sealing Ring	X-shaped Sealing Ring (Line Diameter 2.62-Inner 9.19) (EPDM)	1
4	X-shaped Sealing Ring	X-shaped Sealing Ring (Line Diameter 1.78-Inner 9.52) (EPDM)	1
5	Custom Sealing Ring	Outer Diameter 12, Inner Diameter 3, Height 12 (EPDM)	2
