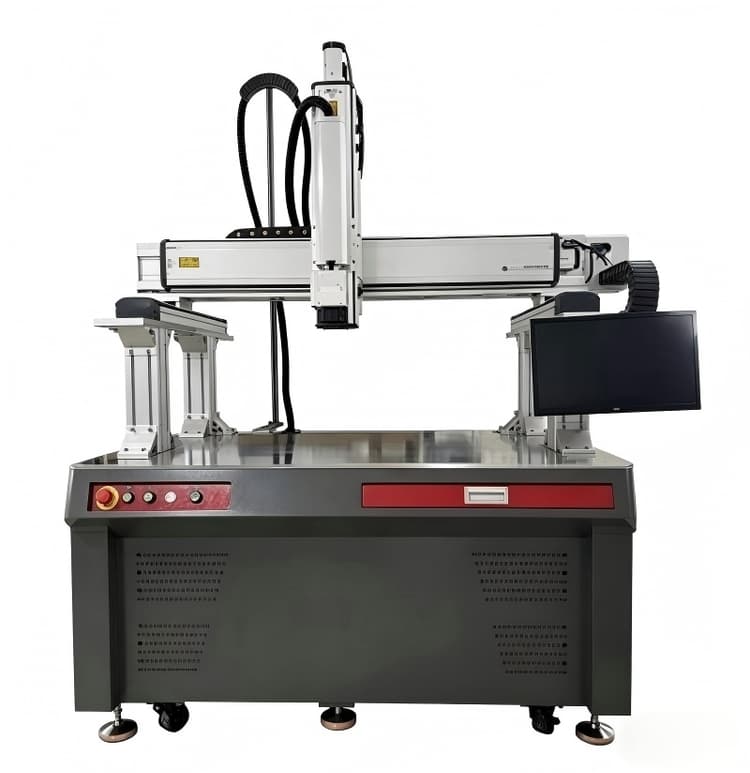

3000W Fiber Laser Busbar Welding Machine for EV Battery Packs

3000W Fiber Laser Busbar Welding Machine for EV Battery Packs

Model Number:
TMAX-HY-C3000W
Input Power:
3000W
Dimension(L*W*H):
1.58*0.9*1.6m
Net Weight:
360KG
Compliance:
CE Certified
Warranty:
One years limited warranty with lifetime technical support
MOQ:
1
Place of Origin:
China
Payment:
L/C D/A D/P T/T Western Union
Email:
[email protected]
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

3000W Fiber Laser Busbar Welding Machine for EV Battery Packs



Ⅰ、Introduction:

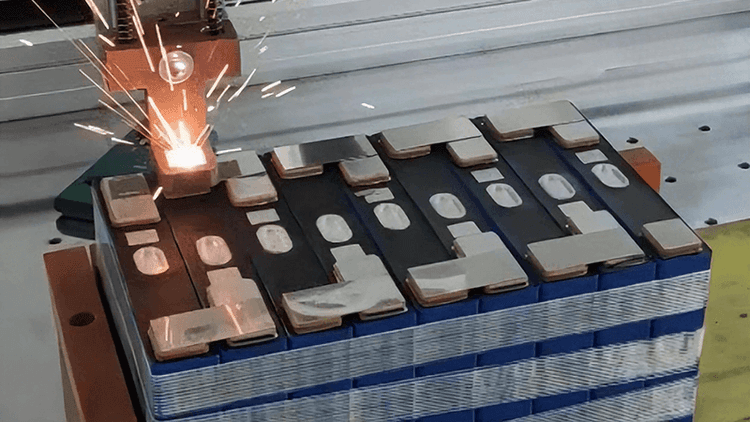

Suitable for laser welding of new energy lithium batteries. Fast welding speed, precise welding position, and high repeatability accuracy of 0.05mm.

Equipped with servo motor, large spot galvanometer, stable laser performance gantry tooling.

The welding speed is fast, the heat affected zone is small, and it can effectively improve the accuracy of the workpiece. The weld seam is smooth, free of impurities, uniform and dense, and does not require manual polishing.

Can precisely control the high-precision positioning of focused light points. Improve welding efficiency, reduce working hours, and lower production costs.

Ⅱ、Equipment features:

Equipped with servo motor, large spot galvanometer, stable laser performance, gantry type fixture with fast welding speed and small heat affected zone, it can effectively improve the accuracy of the workpiece. The weld seam is smooth and free of impurities, uniform and dense, and does not require manual polishing. It can precisely control the focusing light point for high-precision positioning, improve welding efficiency, reduce working hours, and lower production costs.

 Ⅲ、Fiber optic series welding machine configuration:

Model TMAX-HY-C3000W Brand
Laser system Continuous laser –C3000W TMAX
Transmission mechanism 1 x10 meter fiber optic cable TMAX
Welding head Fiber optic galvanometer welding head TMAX
Control mode Industrial computer, specialized galvanometer welding software TMAX
Locate mode Semiconductor red light, CCD monitoring and positioning TMAX
Sports mechanism Gantry X/Y/Z (left and right, front and rear, upper and lower) axis motor guide rail（800mm*600mm*400mm） TMAX
Gas Shield Synchronous argon or nitrogen protection TMAX
Refrigeration system Integrated constant temperature machine internal circulation cooling water Bingyue
Cabinet Main machine:1580*900*1600mm、

Water tank:530*450*700mm

 TMAX

Ⅳ、Technical parameters:

Model TMAX-HY-C3000W
Maximum laser power 3000W
Output center wavelength 1070±10
Welding method Continuous, spot welding
Laser welding seam 0.2-5mm
Maximum welding depth 5mm（Stainless steel）
Fiber Length 10m
Host size 1.58*0.9*1.6m
Working voltage 380V/32A
Operation temperature 0-45℃
Weight 360KG

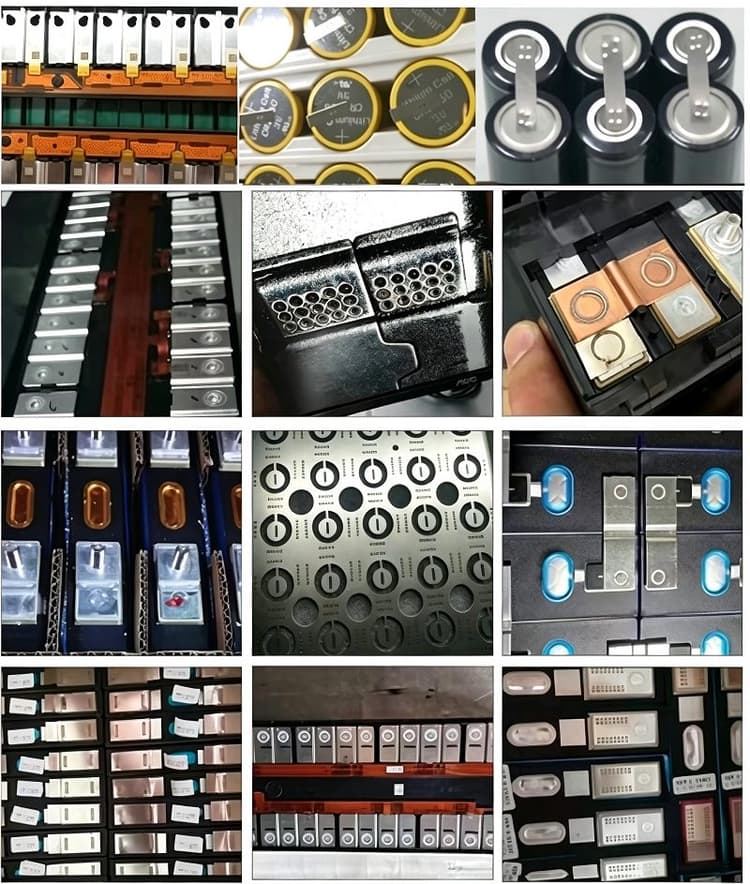

 Sample Display:
