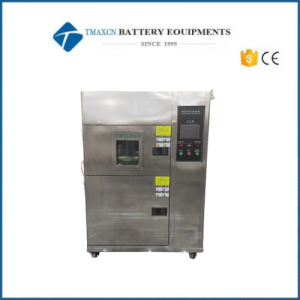

Thermal Shock Test Chamber
A Thermal Shock Test Chamber is a specialized testing device designed to evaluate the performance and durability of materials, components, or products under rapid and extreme temperature changes. This chamber simulates conditions where rapid thermal expansion and contraction occur, helping manufacturers identify potential weaknesses or failures in their products. Below is a detailed overview of thermal shock test chambers, their design, applications, innovations, challenges, and best practices.
●1. Overview of Thermal Shock Test Chambers
Thermal shock test chambers are used to subject samples to sudden and significant temperature variations, typically cycling between hot and cold zones. These tests help determine how well a product can withstand realworld conditions such as sudden environmental changes (e.g., moving from a heated indoor space to freezing outdoor temperatures).
Key features:
Dualzone design with separate hot and cold compartments.
Rapid transfer mechanisms for quick temperature transitions.
Precise control over temperature ranges, rates of change, and dwell times.
●2. Components of a Thermal Shock Test Chamber
A. Temperature Zones
Hot Zone: A compartment capable of reaching high temperatures (e.g., +150°C to +200°C).
Cold Zone: A compartment capable of reaching low temperatures (e.g., 70°C to 100°C).
B. Sample Transfer Mechanism
Automated systems (e.g., elevators, shuttles) to move samples between hot and cold zones quickly.
Adjustable speeds to control the rate of temperature change.
C. Control System
Programmable interface for setting temperature profiles, dwell times, and cycle counts.
Realtime monitoring and data logging capabilities.
D. Safety Features
Overtemperature protection to prevent damage to the chamber or samples.
Emergency stop buttons for immediate shutdown if needed.
Ventilation systems to remove condensation or hazardous gases.
●3. Applications of Thermal Shock Test Chambers
A. Electronics Industry
Testing circuit boards, semiconductors, and other electronic components for reliability under thermal stress.
Identifying solder joint failures or material fatigue.
B. Automotive Industry
Evaluating engine components, sensors, and batteries for performance in varying climates.
Ensuring safety and durability of vehicle parts during rapid temperature changes.
C. Aerospace Industry
Assessing materials and components used in aircraft for resistance to extreme temperature fluctuations at high altitudes.
Simulating launch and reentry conditions for spacecraft.
D. Consumer Goods
Testing appliances, packaging materials, and household items for durability in diverse environments.
Ensuring product longevity and customer satisfaction.
A. Faster Transfer Times
Advanced shuttle systems reduce the time between hot and cold zones, increasing the severity of thermal shock.
Improved precision in temperature control during transitions.
B. MultiZone Designs
Incorporation of additional temperature zones for more complex testing scenarios.
Ability to simulate gradual or stepwise temperature changes.
C. Enhanced Data Acquisition
Integration of IoTenabled sensors for realtime monitoring of temperature, humidity, and other parameters.
AIdriven analytics for predictive failure analysis and process optimization.
D. EcoFriendly Solutions
Energyefficient cooling and heating systems to reduce operational costs.
Recyclable materials and reduced refrigerant usage for lower environmental impact.
●5. Challenges in Using Thermal Shock Test Chambers
A. Equipment Calibration
Regular calibration is essential to ensure accurate and consistent results.
Calibration procedures can be timeconsuming and costly.
B. Maintenance Requirements
Frequent maintenance is necessary to address wear and tear on transfer mechanisms and temperature control systems.
Replacement of seals, gaskets, and other components may be required periodically.
C. Standardization
Compliance with various international testing standards (e.g., IEC 600682, MILSTD810) can be challenging due to differing requirements.
●6. Best Practices for Using Thermal Shock Test Chambers
A. Adherence to Standards
Follow established testing protocols to ensure validity and comparability of results.
Stay updated on evolving regulations and industry standards.
B. Safety Protocols
Conduct thorough risk assessments before each test.
Use personal protective equipment (PPE) when handling samples or operating the chamber.
Train personnel on emergency procedures and equipment usage.
C. Equipment Maintenance
Perform routine inspections and maintenance to identify and address issues early.
Replace wornout components promptly to avoid malfunctions.
D. Documentation
Maintain detailed records of test parameters, results, and observations.
Use standardized reporting formats for easy analysis and comparison.
●7. Importance of Thermal Shock Test Chambers
Thermal shock test chambers play a critical role in ensuring the reliability and durability of products across various industries. By simulating extreme temperature changes, these chambers help manufacturers identify potential failure points, optimize designs, and improve overall product quality. As global demand for highperformance and longlasting products grows, the importance of rigorous thermal testing becomes increasingly significant.
●8. Conclusion
Effective use of thermal shock test chambers requires a combination of advanced technology, precise testing protocols, and stringent safety measures. By addressing challenges such as calibration, maintenance, and standardization, and adopting innovations like faster transfer times and enhanced data acquisition, manufacturers can produce more reliable and durable products.
- 2025-10-14
Xiamen Tmax Battery Equipments Limited was set up as a manufacturer in 1995, dealing with lithium battery equipments, technology, etc. We have total manufacturing facilities of around 200000 square foot and more than 230 staff. Owning a group of experie-nced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
A Thermal Shock Test Chamber is a specialized testing device designed to evaluate the performance and durability of materials, components, or products under rapid and extreme temperature changes. This chamber simulates conditions where rapid thermal expansion and contraction occur, helping manufacturers identify potential weaknesses or failures in their products. Below is a detailed overview of thermal shock test chambers, their design, applications, innovations, challenges, and best practices.
●1. Overview of Thermal Shock Test Chambers
Thermal shock test chambers are used to subject samples to sudden and significant temperature variations, typically cycling between hot and cold zones. These tests help determine how well a product can withstand realworld conditions such as sudden environmental changes (e.g., moving from a heated indoor space to freezing outdoor temperatures).
Key features:
Dualzone design with separate hot and cold compartments.
Rapid transfer mechanisms for quick temperature transitions.
Precise control over temperature ranges, rates of change, and dwell times.
●2. Components of a Thermal Shock Test Chamber
A. Temperature Zones
Hot Zone: A compartment capable of reaching high temperatures (e.g., +150°C to +200°C).
Cold Zone: A compartment capable of reaching low temperatures (e.g., 70°C to 100°C).
B. Sample Transfer Mechanism
Automated systems (e.g., elevators, shuttles) to move samples between hot and cold zones quickly.
Adjustable speeds to control the rate of temperature change.
C. Control System
Programmable interface for setting temperature profiles, dwell times, and cycle counts.
Realtime monitoring and data logging capabilities.
D. Safety Features
Overtemperature protection to prevent damage to the chamber or samples.
Emergency stop buttons for immediate shutdown if needed.
Ventilation systems to remove condensation or hazardous gases.
●3. Applications of Thermal Shock Test Chambers
A. Electronics Industry
Testing circuit boards, semiconductors, and other electronic components for reliability under thermal stress.
Identifying solder joint failures or material fatigue.
B. Automotive Industry
Evaluating engine components, sensors, and batteries for performance in varying climates.
Ensuring safety and durability of vehicle parts during rapid temperature changes.
C. Aerospace Industry
Assessing materials and components used in aircraft for resistance to extreme temperature fluctuations at high altitudes.
Simulating launch and reentry conditions for spacecraft.
D. Consumer Goods
Testing appliances, packaging materials, and household items for durability in diverse environments.
Ensuring product longevity and customer satisfaction.
A. Faster Transfer Times
Advanced shuttle systems reduce the time between hot and cold zones, increasing the severity of thermal shock.
Improved precision in temperature control during transitions.
B. MultiZone Designs
Incorporation of additional temperature zones for more complex testing scenarios.
Ability to simulate gradual or stepwise temperature changes.
C. Enhanced Data Acquisition
Integration of IoTenabled sensors for realtime monitoring of temperature, humidity, and other parameters.
AIdriven analytics for predictive failure analysis and process optimization.
D. EcoFriendly Solutions
Energyefficient cooling and heating systems to reduce operational costs.
Recyclable materials and reduced refrigerant usage for lower environmental impact.
●5. Challenges in Using Thermal Shock Test Chambers
A. Equipment Calibration
Regular calibration is essential to ensure accurate and consistent results.
Calibration procedures can be timeconsuming and costly.
B. Maintenance Requirements
Frequent maintenance is necessary to address wear and tear on transfer mechanisms and temperature control systems.
Replacement of seals, gaskets, and other components may be required periodically.
C. Standardization
Compliance with various international testing standards (e.g., IEC 600682, MILSTD810) can be challenging due to differing requirements.
●6. Best Practices for Using Thermal Shock Test Chambers
A. Adherence to Standards
Follow established testing protocols to ensure validity and comparability of results.
Stay updated on evolving regulations and industry standards.
B. Safety Protocols
Conduct thorough risk assessments before each test.
Use personal protective equipment (PPE) when handling samples or operating the chamber.
Train personnel on emergency procedures and equipment usage.
C. Equipment Maintenance
Perform routine inspections and maintenance to identify and address issues early.
Replace wornout components promptly to avoid malfunctions.
D. Documentation
Maintain detailed records of test parameters, results, and observations.
Use standardized reporting formats for easy analysis and comparison.
●7. Importance of Thermal Shock Test Chambers
Thermal shock test chambers play a critical role in ensuring the reliability and durability of products across various industries. By simulating extreme temperature changes, these chambers help manufacturers identify potential failure points, optimize designs, and improve overall product quality. As global demand for highperformance and longlasting products grows, the importance of rigorous thermal testing becomes increasingly significant.
●8. Conclusion
Effective use of thermal shock test chambers requires a combination of advanced technology, precise testing protocols, and stringent safety measures. By addressing challenges such as calibration, maintenance, and standardization, and adopting innovations like faster transfer times and enhanced data acquisition, manufacturers can produce more reliable and durable products.
If you're involved in designing, operating, or improving thermal shock test chambers, consider factors such as equipment selection, process optimization, and technological advancements. For further details or assistance, feel free to ask!
