18650 Cylindrical Cell Lab Assembly Line For Lab Research
Model Number:
TMAX-CCALCompliance:
CE CertifiedWarranty:
One year limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western Union

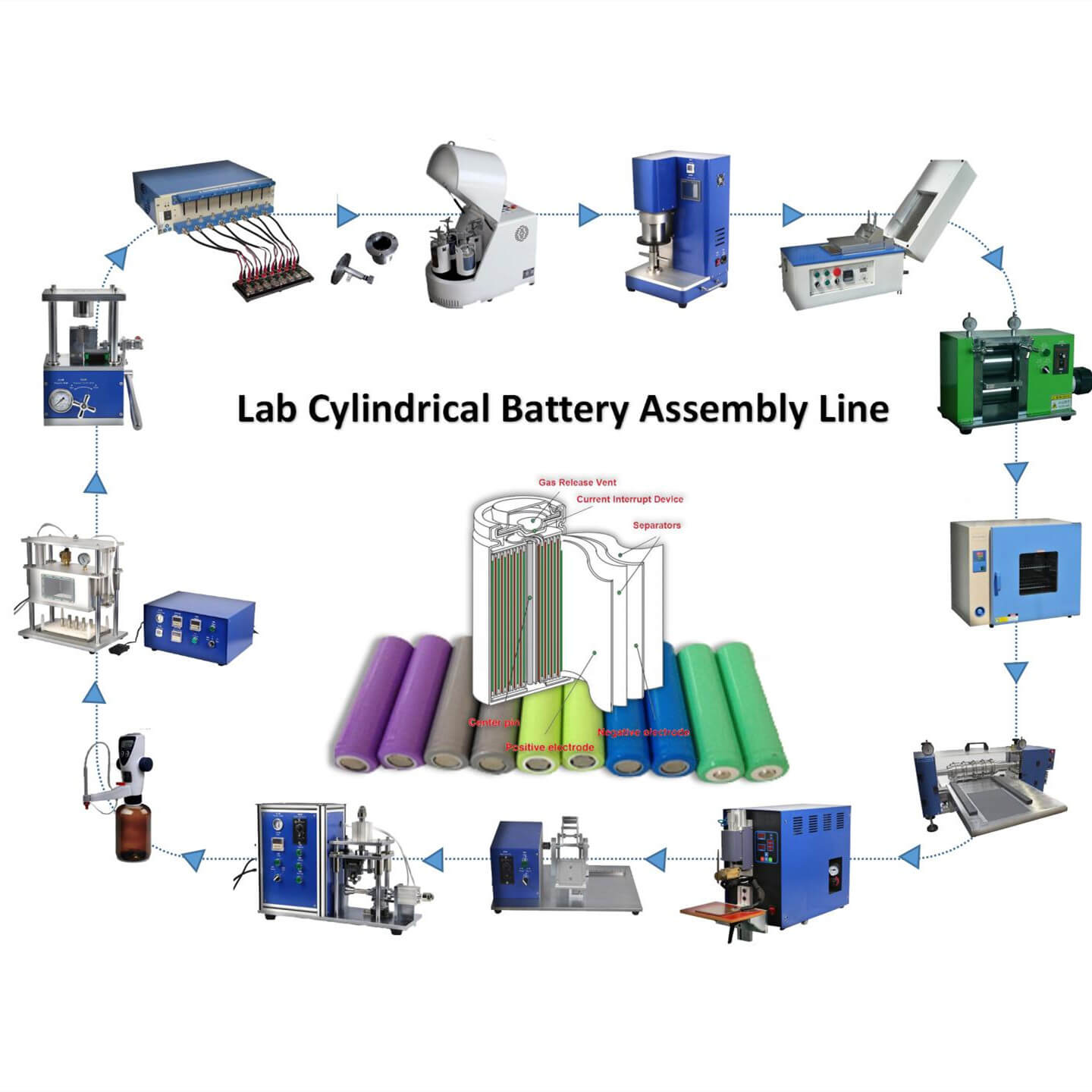

18650 Cylindrical Cell Lab Assembly Line For Lab Research

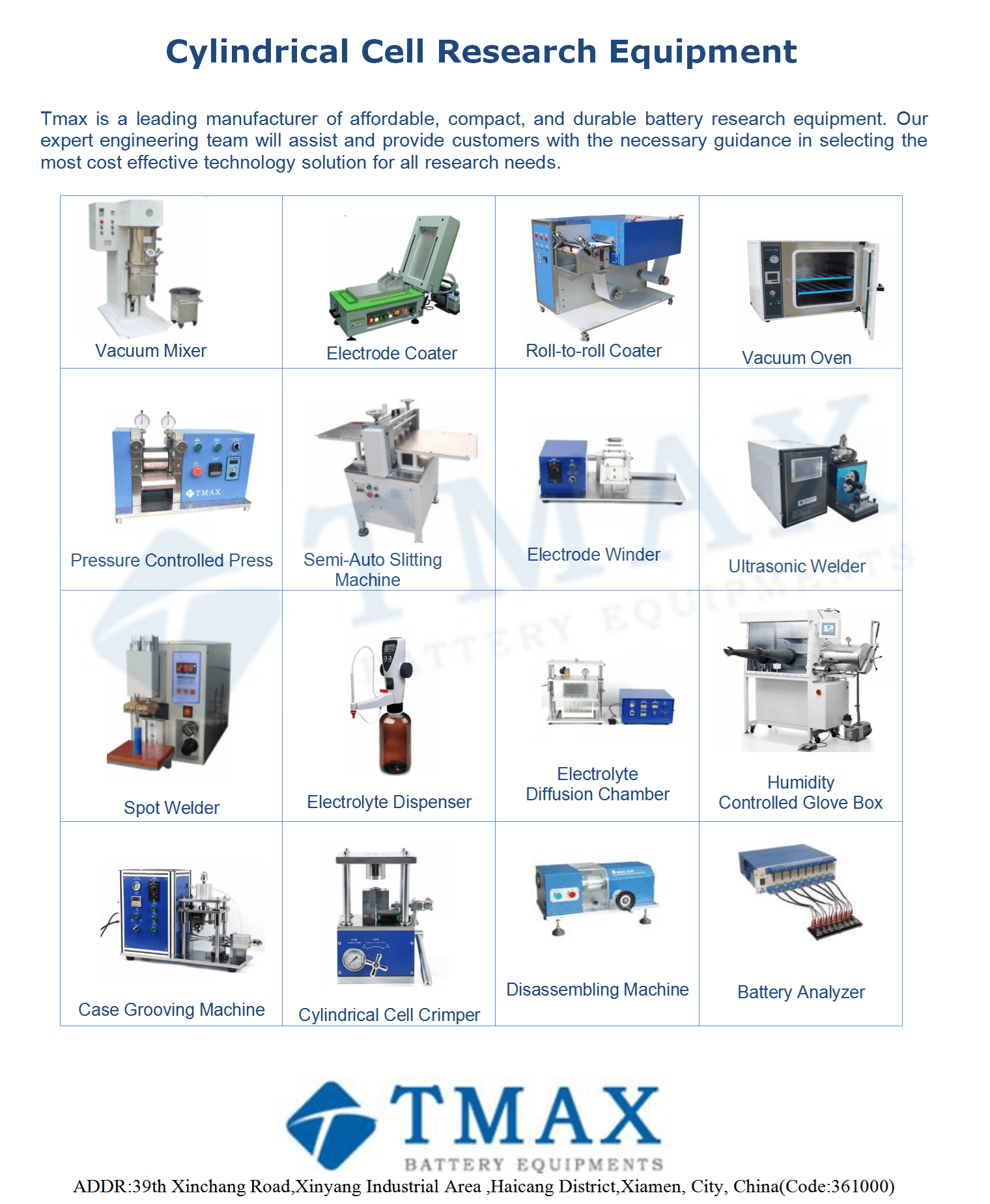

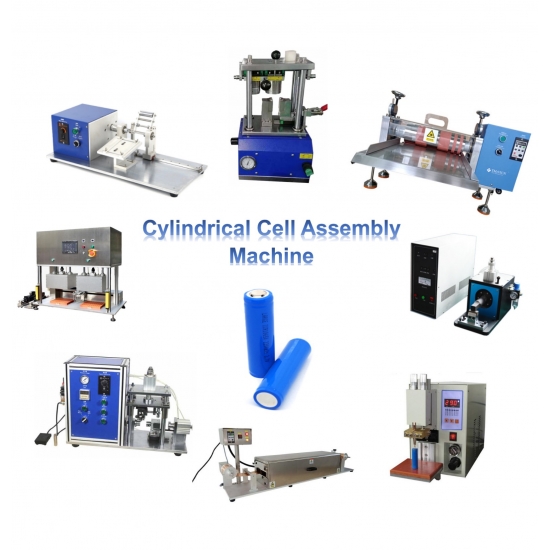

Related Machine for Cylindrical Cell Making

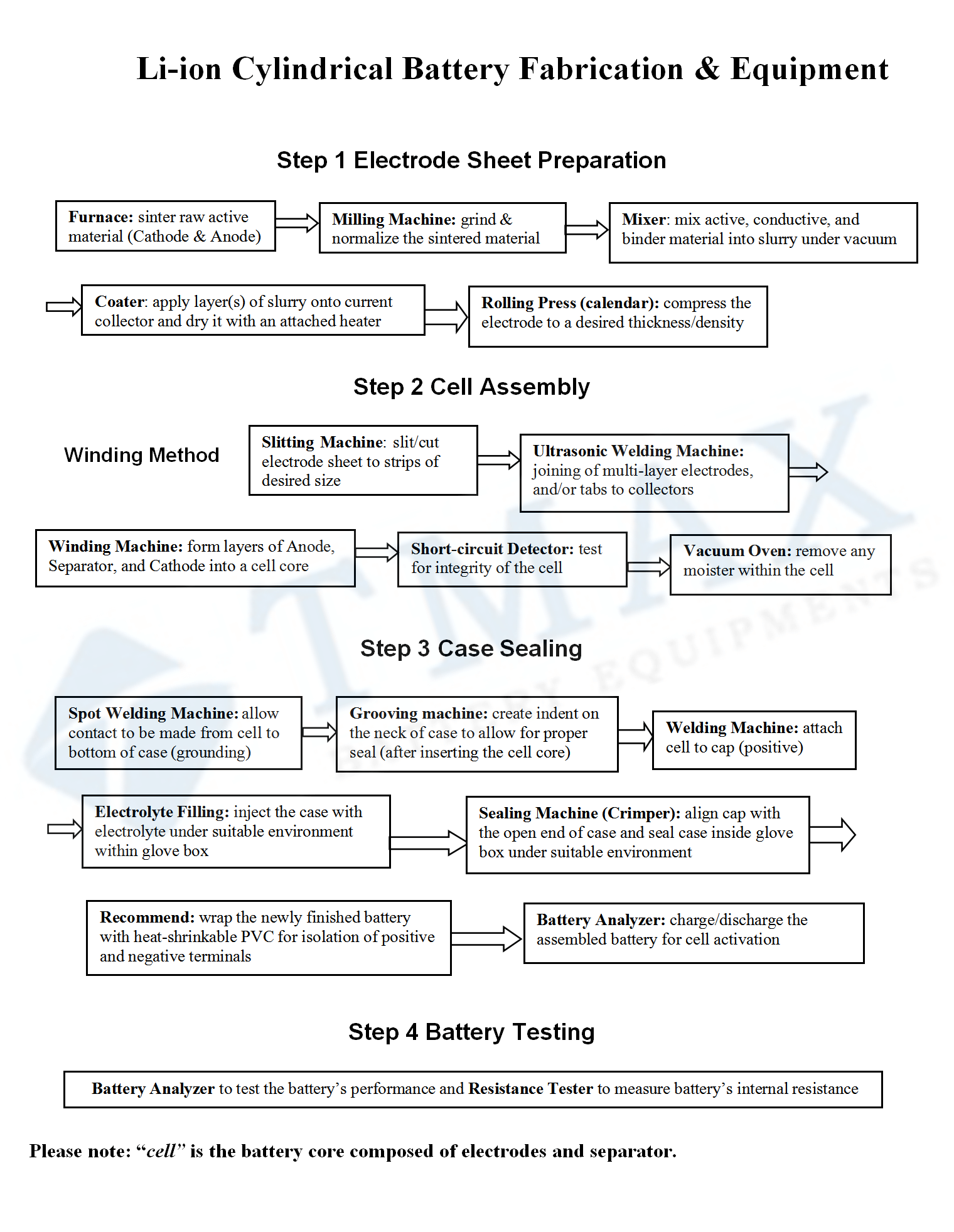

Process |
Machine |
Power Processing |
1.Tube Furnace 2.Muffle Furnace |
Power Grinding |
Planetary Ball Mill |
Vacuum Mixing |
1.Compact Dual-Shaft Planetary Vacuum Mixer Machine 2.Slurry Vacuum Mixer |
Electrode Coating |
Lab Compact Heat Film Vacuum Coating Machine with Doctor Blade |
Roll Press |
Heat Rolling Press Machine |
Sheet Cutting |
Automatic Slitting Machine |
Vacuum Drying |
1.Vacuum Drying Oven 2. Air Convection Drying Oven |
Ultrasonic Welding |
Ultrasonic Spot Welding Machine |
Electrode Winding |
Battery Electrode Winding Machine |
Spot Welding |
1.Precise Micro Spot Welding Machine 2. AC Spot Welding Machine 3. DC Spot Welding Machine |
Grooving |
Grooving Machine |
Glove Box |
Vacuum Glove Box With H2O & O2 Purification System |
Electrolyte Injection |
Electrolyte Filling Machine |
Electrode Diffusion |
Electrolyte Diffusion&Degassing Machine |
Hydraulic Sealing |
Cylindrical Cases Sealing Machine |
Battery Analyzer |
5V 3A6A 8Channel Battery Testing Machine |
Process |
Item |
Product Name |
Description |
Web Address |
|
||||
Power Processing |
Furnace |
Muffle Furnace |
Temerature Range:1200C-1600C |
|
Tube Furnace |
Temerature Range:1200C-1800C 1. Single Zone 2. Double-Zone 3. Three-Zone 4. Vertical |
|||
Power Grinding |
Ball Mill |
Planetary Ball Mill |
Vertical Semicircular Planetary Ball Mill |
|
Vertical Square Planetary Ball Mill |
||||
Air Cooling Planetary Ball Mill |
||||
Vacuum Mixing |
Mixer |
Small Lab Mixer |
Small Slurry Vacuum Mixer With Two Containers (150 & 500ml) |
|
Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container |
||||
Electrode Coating |
Electrode Coating Machine |
Electric Heat Film Coating Machine with Dryer |
Optional Coating Size Heat Film Coating Machine |
|
Roll press |
Electrode Rolling Press Machine |
Heat Roll Press Machine For Lithium Battery Production |
Roller Size:
100mm Dia. x 100mm W
100mm Dia. x 200mm W
100mm Dia. x 300mm W
100mm Dia. x 400mm W
(Rolling size can be customized)
|
|
Sheet Cutting |
Slitting Machine |
Battery Electrode Roll Slitting Machine |
Slitting width: 20-500mm
Slitting thickness: 100-300um
|
|
Vacuum Drying |
Dying Machine |
100-300°C Convection Drying Oven With Digital Temperature Controller |
Temperature range:100-300℃ |
|
25L Digital Vacuum Ovens (12x12x11" ) With High Temperature Controller & Inner Chamber |
Temperature range:RT+10~250 C |
|||
Ultrasonic Welding |
Ultrasonic Spot Welder |
Al Tab Ni Tag Ultrasonic Welding Machine |
2000W, 40kHz, max.40 Layers
3000W, 40kHz, max.60 Layers
|
|
Electrode Winding |
Winding Machine |
Semi-Auto Winding Machine |
Suitable battery size:Less than Φ35*L90mm, or according to your requirement |
|
Spot Welding |
Spot Welding Machine |
Precise Micro Spot Welder |
Welding Thickness: 0.03 - 0.25mm
Welding Current: 2500A
|
|
5000A/8000A Pneumatic Inverter DC Spot Welding Machine |
Maximum Output Short Circuit Current:5000A or 8000A
Welding Thickness: Maximum thickness of parallel welding:0.03mm~0.5mm
|
|||
AC Plus Pneumatic Spot Welding Machine |
Welding Thickness:
0.03~0.2mm
Output Maximum Short Circuit Current: 3000A
|
https://www.battery-equipments.com/ac-pulse-pneumatic-spot-welder-welding-machine_p638.html |
||
Groving |
Groving Machine |
Laboratory 18650,26650,Etc Cylindrical Cell Grooving Machine |
Grooving depth: 1.2~2.0mm
Grooving height: 1.1~1.5mm
Accuracy:±0.1mm
Productivity: 400 grooving /hr
|
https://www.battery-equipments.com/18650-26650-and-32650-cell-semi-auto-grooving-machine_p260.html |
Glove Box |
Vacuum Glove Box |
Single-Side(1200×750mm) Vacuum Glove Box With H2O & O2 Purification System |
Environment of Box inside: H2O <1 ppm (20°C/68 ℉, 1 atm)
O2 <1 ppm (20°C/68 ℉, 1 atm)
Structure: Integrated structure (Purification System integrated under the box)
|
|
Electrolyte Injection |
Electrolyte Filling Machine |
Laboratory Small Electrolyte Filling Machine For Li-Ion Battery |
Injecting range: 0-50ml |
|
Cylinder Cell Electrolyte Filling Pump System With Electronic Control Box |
Speed: 1-800 rpm
Filling range: 0-2.4ml adjustable
|
https://www.battery-equipments.com/single-head-battery-electrolyte-filling-machine_p162.html |
||
Electrode Diffusion |
Electrode Diffusion Machine |
Electrolyte Diffusion & Degassing Chamber |
Product Dimensions:
1. Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H)
2. Control Unit: 460mm(L) x 220mm(W) x 340mm(H)
|
|
Hydraulic Sealing |
Hydraulic Sealing Machine |
Hydraulic Sealing Machine For Cylindrical Case |
Crimping Dies: Six standard die selectable: CR123 /18650 / 26650 / 32650 / 50100 / AA /AAA |
|
Battery Analysis |
Battery Tester |
5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment |
Current: Range: 12mA – 6000mA
Voltage: Range: 10mV-5Vfor charging, 2.5V-5Vfor discharging
|
