Blade Coater: Design, Functionality, and Applications

A blade coater is a type of coating machine used to apply a uniform layer of material (such as slurries, inks, or adhesives) onto a substrate. In the context of battery manufacturing, blade coaters are widely employed to deposit active material slurries (e.g., cathode or anode slurries) onto metal foils (e.g., aluminum for cathodes, copper for anodes).

Blade coaters are known for their simplicity, costeffectiveness, and ability to produce consistent coatings across large areas. Below is a detailed overview of blade coaters, including their design, functionality, advantages, challenges, and applications.

●1. What Is a Blade Coater?

A blade coater uses a sharpedged blade positioned above the moving substrate to spread a thin layer of liquid or slurry uniformly. The gap between the blade edge and the substrate determines the thickness of the applied coating. This method is particularly effective for applying coatings with high viscosity and achieving precise control over thickness.

Key features of blade coaters:
Simple mechanical design.
Adjustable parameters such as blade angle, pressure, and substrate speed.
Suitable for a wide range of materials and applications.

●2. Key Components of a Blade Coater

The main components of a blade coater include:

A. Coating Blade
A sharpedged blade made from materials like stainless steel or ceramic to resist wear and corrosion.
Positioned at a controlled distance from the substrate to regulate coating thickness.

B. Substrate Handling System
Mechanism to move the substrate (e.g., metal foil) under the blade at a controlled speed.

C. Slurry Delivery System
Pumps and pipes that supply the slurry to the coating area.
Ensures consistent flow rate and pressure.

D. Drying System
Ovens or dryers to remove solvents from the coated layer after application.

E. Thickness Measurement System
Sensors (e.g., laser or ultrasonic) to measure the thickness of the coated layer in realtime.

F. Cleaning System
Devices to clean the blade and other components between batches to avoid contamination.

●3. Operation of a Blade Coater

The operation of a blade coater involves the following steps:

1. Material Preparation:
Active material slurry is prepared and delivered to the coating area.

2. Coating Process:
The substrate (e.g., metal foil) moves under the blade.
The blade spreads the slurry evenly across the substrate, controlling the thickness based on the gap between the blade and the substrate.

3. Drying Process:
The coated substrate passes through a drying oven to evaporate solvents, leaving behind a solid layer of active material.

4. Output:

The dried coated substrate is collected and sent to the next stage of production (e.g., calendering).

Wire Rod Coating Machine

●4. Importance of Blade Coaters in Battery Production

Blade coaters play a critical role in battery manufacturing by ensuring uniform deposition of active material slurries onto metal foils. This process affects several key parameters:

A. Electrode Thickness
Uniform coating ensures consistent electrode thickness, which is essential for achieving desired energy density and capacity.

B. Material Distribution
Proper coating ensures even distribution of active materials, improving electrochemical performance.

C. Surface Quality
Smooth and defectfree coatings enhance mechanical integrity and reduce the risk of delamination.

D. Cost Efficiency
Precise coating minimizes material waste and reduces production costs.

●5. Applications of Blade Coaters

A. LithiumIon Batteries
Used to coat cathodes (e.g., NMC, LFP, NCA) and anodes (e.g., graphite, silicon) onto aluminum and copper foils.

B. Research and Development
Ideal for smallscale experiments and prototyping in labs.

C. Flexible Electronics
Used in the production of flexible circuits, sensors, and displays.

D. Photovoltaics
Applied in the manufacturing of solar cells to deposit thin layers of functional materials.

E. Packaging
Used to apply barrier coatings, adhesives, or decorative finishes onto films and papers.

●6. Advantages of Blade Coaters

| Advantage | Description |
|||
| Simplicity | Straightforward design and operation, making it easy to use. |
| CostEffectiveness | Lower initial investment compared to more complex coating systems. |
| Uniformity | Provides consistent coating thickness and material distribution. |
| Versatility | Suitable for a wide range of materials and applications. |
| Scalability | Can be scaled up for industrial production with appropriate modifications. |

●7. Challenges in Using Blade Coaters

A. Coating Uniformity
Achieving consistent thickness and weight distribution can be challenging, especially for thick coatings or viscous slurries.

B. Solvent Management
Efficient removal of solvents during drying is critical to avoid defects or damage to the coated layer.

C. Material Contamination
Crosscontamination between batches must be avoided through thorough cleaning of the blade and system.

D. Speed Limitations
Blade coaters may have lower throughput compared to advanced systems like slot die coaters.

E. Maintenance Requirements
Regular maintenance is necessary to ensure proper functioning of the blade, pumps, and ovens.

●8. Types of Blade Coaters

A. Fixed Blade Coater
Uses a stationary blade positioned at a fixed distance from the substrate.
Advantages: Simplicity and low cost.

B. Adjustable Blade Coater
Allows adjustment of the blade angle, pressure, and gap size to optimize coating performance.
Advantages: Greater flexibility and precision.

C. Rotating Blade Coater
Uses a rotating blade to spread the slurry more effectively.
Advantages: Improved uniformity and reduced streaking.

●9. Market Trends and Future Outlook

A. Increasing Demand for LithiumIon Batteries
Growth in electric vehicles (EVs), renewable energy storage, and consumer electronics drives demand for efficient coating technologies.

B. Emerging Technologies
Development of new blade designs and materials to improve performance and durability.

C. Automation and Digitalization
Integration of sensors and control systems to enhance precision and data collection.

D. Sustainability
Focus on reducing solvent emissions and improving recyclability in battery manufacturing.

●10. Conclusion

Blade coaters are versatile and costeffective tools for applying uniform coatings in battery production and other industries. While they may not match the precision or throughput of advanced systems like slot die coaters, they remain valuable for applications where simplicity and affordability are priorities.

If you're planning to acquire or operate a blade coater, carefully consider factors such as material compatibility, precision requirements, scalability, and cost. For further details or assistance, feel free to ask!

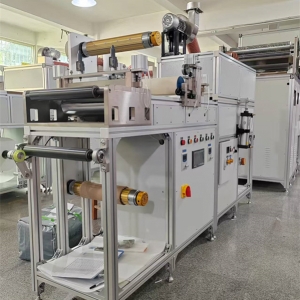

Slot Die Coater Roll to Roll Coating Machine
