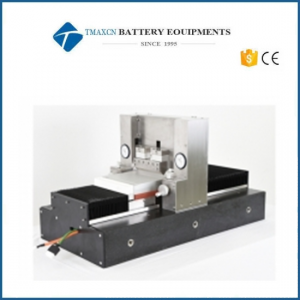

Slot Die Coater
A slot die coater is a highly advanced coating system used to apply precise and uniform layers of liquid or slurry onto a substrate. In the context of battery manufacturing, slot die coaters are widely employed to deposit active material slurries (e.g., cathode or anode slurries) onto metal foils (e.g., aluminum for cathodes, copper for anodes).
Slot die coaters are known for their ability to achieve high precision, excellent uniformity, and scalability, making them indispensable in modern industrial production. Below is a detailed overview of slot die coaters, including their design, functionality, advantages, challenges, and applications.
●1. What Is a Slot Die Coater?
A slot die coater uses a narrow slot orifice to extrude a controlled amount of liquid or slurry onto a moving substrate. The gap between the slot die and the substrate determines the thickness of the applied coating. This method ensures precise control over coating thickness, uniformity, and material distribution.
Key features of slot die coaters:
High precision and consistency.
Suitable for both thin and thick coatings.
Versatile for a wide range of materials and applications.
●2. Key Components of a Slot Die Coater
The main components of a slot die coater include:
A. Slot Die Head
A precisionengineered nozzle with a narrow slot that controls the flow of the coating material.
Made from materials like stainless steel or ceramic to resist wear and corrosion.
B. Substrate Handling System
Mechanism to move the substrate (e.g., metal foil) under the slot die at a controlled speed.
C. Slurry Delivery System
Pumps and pipes that supply the slurry to the slot die head.
Ensures consistent flow rate and pressure.
D. Drying/Curing System
Ovens or dryers to remove solvents from the coated layer after application.
E. Thickness Measurement System
Sensors (e.g., laser or ultrasonic) to measure the thickness of the coated layer in realtime.
F. Cleaning System
Devices to clean the slot die and other components between batches to avoid contamination.
●3. Operation of a Slot Die Coater
The operation of a slot die coater involves the following steps:
1. Material Preparation:
Active material slurry is prepared and delivered to the slot die head.
2. Coating Process:
The substrate (e.g., metal foil) moves under the slot die.
The slurry is extruded through the narrow slot onto the substrate, forming a uniform layer.
3. Drying Process:
The coated substrate passes through a drying oven to evaporate solvents, leaving behind a solid layer of active material.
4. Output:
The dried coated substrate is collected and sent to the next stage of production (e.g., calendering).
●4. Importance of Slot Die Coaters in Battery Production
Slot die coaters play a critical role in battery manufacturing by ensuring precise deposition of active material slurries onto metal foils. This process affects several key parameters:
A. Electrode Thickness
Uniform coating ensures consistent electrode thickness, which is essential for achieving desired energy density and capacity.
B. Material Distribution
Proper coating ensures even distribution of active materials, improving electrochemical performance.
C. Surface Quality
Smooth and defectfree coatings enhance mechanical integrity and reduce the risk of delamination.
D. Cost Efficiency
●5. Applications of Slot Die Coaters
A. LithiumIon Batteries
Used to coat cathodes (e.g., NMC, LFP, NCA) and anodes (e.g., graphite, silicon) onto aluminum and copper foils.
B. SolidState Batteries
Adapted for applying solid electrolyte layers onto substrates.
C. Flexible Electronics
Used in the production of flexible circuits, displays, and sensors.
D. Photovoltaics
Applied in the manufacturing of solar cells to deposit thin layers of functional materials.
E. Packaging
Used to apply barrier coatings, adhesives, or decorative finishes onto films and papers.
●6. Advantages of Slot Die Coaters
| Advantage | Description |
|||
| High Precision | Achieves extremely uniform coatings with precise thickness control. |
| Scalability | Suitable for both smallscale prototyping and largescale industrial production. |
| Versatility | Compatible with a wide range of materials and viscosities. |
| Efficiency | Minimizes material waste and solvent usage compared to other methods. |
| AutomationFriendly | Easily integrated with advanced sensors and control systems for realtime monitoring. |
●7. Challenges in Using Slot Die Coaters
A. Initial Cost
Slot die coaters can be expensive due to their complex design and precision requirements.
B. Maintenance
Regular maintenance is necessary to ensure proper functioning of the slot die, pumps, and ovens.
C. Solvent Management
Efficient removal of solvents during drying is critical to avoid defects or damage to the coated layer.
D. Material Compatibility
Certain materials or slurries may require specific adjustments to achieve optimal results.
E. Complexity
Advanced slot die coaters may require skilled operators for setup, operation, and troubleshooting.
●8. Types of Slot Die Coaters
A. SingleLayer Slot Die Coater
Applies a single layer of material onto the substrate.
Commonly used for simple coating processes.
B. MultiLayer Slot Die Coater
Capable of applying multiple layers simultaneously with precise control over each layer's thickness.
Ideal for advanced applications such as solidstate batteries or multifunctional coatings.
C. RolltoRoll Slot Die Coater
Integrated into rolltoroll systems for continuous highthroughput production.
Widely used in largescale battery manufacturing.
●9. Market Trends and Future Outlook
A. Increasing Demand for LithiumIon Batteries
Growth in electric vehicles (EVs), renewable energy storage, and consumer electronics drives demand for efficient slot die coating technologies.
B. Emerging Technologies
Development of new slot die designs and materials to improve performance and durability.
C. Automation and Digitalization
Adoption of Industry 4.0 technologies (e.g., IoT, AI, robotics) improves precision, efficiency, and data collection in slot die processes.
D. Sustainability
Focus on reducing solvent emissions and improving recyclability in battery manufacturing.
●10. Conclusion
