Battery Manufacturing Line
A battery manufacturing line is a comprehensive system designed to produce batteries efficiently, reliably, and at scale. It integrates various stages of battery production, from raw material preparation to final assembly and testing. Below is a detailed overview of the components, processes, and innovations in battery manufacturing lines.
●1. Overview of Battery Manufacturing Lines
Battery manufacturing lines are highly automated systems that combine precision engineering, advanced materials, and cuttingedge technology to produce batteries for a wide range of applications, including electric vehicles (EVs), consumer electronics, energy storage systems (ESS), and industrial use.
Key characteristics of battery manufacturing lines:
High Throughput: Capable of producing large quantities of batteries with minimal defects.
Precision Control: Ensures consistency in thickness, alignment, sealing, and other critical parameters.
Modular Design: Allows flexibility to adapt to different battery types (e.g., cylindrical, prismatic, pouch) and chemistries (e.g., lithiumion, solidstate).
●2. Key Stages in Battery Manufacturing Lines
The battery manufacturing process can be divided into several key stages:
A. Material Preparation
This stage involves preparing the active materials, binders, conductive additives, and solvents required for the electrodes.
#Processes:
Mixing: Homogenizing the slurry mixture of active materials, binders, and conductive agents.
Example: Planetary mixers, highshear mixers.
Coating: Applying the slurry onto metal foils (aluminum for cathodes, copper for anodes).
Example: Slot die coaters, doctor blade coaters.
Drying: Removing solvents from the coated electrodes to achieve uniform thickness.
Example: Tunnel dryers, vacuum dryers.
Calendering: Compressing the dried electrodes to increase density and improve conductivity.
Example: Rolltoroll calenders.
B. Electrode Processing
This stage focuses on cutting, shaping, and tab welding the electrodes.
#Processes:
Cutting: Cutting electrodes into specific dimensions based on cell design.
Example: Laser cutting machines, punch cutters.
Tab Welding: Attaching current collectors (tabs) to the electrodes for electrical connections.
Example: Ultrasonic welding, laser welding.
C. Cell Assembly
This stage involves assembling the electrodes, separator, and casing into a complete cell.
#Processes:
Stacking/Lamination: Assembling cathode, separator, and anode layers into a stacked or wound configuration.
Example: Automated stacking machines, winding machines.
Casing: Placing the electrode stack into a metal casing (prismatic cells) or pouch (pouch cells).
Example: Prismatic casing machines, pouch sealing machines.
Sealing: Hermetically sealing the casing or pouch to prevent electrolyte leakage.
Example: Laser welding machines, heat sealing machines.
D. Electrolyte Filling
This stage involves injecting the electrolyte solution into the cell under controlled conditions.
#Processes:
Filling: Injecting the electrolyte while ensuring complete wetting of the separator and electrodes.
Example: Vacuumassisted filling systems, precision dispensing machines.
Formation: Charging and discharging the battery to activate materials and form the solidelectrolyte interphase (SEI) layer.
E. Formation and Testing
This final stage evaluates the performance and safety of the battery.
#Processes:
Formation: Activating the battery through controlled charging and discharging cycles.
Example: Formation chambers, cycling testers.
Testing: Evaluating key parameters such as capacity, internal resistance, cycle life, and safety.
Example: Battery analyzers, thermal abuse testers.
A. Cylindrical Battery Manufacturing Lines
Designed for manufacturing cylindrical cells (e.g., 18650, 21700).
Key processes include winding, canning, and sealing.
B. Prismatic Battery Manufacturing Lines
Used for flat, rectangular cells commonly found in EVs and ESS.
Key processes include stacking, casing, and laser welding.
C. Pouch Battery Manufacturing Lines
Produces softpack cells used in consumer electronics.
Key processes include lamination, pouch sealing, and electrolyte filling.
●4. Innovations in Battery Manufacturing Lines
A. Automation
Robots and collaborative robots (cobots) perform repetitive tasks with high precision.
Conveyor systems and AGVs (autonomous guided vehicles) streamline material handling.
B. Digitalization
IoTenabled machines provide realtime data monitoring and predictive maintenance.
AIdriven algorithms optimize process parameters and reduce defects.
C. Sustainable Practices
Ecofriendly designs minimize waste and energy consumption during production.
Recycling machines recover valuable materials from spent batteries.
D. Modular Design
Modular manufacturing lines allow for easy reconfiguration to accommodate different battery types and chemistries.
E. SolidState Battery Manufacturing
Development of manufacturing lines for solidstate batteries, which require new techniques for electrolyte deposition and cell assembly.
●5. Market Trends and Future Outlook
A. Growing Demand for EVs
The rapid adoption of electric vehicles drives demand for highthroughput battery manufacturing lines capable of producing large quantities of prismatic and pouch cells.
B. Gigafactories
Largescale battery manufacturing facilities (gigafactories) rely on highly automated and scalable manufacturing lines to meet global demand.
C. Customization
Manufacturers are increasingly seeking customized manufacturing lines tailored to specific chemistries, formats, and applications.
D. Advanced Materials
Research into new cathode, anode, and electrolyte materials (e.g., siliconbased anodes, solidstate electrolytes) requires specialized manufacturing equipment.
●6. Challenges in Battery Manufacturing Lines
A. Precision Requirements
Achieving submicron accuracy in electrode alignment and thickness control is challenging.
B. Cost
High initial investment in advanced machinery can be a barrier for smaller manufacturers.
C. Scalability
Balancing high throughput with quality control is difficult, especially for emerging battery technologies.
D. Safety
Ensuring safe handling of hazardous materials (e.g., electrolytes) during production is critical.
●7. Conclusion
Battery manufacturing lines are essential for meeting the growing demand for highperformance batteries across various industries. From material preparation to final testing, these lines integrate advanced technologies such as automation, digitalization, and sustainability to ensure efficient, reliable, and safe production.
- 2025-07-22
Xiamen Tmax Battery Equipments Limited was set up as a manufacturer in 1995, dealing with lithium battery equipments, technology, etc. We have total manufacturing facilities of around 200000 square foot and more than 230 staff. Owning a group of experie-nced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
A battery manufacturing line is a comprehensive system designed to produce batteries efficiently, reliably, and at scale. It integrates various stages of battery production, from raw material preparation to final assembly and testing. Below is a detailed overview of the components, processes, and innovations in battery manufacturing lines.
●1. Overview of Battery Manufacturing Lines
Battery manufacturing lines are highly automated systems that combine precision engineering, advanced materials, and cuttingedge technology to produce batteries for a wide range of applications, including electric vehicles (EVs), consumer electronics, energy storage systems (ESS), and industrial use.
Key characteristics of battery manufacturing lines:
High Throughput: Capable of producing large quantities of batteries with minimal defects.
Precision Control: Ensures consistency in thickness, alignment, sealing, and other critical parameters.
Modular Design: Allows flexibility to adapt to different battery types (e.g., cylindrical, prismatic, pouch) and chemistries (e.g., lithiumion, solidstate).
●2. Key Stages in Battery Manufacturing Lines
The battery manufacturing process can be divided into several key stages:
A. Material Preparation
This stage involves preparing the active materials, binders, conductive additives, and solvents required for the electrodes.
#Processes:
Mixing: Homogenizing the slurry mixture of active materials, binders, and conductive agents.
Example: Planetary mixers, highshear mixers.
Coating: Applying the slurry onto metal foils (aluminum for cathodes, copper for anodes).
Example: Slot die coaters, doctor blade coaters.
Drying: Removing solvents from the coated electrodes to achieve uniform thickness.
Example: Tunnel dryers, vacuum dryers.
Calendering: Compressing the dried electrodes to increase density and improve conductivity.
Example: Rolltoroll calenders.
B. Electrode Processing
This stage focuses on cutting, shaping, and tab welding the electrodes.
#Processes:
Cutting: Cutting electrodes into specific dimensions based on cell design.
Example: Laser cutting machines, punch cutters.
Tab Welding: Attaching current collectors (tabs) to the electrodes for electrical connections.
Example: Ultrasonic welding, laser welding.
C. Cell Assembly
This stage involves assembling the electrodes, separator, and casing into a complete cell.
#Processes:
Stacking/Lamination: Assembling cathode, separator, and anode layers into a stacked or wound configuration.
Example: Automated stacking machines, winding machines.
Casing: Placing the electrode stack into a metal casing (prismatic cells) or pouch (pouch cells).
Example: Prismatic casing machines, pouch sealing machines.
Sealing: Hermetically sealing the casing or pouch to prevent electrolyte leakage.
Example: Laser welding machines, heat sealing machines.
D. Electrolyte Filling
This stage involves injecting the electrolyte solution into the cell under controlled conditions.
#Processes:
Filling: Injecting the electrolyte while ensuring complete wetting of the separator and electrodes.
Example: Vacuumassisted filling systems, precision dispensing machines.
Formation: Charging and discharging the battery to activate materials and form the solidelectrolyte interphase (SEI) layer.
E. Formation and Testing
This final stage evaluates the performance and safety of the battery.
#Processes:
Formation: Activating the battery through controlled charging and discharging cycles.
Example: Formation chambers, cycling testers.
Testing: Evaluating key parameters such as capacity, internal resistance, cycle life, and safety.
Example: Battery analyzers, thermal abuse testers.

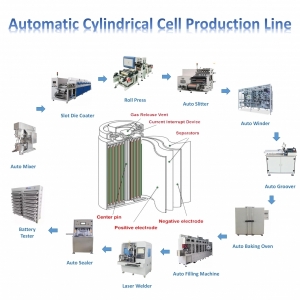

Cylindrical Cell Production Line
A. Cylindrical Battery Manufacturing Lines
Designed for manufacturing cylindrical cells (e.g., 18650, 21700).
Key processes include winding, canning, and sealing.
B. Prismatic Battery Manufacturing Lines
Used for flat, rectangular cells commonly found in EVs and ESS.
Key processes include stacking, casing, and laser welding.
C. Pouch Battery Manufacturing Lines
Produces softpack cells used in consumer electronics.
Key processes include lamination, pouch sealing, and electrolyte filling.
●4. Innovations in Battery Manufacturing Lines
A. Automation
Robots and collaborative robots (cobots) perform repetitive tasks with high precision.
Conveyor systems and AGVs (autonomous guided vehicles) streamline material handling.
B. Digitalization
IoTenabled machines provide realtime data monitoring and predictive maintenance.
AIdriven algorithms optimize process parameters and reduce defects.
C. Sustainable Practices
Ecofriendly designs minimize waste and energy consumption during production.
Recycling machines recover valuable materials from spent batteries.
D. Modular Design
Modular manufacturing lines allow for easy reconfiguration to accommodate different battery types and chemistries.
E. SolidState Battery Manufacturing
Development of manufacturing lines for solidstate batteries, which require new techniques for electrolyte deposition and cell assembly.
●5. Market Trends and Future Outlook
A. Growing Demand for EVs
The rapid adoption of electric vehicles drives demand for highthroughput battery manufacturing lines capable of producing large quantities of prismatic and pouch cells.
B. Gigafactories
Largescale battery manufacturing facilities (gigafactories) rely on highly automated and scalable manufacturing lines to meet global demand.
C. Customization
Manufacturers are increasingly seeking customized manufacturing lines tailored to specific chemistries, formats, and applications.
D. Advanced Materials
Research into new cathode, anode, and electrolyte materials (e.g., siliconbased anodes, solidstate electrolytes) requires specialized manufacturing equipment.
●6. Challenges in Battery Manufacturing Lines
A. Precision Requirements
Achieving submicron accuracy in electrode alignment and thickness control is challenging.
B. Cost
High initial investment in advanced machinery can be a barrier for smaller manufacturers.
C. Scalability
Balancing high throughput with quality control is difficult, especially for emerging battery technologies.
D. Safety
Ensuring safe handling of hazardous materials (e.g., electrolytes) during production is critical.
●7. Conclusion
Battery manufacturing lines are essential for meeting the growing demand for highperformance batteries across various industries. From material preparation to final testing, these lines integrate advanced technologies such as automation, digitalization, and sustainability to ensure efficient, reliable, and safe production.
If you're involved in battery manufacturing or planning to invest in manufacturing lines, consider factors such as line configuration, automation level, and technological advancements. For further details or assistance, feel free to ask!
HOT PRODUCTS
-
Automatic Cylinderical Battery Electrode Winding Machine
Read More
-
100-200L Double Planetary Vacuum Mixing Machine for Lithium Battery Slurry
Read More
-
Large Heating Roller Press Machine Calender For Li ion Battery Production Line
Read More
-
Large 3 Rollers Battery Electrode Film Intermittent Coating Machine for Pilot Production Line
Read More
-
512 Channel 5V3A Battery Grading Machine/Battery Charge Discharge Machine Tester
Read More
David@battery-equipments.com
