Lab Desktop Manual Lithium Battery Stacking Machine For Pouch Cell
  • 2021-04-02

Specifications

1 TMAX-DP-200 Battery stacking machine is a semi-automatic stacking machine. It is an ideal tool for stacking multiple layers of positive & negative electrode and separator for pouch cell.

2 The pouch cell stacking machine is used for lithium battery stacking process, put the cathode, anode electrode and battery separator Z shaped lamination.


Model

Polymer Battery Stacking Machine  TMAX-DP-200

Voltage supply

AC 110v-220V Customized by requirements, 50HZ±10%

Power

150W

Warranty

Two Years limited warranty with lifetime support

Stacking Layer Length

L(0-200)mm, W(0-200)mm

Max separator feeding diameter

Φ250mm

Fixed travel distance

400mm

Travel cycle

1 - 9999 cycles

Air supply

0.25-0.55MPa (40 - 80 psi)

Machine dimension(L*W*H)

650*400*700mm

Controller dimension(L*W*H)

200*300*380mm

Weight

45kg

Package size for stacking machine

670*750*435mm

Package size for control box

480*340*525mm

pouch cell stacking machine

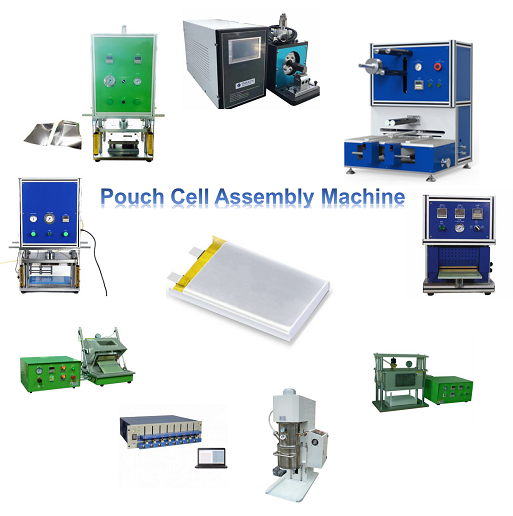

pouch cell assembly machine
