Lab Roll To Roll Heat Roller Press Machine For Lithium Battery Electrode Making
  • 2021-04-02

Specification

1 TMAX-Windroll Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C. It's an ideal machine for Lab Pouch Cell R&D.


Model

Roll to Roll Hot Roller Press Machine  TMAX-Windroll

Source voltage

AC 110V-220V Customized, 50HZ

Power

900W

Warranty

Two Years limited warranty with lifetime support

Roller temperature

RT-130℃, adjustable and digital display

 Roller diameter

2 - Φ96mm

Roller surface hardness

HRC62

Roller finish degree

>0.8

Rolling press thickness

0-2mm, Adjustable

Working speed

0-40mm/s

Rolling press width

 Max 100mm(Customizable)

Dimension(L*W*H)

810*710*360mm

Weight

About 90kg

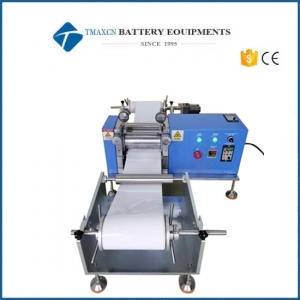

battery calender machine

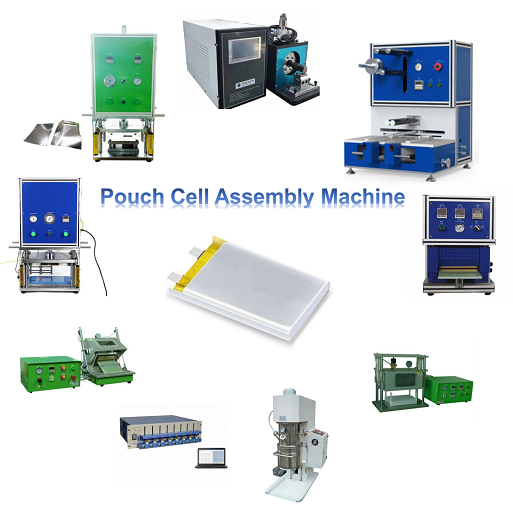

pouch cell assembly line
